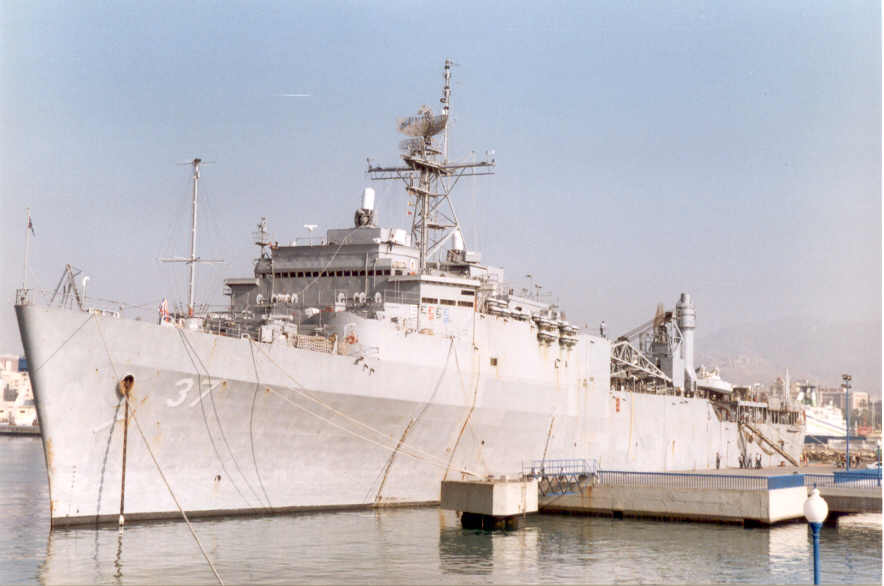

LSD-37 Portland

Country:  United States

Class, [Type]: Anchorage, [LSD].

Builder: General Dynamics, Quincy, Massachusetts, U.S.A.

Launch date: 20 December 1969.

Commission date: 03 October 1970.

Decommission date: 04 August 2003.

Displacement ( tons ): 8.600 standard, 13.700 full load.

Dimensions ( metres ): 168,6 x 25,6 x 6

Main machinery: 2 x Foster & Wheeler boilers, 2 x De Laval turbines ( 24.000 hp ), 2 shafts.

Speed ( knots ): 22.

Range ( miles ): 14.800 at 12 knots.

Complement: 374 ( 24 officers ).

Guns: 2 x GE/GD Vulcan Phalanx Mk15 CIWS 20mm.

Military lift: 366 soldiers ( 18 officers), 3 x LCU or 3 x LCAC or 18 x LCM6 or 9 x LCM8 or 50 x LVT; 1 x LCM 6 on deck; 2 x LCPL and 1 x LCVP. Carries 90 tons of aviation fuel.

Radar: Air: Lockheed SPS 40B/C; E/F bands, 320km range. Surface: Raytheon SPS 10; G banda. Navigation: Marconi LN66; I band. TACAN: URN25.

Countermeasures: Decoys: 4 x Loral Hycor SRBOC Mk36; chaff and flare dispensers; ESM: SLQ 32(V)1.

Callsign: NCBG ()

Comment: Has two cranes able to lift up to 50 tons. 4 ships of the class were involved in the Gulf War. Sunk as a target off the US east coast on April 26, 2004.

Awards (as of 04/08/2003):

Similar units:

 LSD38 Pensacola
