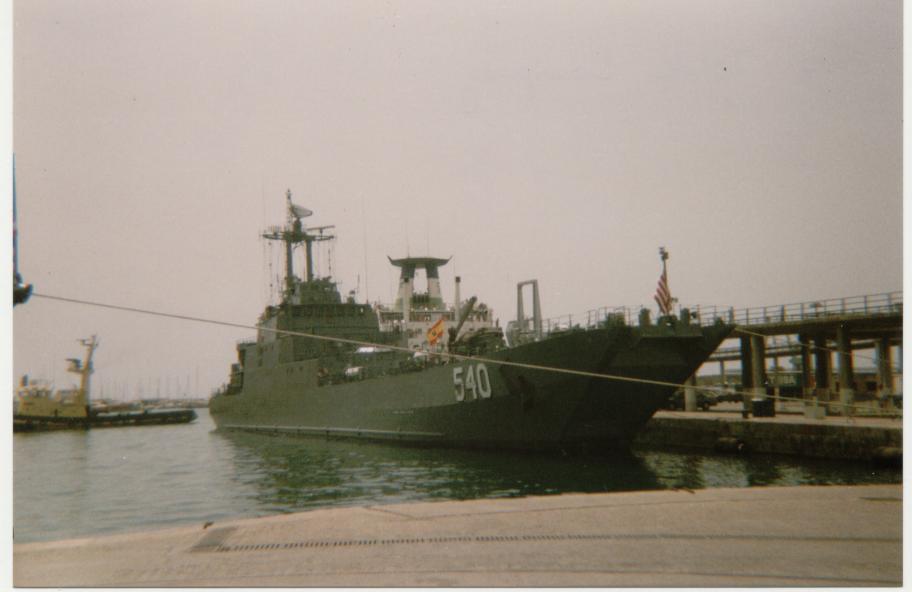

540 Teluk Lampung

Country:  Indonesia

Class, [Type]: Frosch I (Type 108), [LSM].

Builder: Peenewerft, Wolgast, Germany.

Launch date: 27 December 1977.

Commission date: 26 April 1994.

Displacement ( tons ): 1.950 full load.

Dimensions ( metres ): 98 x 11,1 x 2,8

Main machinery: 2 x Type 61B 16-cylinders diesels ( 12.000 hp ).

Speed ( knots ): 18.

Range ( miles ): 2.450 at 14 knots.

Complement: 42.

Guns: 1 x twin 37mm/63, 1 x single 37mm/63.

Mines: Can lay mines through doors situated at stern ( 40 mines max. ).

Military lift: 600 tons.

Radar: Air/Surface: 1 x MR-302 Rubka ( Strut curve ), F band; Navigation: 1 x TSR 333, I band.

Comment: Ex - Schwedt (636). This ship belonged to the former GDR, and was transferred, along with 12 other units of the same type, to the Indonesian Navy on August 25th 1993. This ship was damaged by heavy seas during transit in June 1994.

Similar units:

 531 Teluk Gilimanuk
 532 Teluk Celukan Bawang
 534 Teluk Berau
 536 Teluk Sibolga
 537 Teluk Manado
 538 Teluk Hading
 539 Teluk Parigi
 541 Teluk Jakarta
