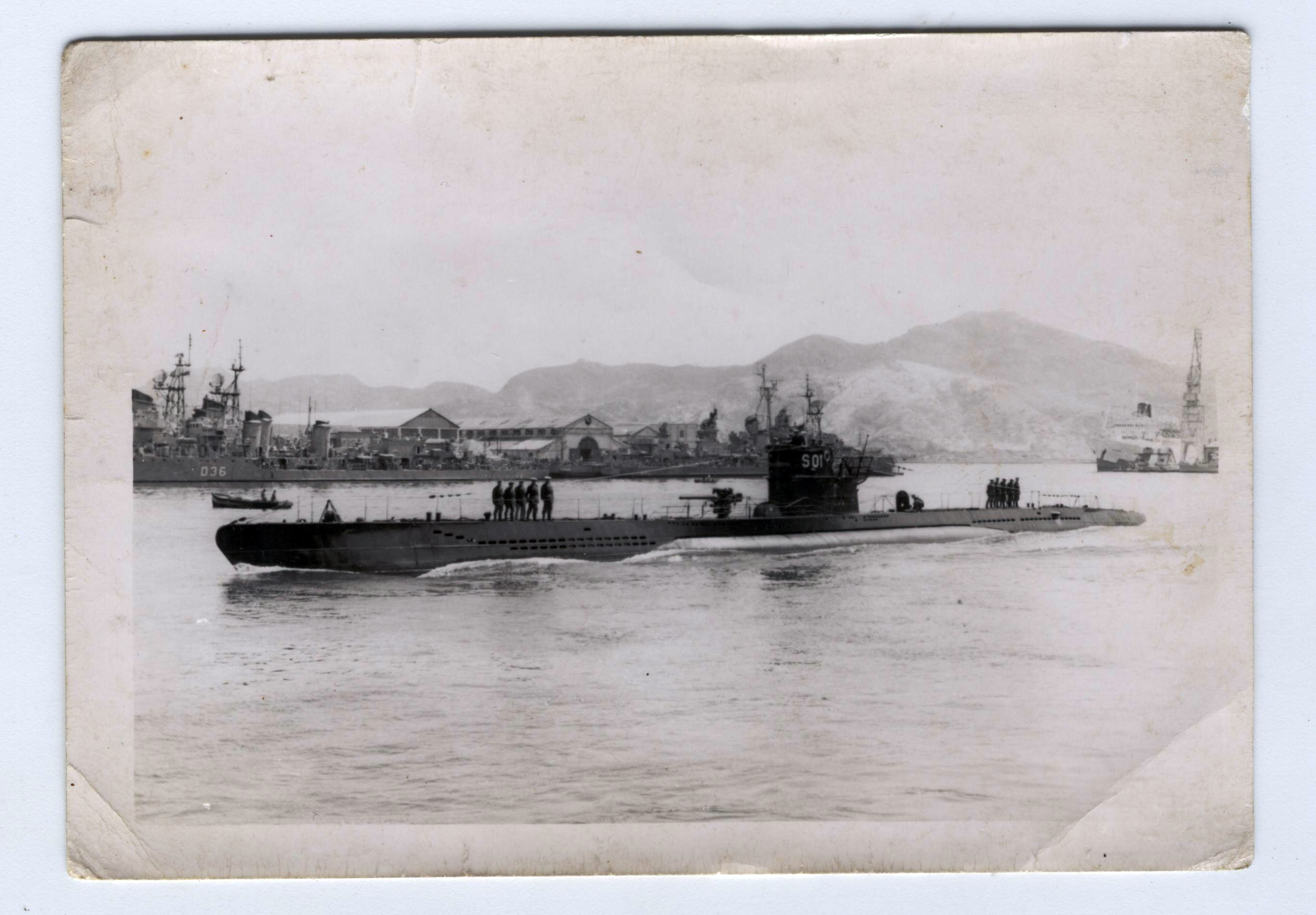

S-01

Country:  Spain

Class, [Type]: Type VII-C, [SS].

Builder: Blohm + Voss, Hamburg, Germany.

Launch date: 17 April 1941.

Commission date: 02 August 1942.

Decommission date: 02 May 1970.

Displacement ( tons ): 761 surfaced, 865 submerged.

Dimensions ( metres ): 67,23 x 6,18 x 4,78

Main machinery: 2 x Germaniawerft diesel ( 1.400hp ), 2 x Brown Boveri GG UB 720/8 electric ( 750hp ).

Speed ( knots ): 16,5 surfaced. 7,5 submerged.

Range ( miles ): 6.500 at 12 knots surfaced, 9.000 at 10 knots surfaced, 90 at 4 knots submerged.

Complement: 46-54.

Guns: 1 x C35 88mm/45, 1 x C30 20mm anti-aircraft gun.

Torpedoes: 5 x 533,4mm tubes ( 4 forward + 1 aft ), 14 x torpedoes G7a/G7e.

Comment: Ex - U-573. Commissioned for the German Navy in June 5th 1942. On May 1st 1942, while on it´s 4th patrol became damaged by a british Hudson aircraft using depth charges while it was patrolling near Algiers. The commander sailed to Cartagena (Spain) for repairs and the submarine then became interned. It was finally acquired by the spanish government and was renamed G-7. After a long period being repaired it entered active service November 5th 1947. Renamed S-01 June 15th 1961.
