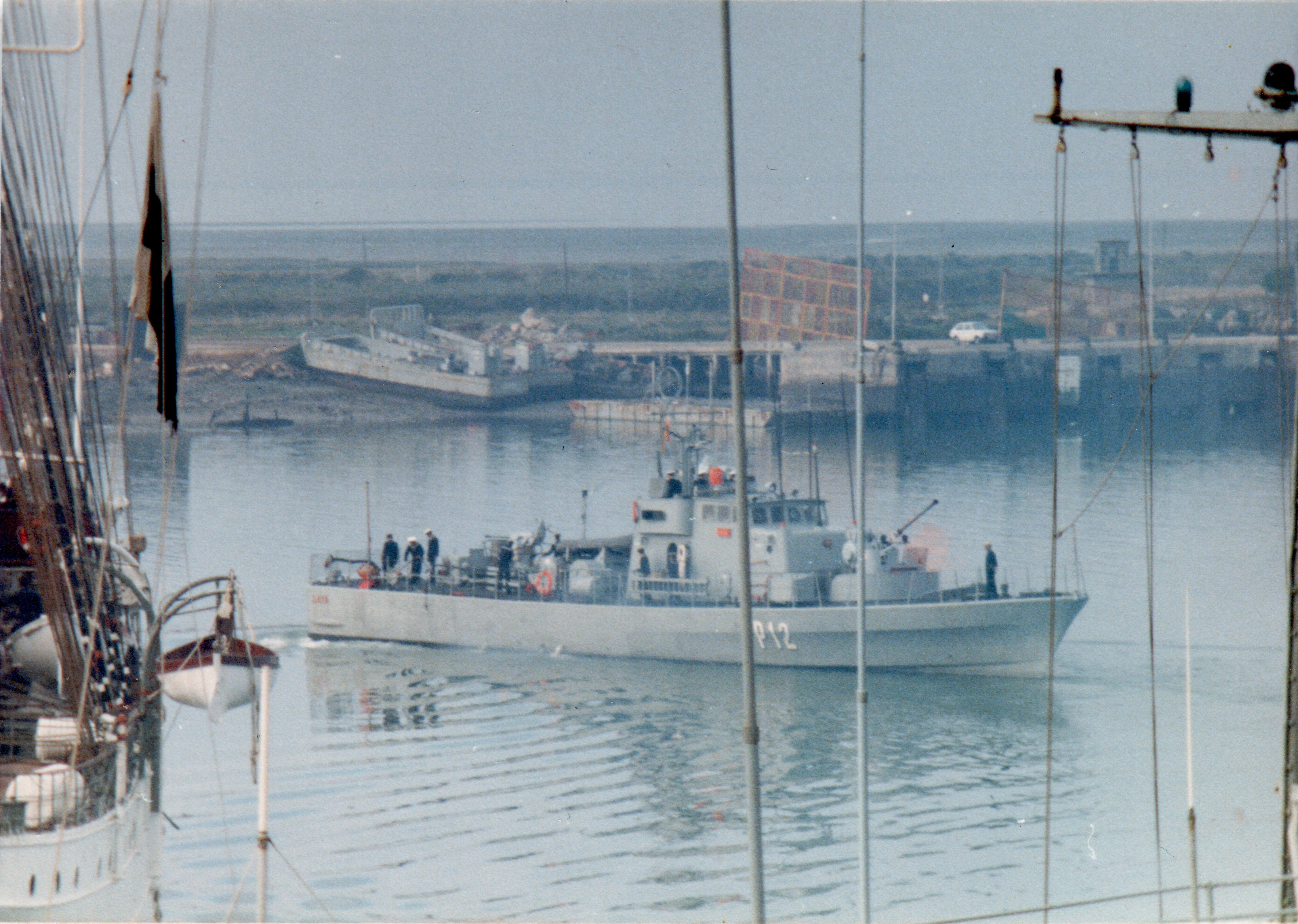

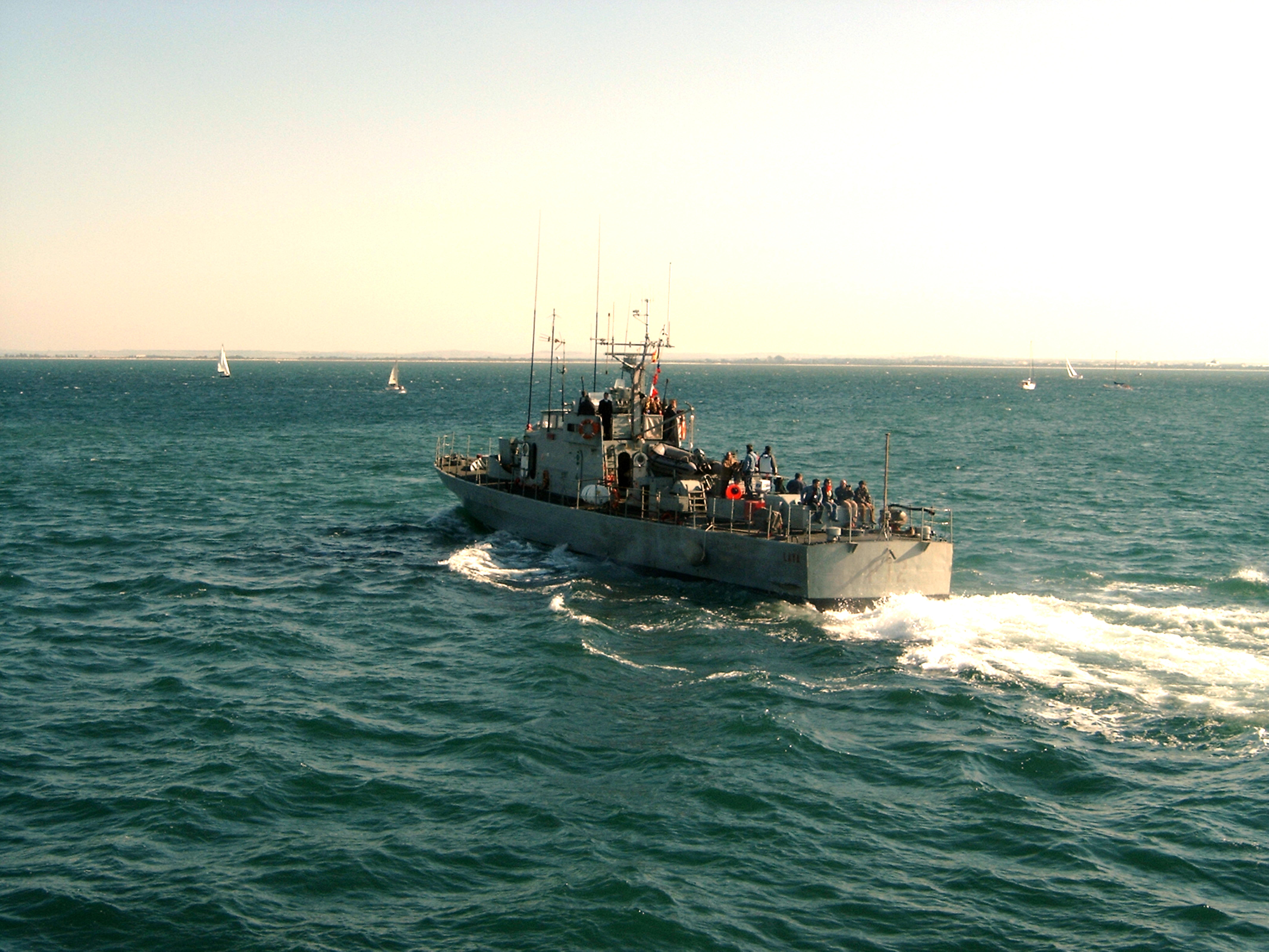

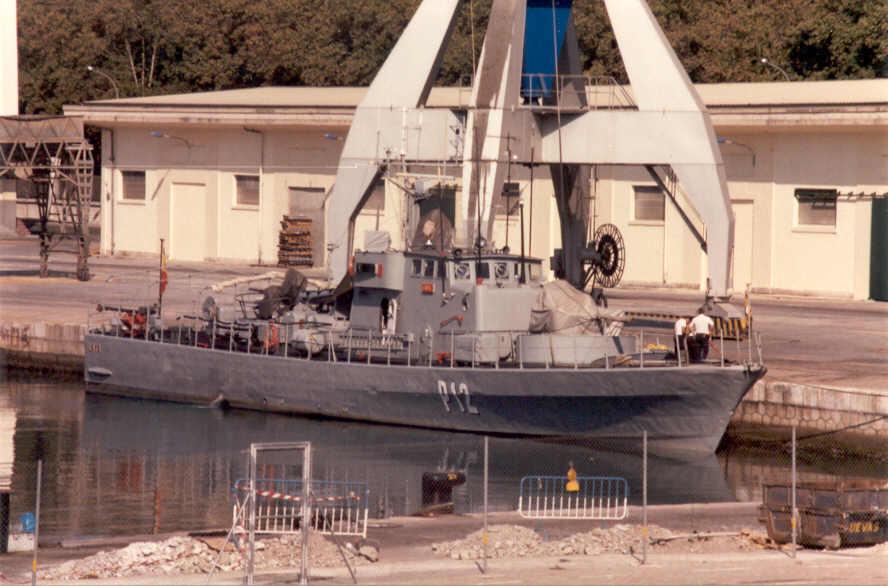

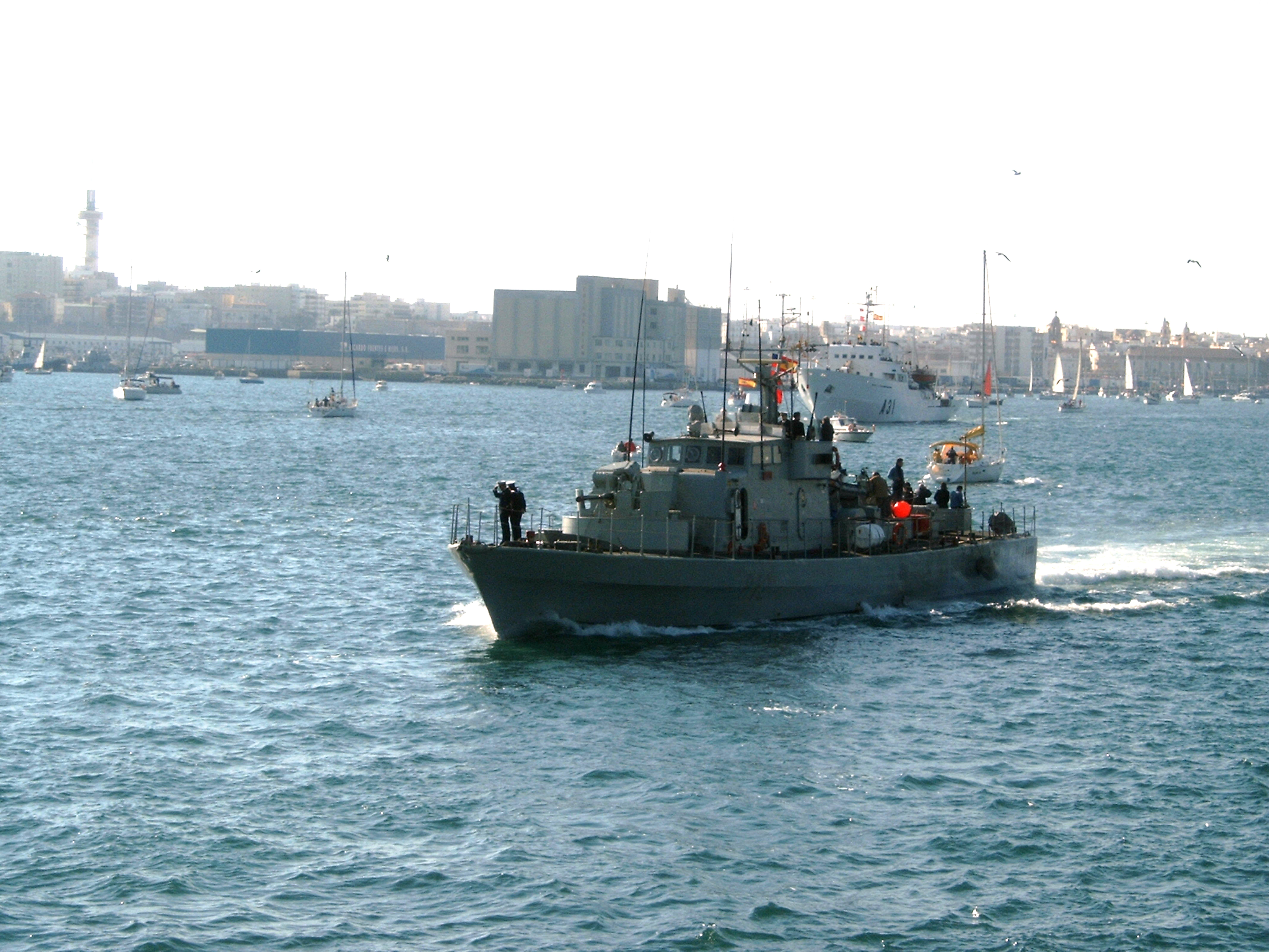

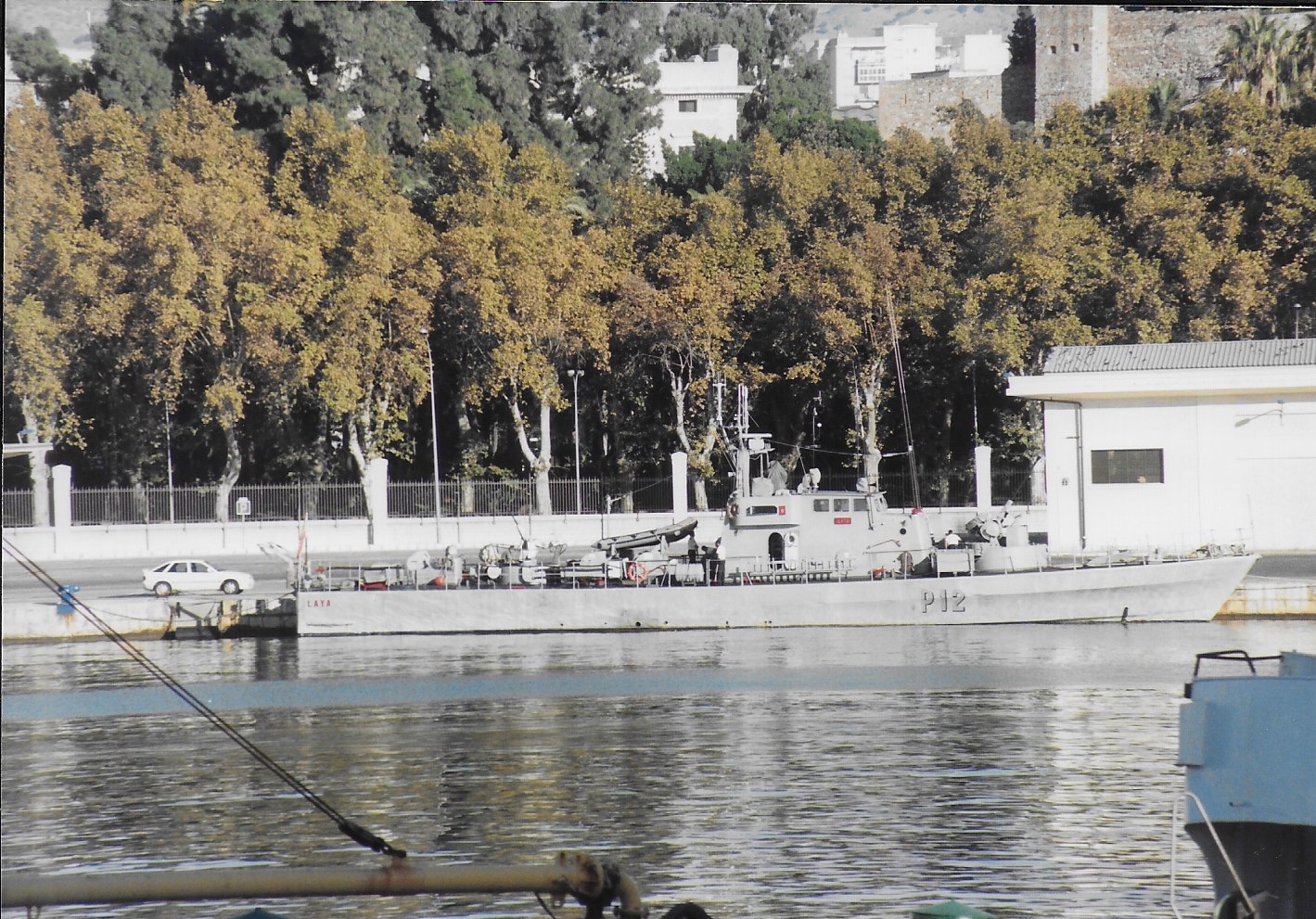

P-12 Laya

Country:  Spain

Class, [Type]: Barceló, [PC].

Builder: Bazán, La Carraca, Spain.

Launch date: 16 December 1975.

Commission date: 23 December 1976.

Decommission date: 02 February 2010.

Displacement ( tons ): 134 full load.

Dimensions ( metres ): 36,2 x 5,8 x 1,4

Main machinery: 2 x MTU-Bazán MD 16V 538 TB90 diesels ( 6.000 hp ).

Speed ( knots ): 36.

Range ( miles ): 1.200 at 17 knots.

Complement: 19 ( 3 officers ).

Guns: 1 x Bofors 40mm/70, 1 x Oerlikon 20mm/120, 2 x Browning 12,7mm.

Torpedoes: It can carry up to two 533mm torpedoes.

Radar: Surface: Raytheon 1220/6XB, I/J bands.

Callsign: EBGH ()

Comment: Engines in all the class have been modified and no longer permit speeds over 28 knots. The original Bofors cannon ( 40mm ) was changed years ago for Oerlikon received from the Army.

Homeport: Cadiz.

Similar units:

 P11 Barceló
 P13 Javier Quiroga
 P14 Ordoñez
 P15 Acevedo
 P16 Cándido Pérez
