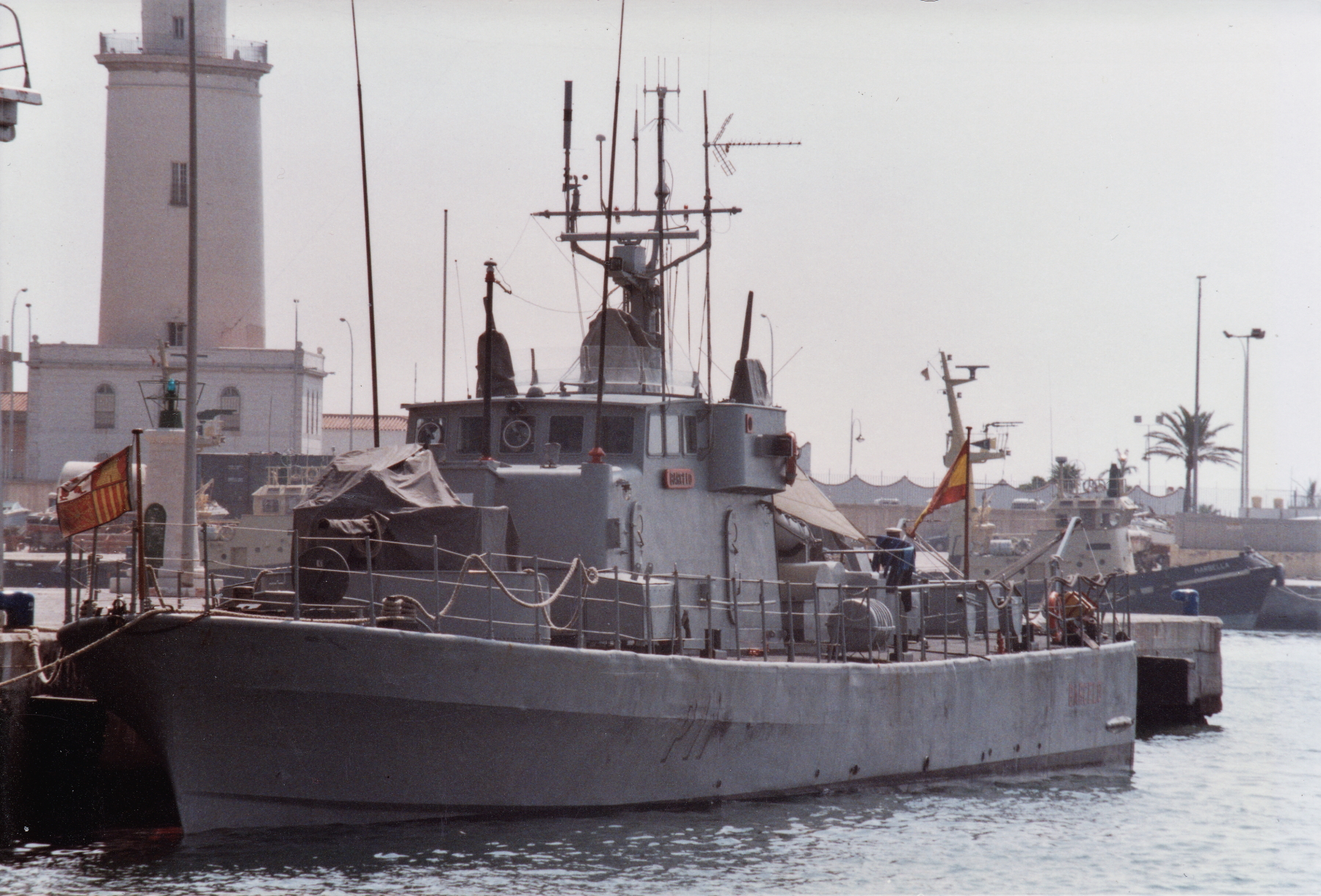

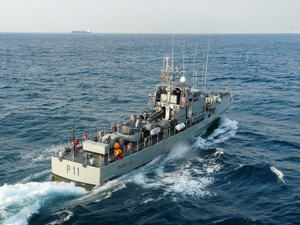

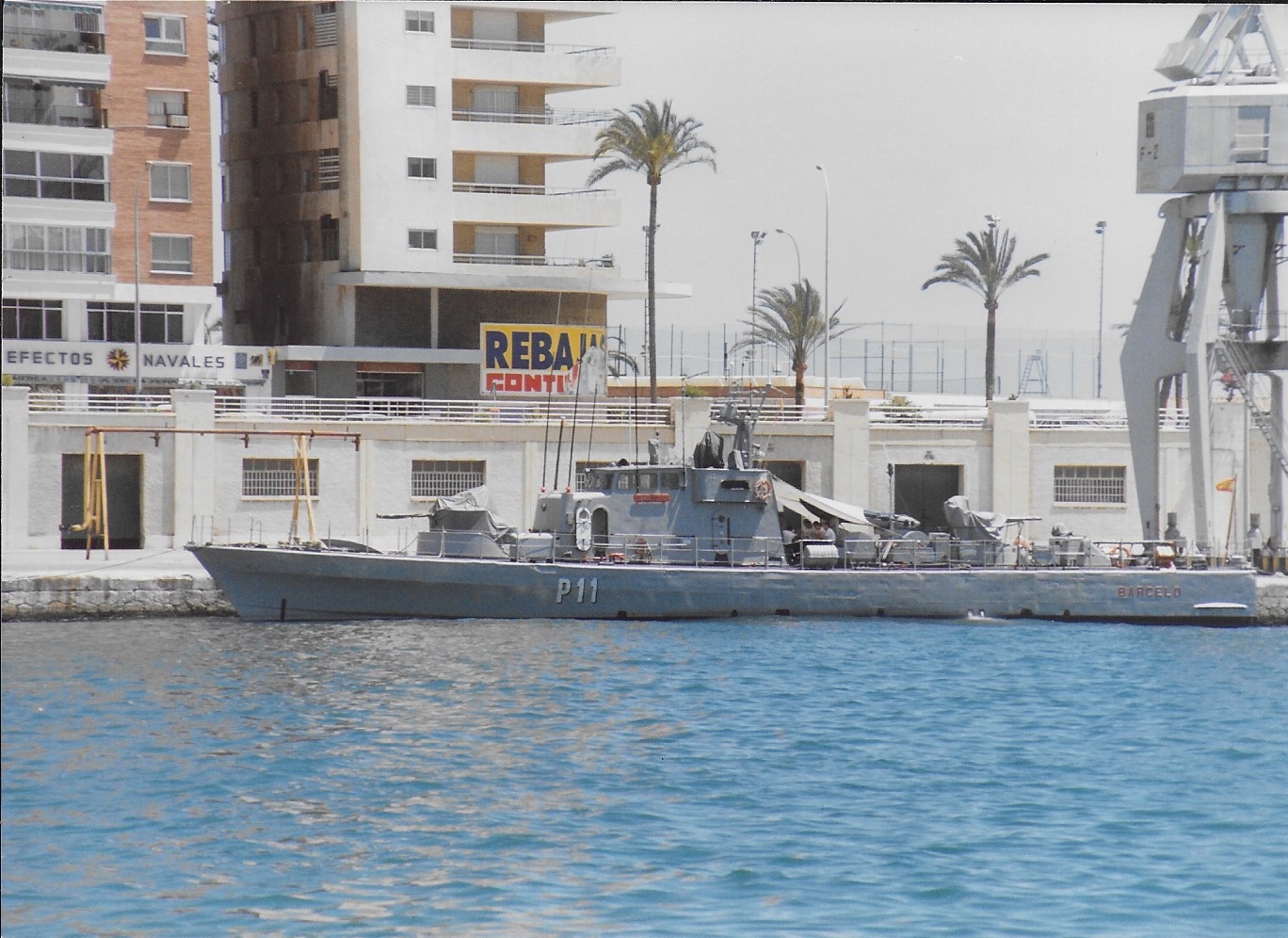

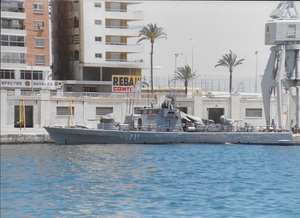

P-11 Barceló

Country:  Spain

Class, [Type]: Barceló, [PC].

Builder: Lürssen Werft, Vegesack, Germany.

Launch date: 10 October 1975.

Commission date: 26 March 1976.

Decommission date: 02 December 2009.

Displacement ( tons ): 134 full load.

Dimensions ( metres ): 36,2 x 5,8 x 1,4

Main machinery: 2 x MTU-Bazán MD 16V 538 TB90 diesels ( 6.000 hp ).

Speed ( knots ): 36.

Range ( miles ): 1.200 at 17 knots.

Complement: 19 ( 3 officers ).

Guns: 1 x Oerlikon 20mm/120, 1x Oerlikon 20mm/85, 2 x Browning 12,7mm.

Torpedoes: It can carry up to two 533mm torpedoes.

Radar: Surface: Raytheon 1220/6XB, I/J bands.

Callsign: EBGP ()

Comment: Engines in all the class have been modified and no longer permit speeds over 28 knots. The original Bofors cannon ( 40mm ) was changed years ago for an Oerlikon received from the Army. Oficial decomission date is 2nd December 2009.

Homeport: Cadiz.

Similar units:

 P12 Laya
 P13 Javier Quiroga
 P14 Ordoñez
 P15 Acevedo
 P16 Cándido Pérez
