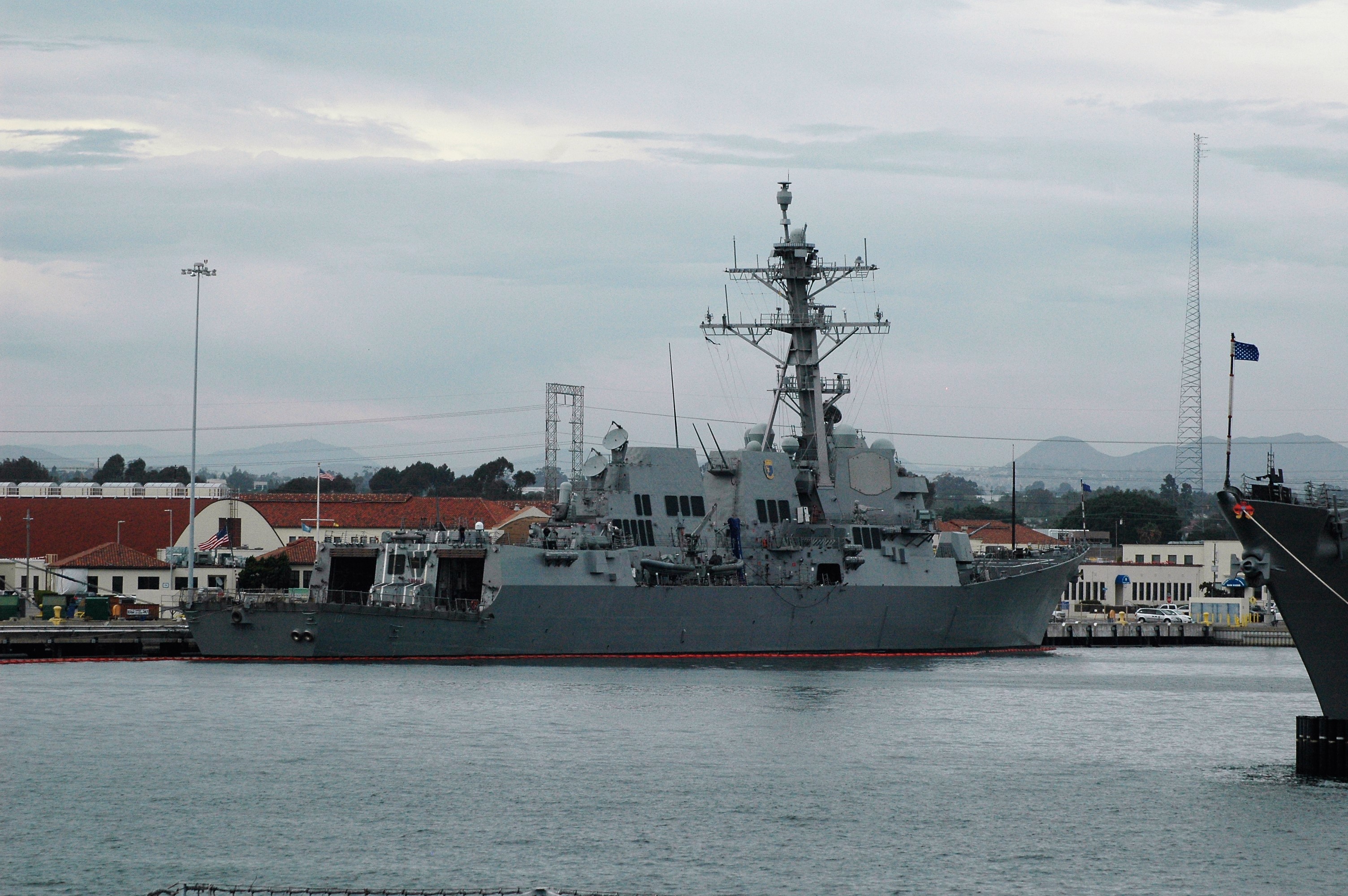

DDG-101 Gridley

Country:  United States

Class, [Type]: Arleigh Burke ( Flight IIA ), [DDG].

Builder: Bath Iron Works, Bath, Maine, U.S.A.

Launch date: 28 December 2005.

Commission date: 10 February 2007.

Displacement ( tons ): 9.400 full load.

Dimensions ( metres ): 155,3 x 20,27 x 6,68

Main machinery: 4 x GE LM 2500-30 gas turbines ( 105.000 hp ).

Speed ( knots ): 32.

Range ( miles ): 4.400 at 20 knots.

Complement: 380 ( 36 officers ).

Guns: 1 x 127mm/62 Mk45 Mod. 4, 2 x 20mm Mk15 Mod. 12 Block IB Phalanx CIWS, 2 x 25mm/75 Mk38 Mod. 1 Bushmaster, 4 x 12,7mm.

Missiles:  2 x Mk41 Mod. 0 VLS; AGM: Tomahawk; SAM: 96 x Standard SM-2 MR Block IV; ASW: ASROC.

Torpedoes: 6 x 324mm tubes (2 x triple Mk32 Mod. 15 launchers), Mk46 and Mk54 torpedoes.

Radar: Air/Weapons Control: Raytheon SPY 1D(V), E/F bands; Surface: 1 x AIL SPS 67(V)3, G band; Navigation: 1 x Decca BridgeMaster E ARPA, I band; Firing Control: 3 x Raytheon/RCA SPG62A, I/J bands, 2 x Mk90 (CIWS); TACAN: URN 25, IFF Mk XII AIMS UPX-29.

Sonar: Gould/Raytheon/GE SQQ89(V)15 combined with an active SQS-53C(V)1 hull sonar, Kingfisher HF mine-avoidance set, Northrop Grumman SLX-1 MSTRAP. WLD-1(V)1/3 Remote Minehunting System.

Countermeasures: Decoys: 2 x Mk53 (Nulka), Loral Hycor SRBOC Mk 36 Mod 12 (4 x Mk 137 Mod. 5 launchers, for infrared flares and chaff); Towed torpedo decoy SLQ25 Nixie (SSTD Phase I); SLQ-39; ESM/ECM: Raytheon SLQ32A(V)3.

Helicopter: 2 x SH60B/F LAMPS III.

Homeport: Everett.

Similar units:

 DDG79 Oscar Austin
 DDG80 Roosevelt
 DDG82 Lassen
 DDG83 Howard
 DDG84 Bulkeley
 DDG86 Shoup
 DDG87 Mason
 DDG90 Chafee
 DDG94 Nitze
 DDG95 James E. Williams
 DDG96 Bainbridge
 DDG98 Forrest Sherman
 DDG99 Farragut
 DDG100 Kidd
 DDG103 Truxtun
 DDG104 Sterett
 DDG113 John Finn
 DDG115 Rafael Peralta
 DDG116 Thomas Hudner
