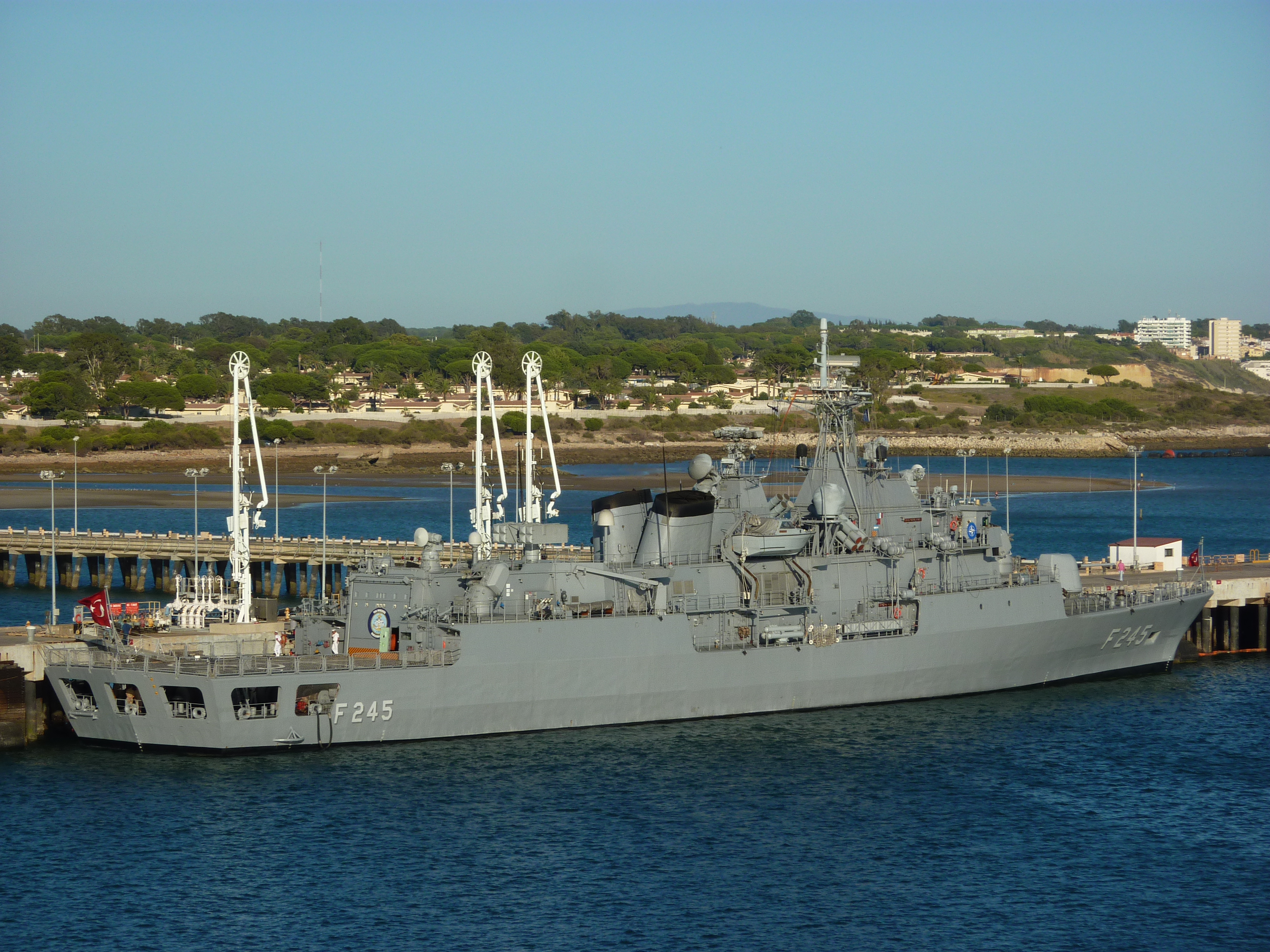

F-245 Oruçreis

Country:  Turkey

Class, [Type]: Barbaros ( Meko 200 TN-IIA ), [FF].

Builder: Gölçuk NSY, Kocaeli, Turkey.

Launch date: 28 July 1994.

Commission date: 23 May 1997.

Displacement ( tons ): 3.100, 3.350 at full load.

Dimensions ( metres ): 116,72 x 14,8 x 4,25

Main machinery: CODOG: 2 x MTU 16V1163 TB83 diesels ( 13.000 hp ), 2 x G.E. LM-2500-30 gas turbines ( 63.500 hp ); 2 x KaMeWa props.

Speed ( knots ): 31,75 ( 22 running on diesels only ).

Range ( miles ): 900 at 31,75 knots, 4.100 at 18 knots ( 2 diesels ).

Complement: 180 ( 24 officers ).

Guns: 1 x 127mm/54 Mk45 Mod. 2A, 3 x 25mm Oerlikon-Contraves Sea Zenith GM 25 CIWS, 2 x 12,7mm.

Missiles:  SSM: 8 x Harpoon; SAM: 1 x Mk 29 launcher ( 24 x RIM-7M Sea Sparrow missiles ).

Torpedoes: 6 x 324mm tubes ( 2 triple x Mk 32 Mod. 5 launchers ) for Mk 46 Mod. 5 torpedoes.

Military lift: fuel: 300 tons.

Radar: Air: 1 x BAE Systems AWS-9 (TN) 996; NavIgation: 1 x Decca 2690 BT ARPA; Fire Control: 1 x Thales STIR-18 ( missiles/main gun ), 1 x Thales STIR-24 ( SAM ), 2 x TMKu ( CIWS ).

Sonar: Raytheon SQS-56 (DE 1160), hull-mounted, active search and attack, medium frequency.

Countermeasures: Decoys: 2 x Loral Hycor Mk 36 Mod 1 SRBOC, Nixie SLQ-25, towed torpedo decoy; ESM/ECM: Racal Cutlass B1 ( intercept ), Racal Scorpion B ( jammer ).

Helicopter: 1 x AB 212.

Callsign: TBJY ()

Similar units:

 F244 Barbaros
