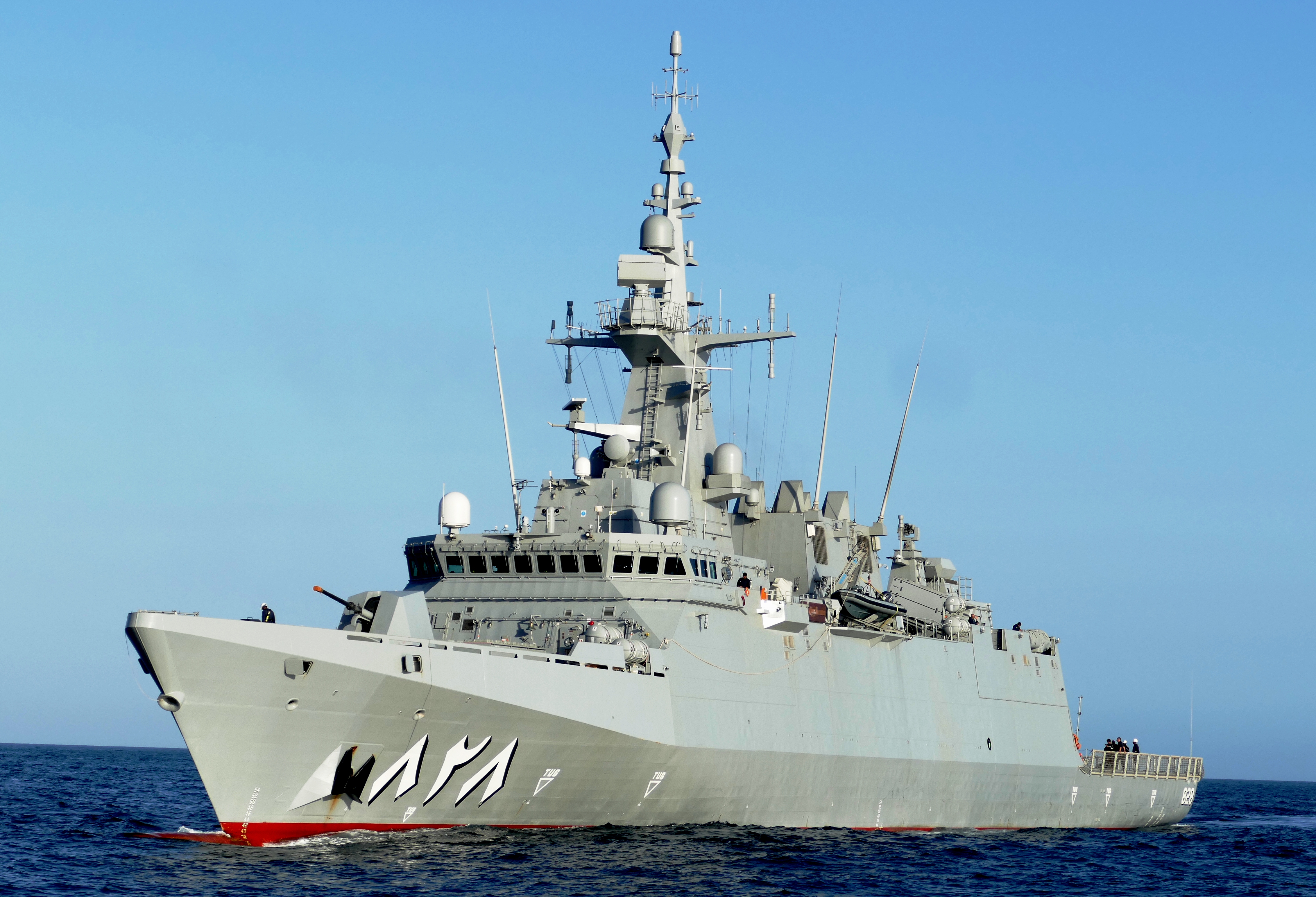

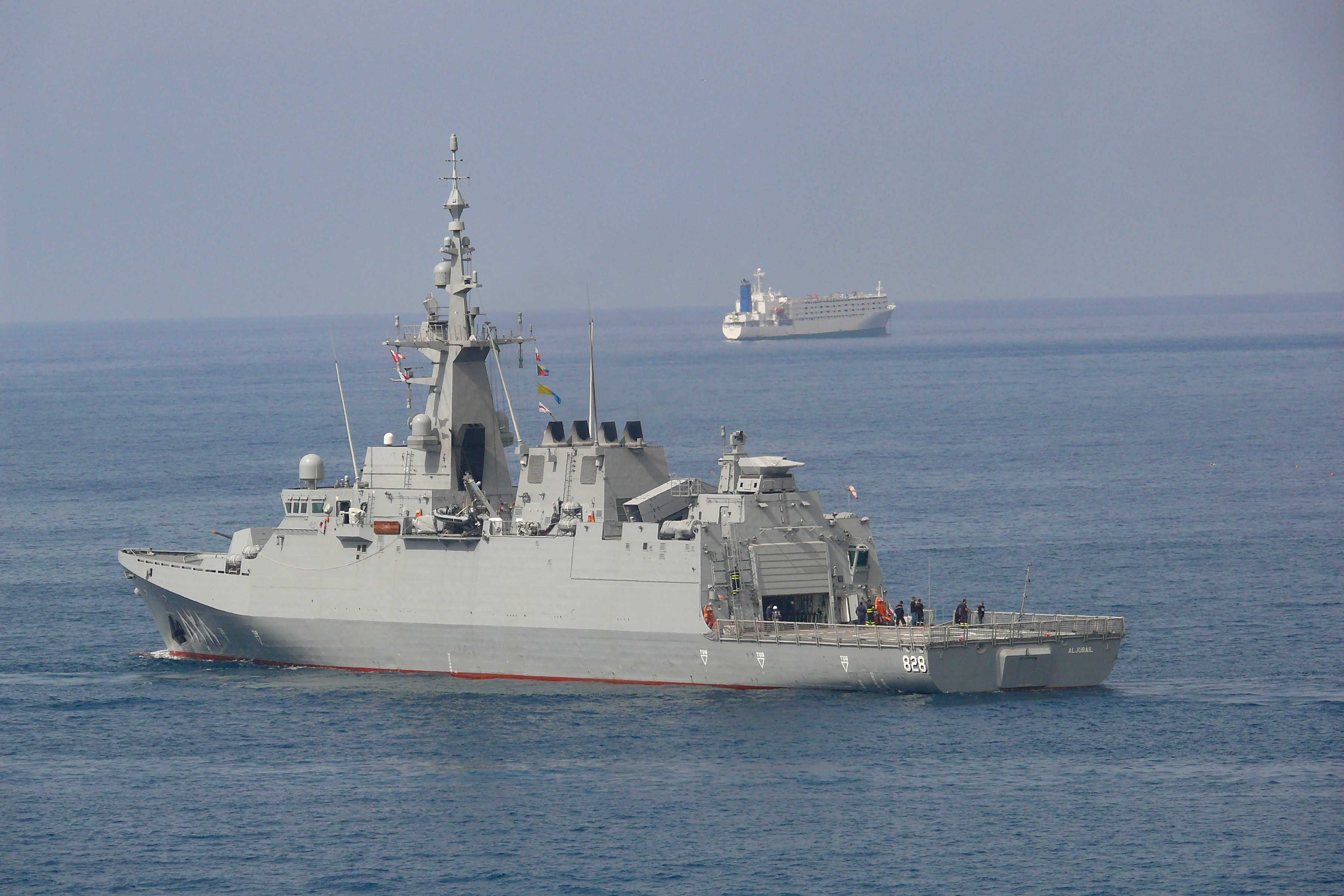

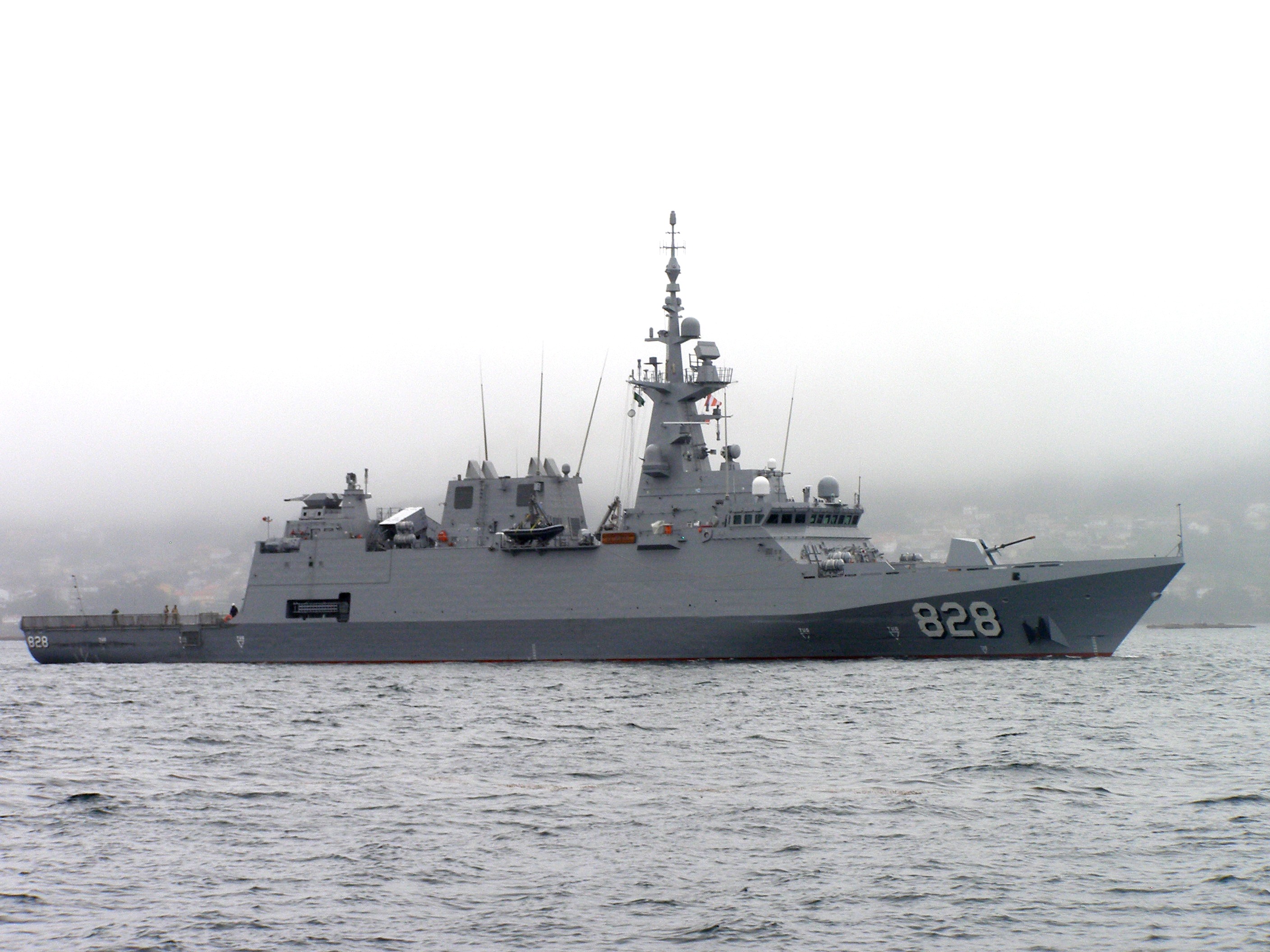

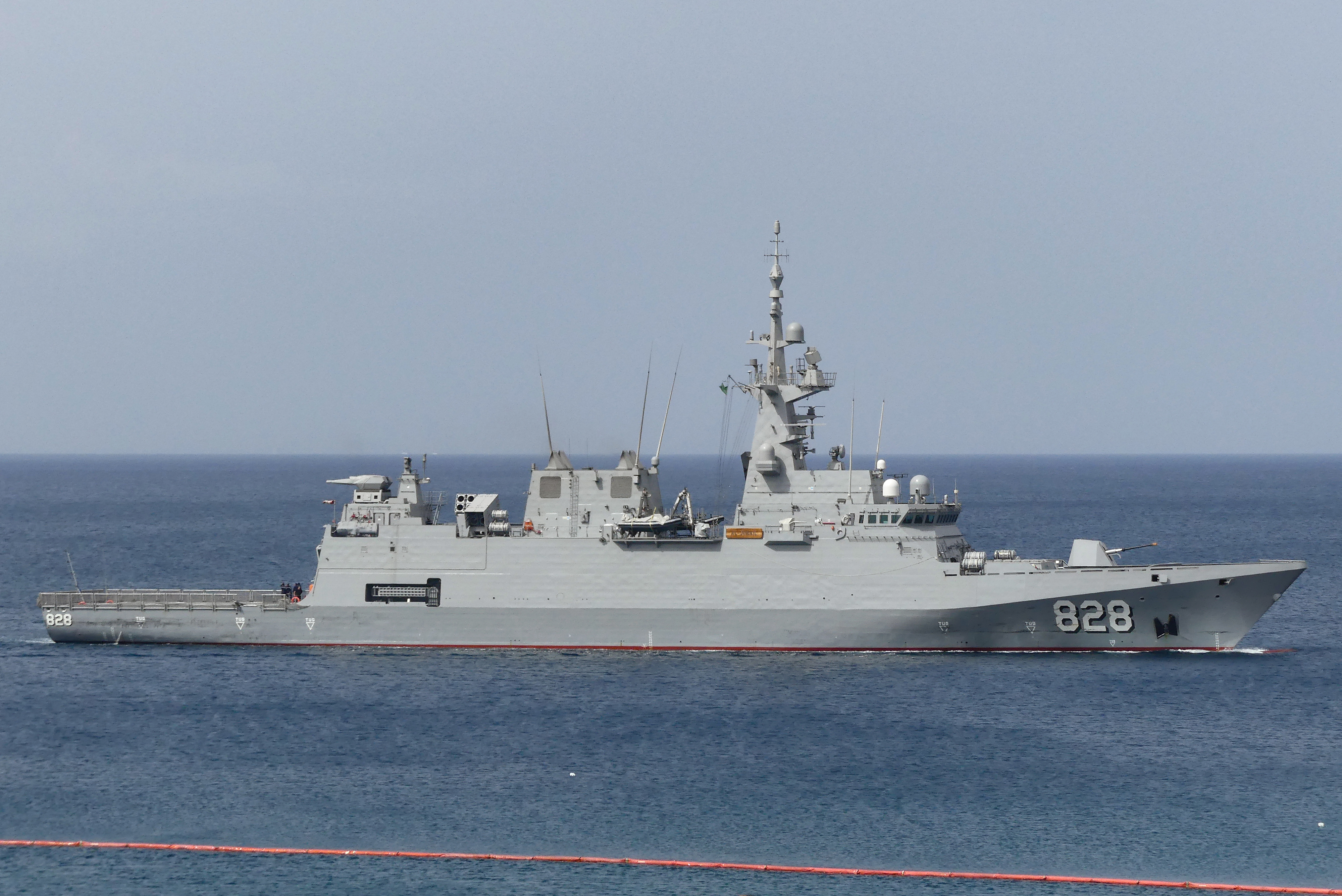

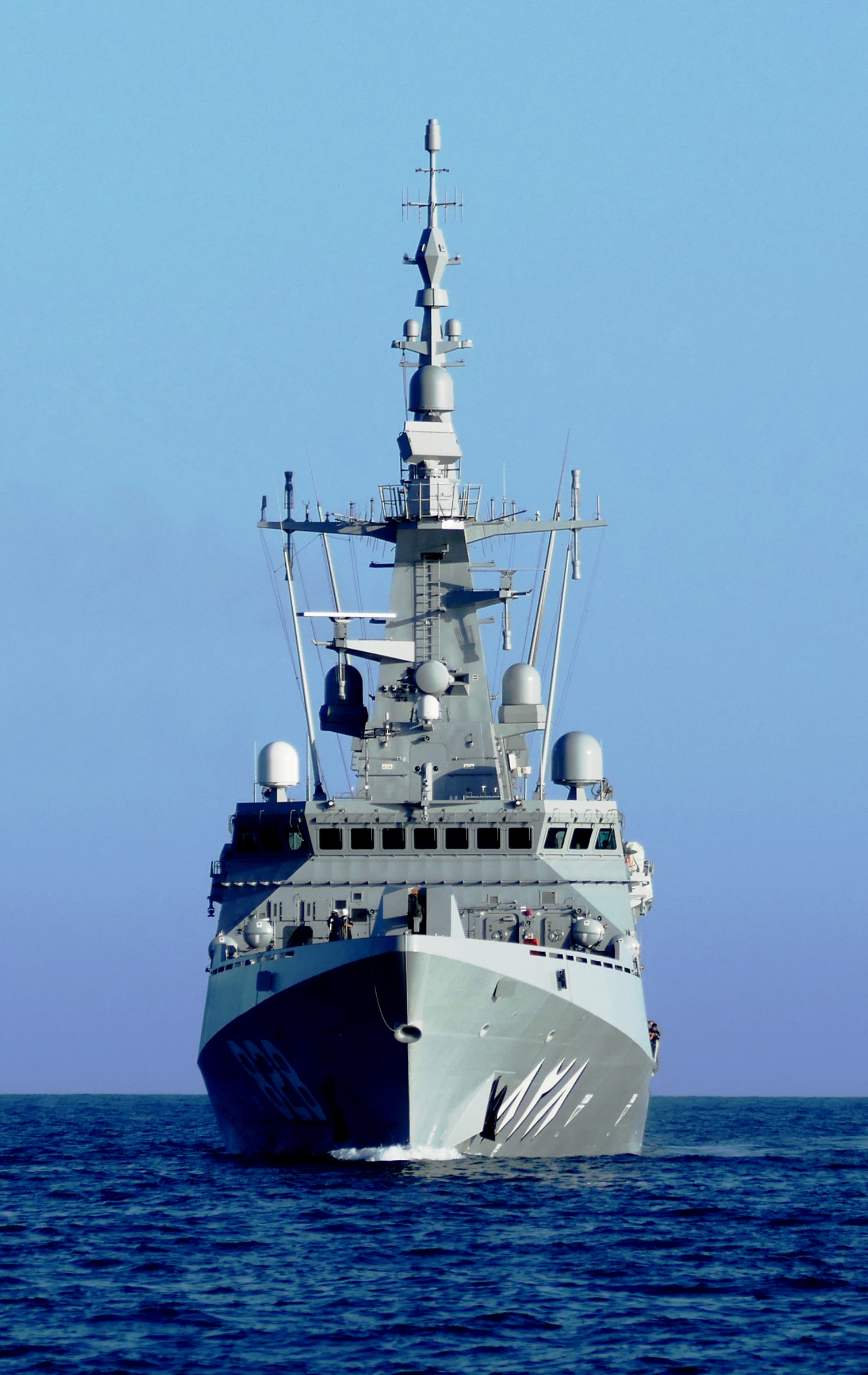

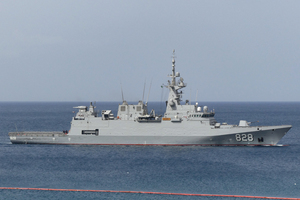

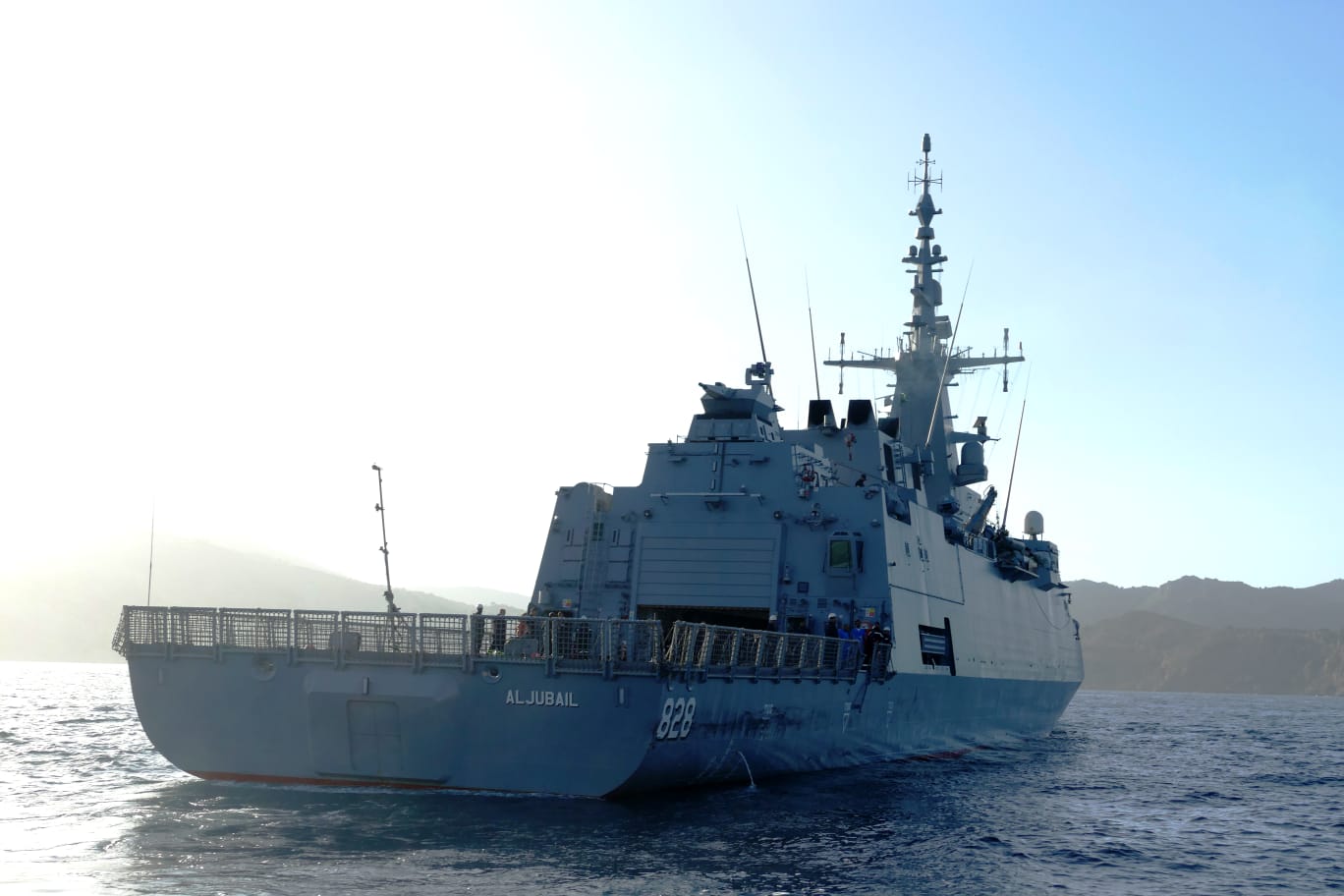

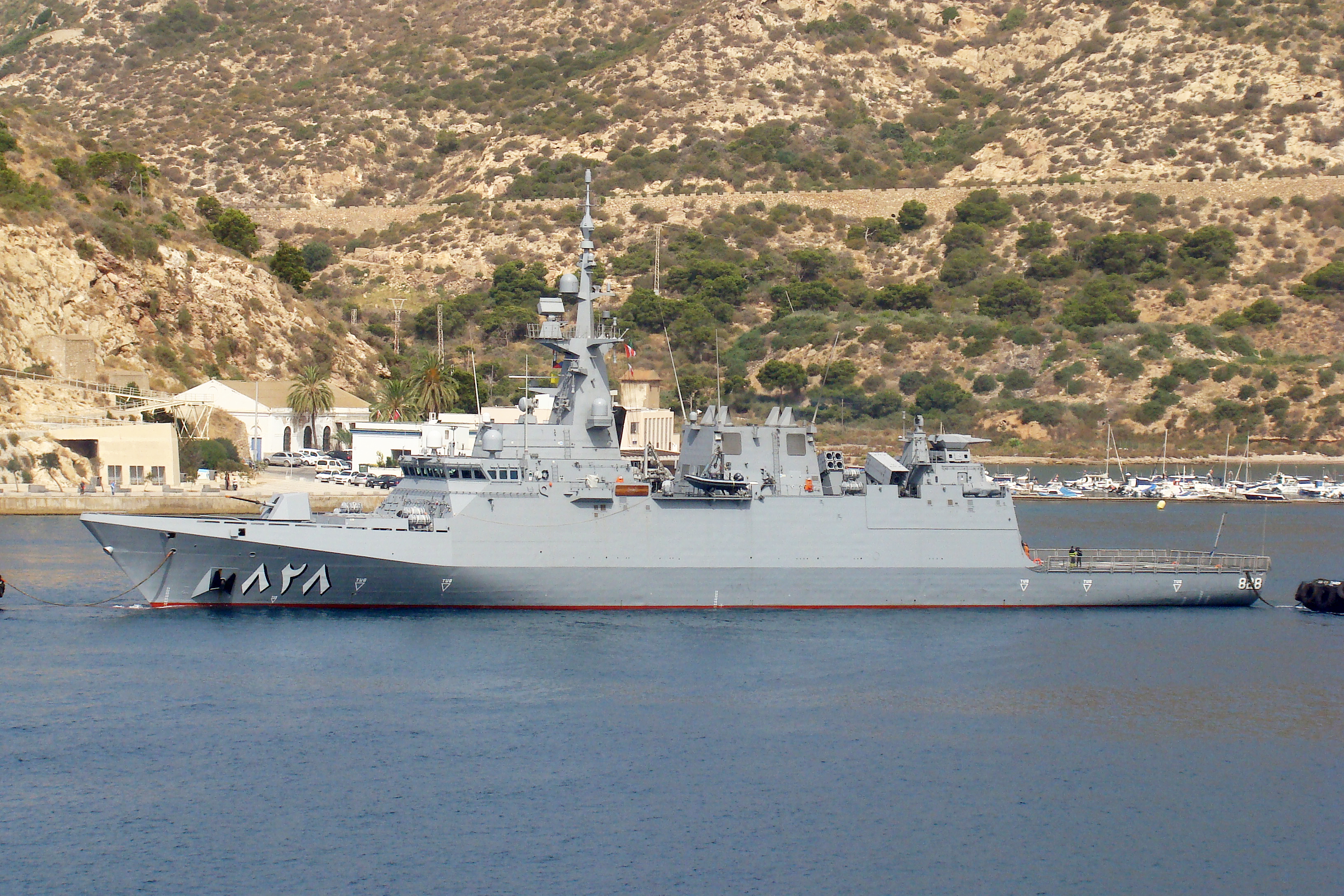

828 Al Jubail

Country:  Saudi Arabia

Class, [Type]: Al Jubail, [PF].

Builder: Navantia, San Fernando, Cádiz, Spain.

Launch date: 23 July 2020.

Commission date: 31 March 2022.

Displacement ( tons ): 2.500 at full load.

Dimensions ( metres ): 104 x 14 x 3,8

Main machinery: 4 x MTU 12V-1163-TB93 diesels, 2 x shafts.

Speed ( knots ): 24.

Range ( miles ): 3.500 at 18 knots.

Complement: 60 + 32 passengers.

Guns: 1 x Leonardo 76mm/62 Super Rapid, 1 x Oerlikon Millenium GMD-008 35mm ( double mounting ), 4 x Browning M2 12,7mm.

Missiles:  SAM: 1 x 16-cell Mk41 VLS ( ESSM / MICA missiles ); SSM: 8 x RGM-84 Harpoon Block II missiles ( 2 x quad launchers ).

Torpedoes: 6 x 324mm ( 2 x Mk32 triple launchers ).

Military lift: 21 days endurance.

Radar: Air/Surface: 1 x Hensoldt TRS-4D, 3D, G band; Surface: 1 x Thales Scout Mk2, X band; Fire Control: 1 x DORNA, I/K bands (main gun), 1 x Thales Mirador (35mm gun).

Countermeasures: Decoys: 2 x decoy launchers; ESM: 1 x Thales Vigile 100.

Helicopter: 1 x light helicopter.

Similar units:

 832 Hail
