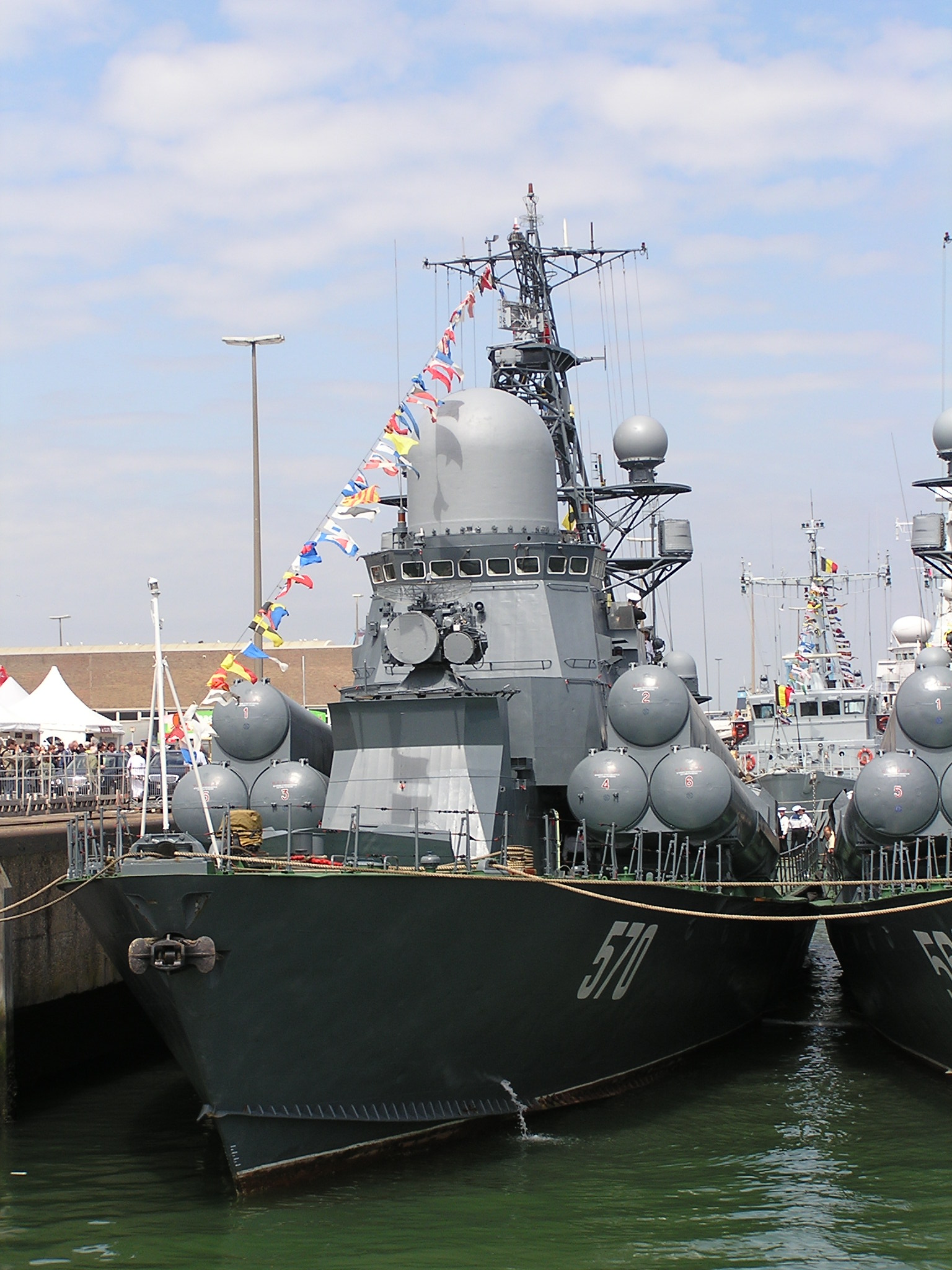

570 Passat

Country:  Russia

Class, [Type]: Nanuchka-III, [PGG].

Builder: Almaz, Petrovskiy SY, St. Petersburg, Russia.

Launch date: 13 June 1990.

Commission date: 14 March 1991.

Displacement ( tons ): 639 standard, 730 full load.

Dimensions ( metres ): 59,3 x 11,8 x 3,08

Main machinery: 3 x M-521 diesels ( 30.000 hp ).

Speed ( knots ): 34.

Range ( miles ): 415 at 34 knots, 2.100 at 18 knots, 3.500 at 12 knots (one engine only).

Complement: 49 ( 7 officers ).

Guns: 1 x 76,2mm/59 AK-176, 1 x 30mm/65 AK-630.

Missiles:  SSM: 2 x triple KT-84 launchers ( SS-N-9 Siren - P-120 Malakhit missiles ); SAM: 1 x twin Osa-M ( SA-N-4B ) ( 20 x 9M-33M5/Gecko missiles ).

Radar: Navigation: 1 or 2 x MR-312 Nayada; Navigation/Surface Search: 1 x Dubrava (Peel Pair); Target Designator: 1 x Titanit (Band Stand); Fire Control: 1 x MPZ-301 Baza (Pop Group) for SA-N-4B, 1 x MR-123 Vympel (Bass Tilt) gun.

Countermeasures: Decoys: 4 x PK-10 decoy launchers, 2 x PK-16 decoy launchers; EW: Vympel R2 suite, 2 x Half Hat-B (intercept), 2 x Foot Ball-A (intercept).

Similar units:

 560 Zyb
