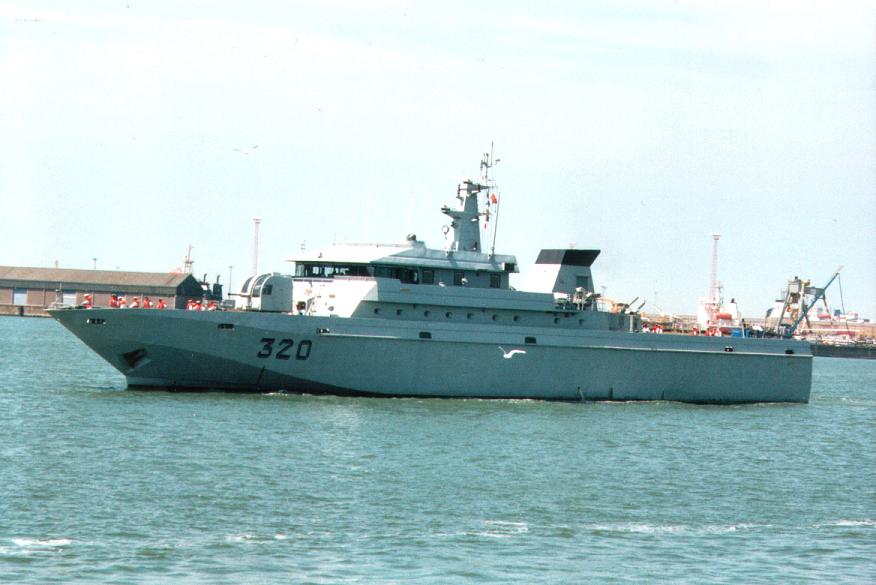

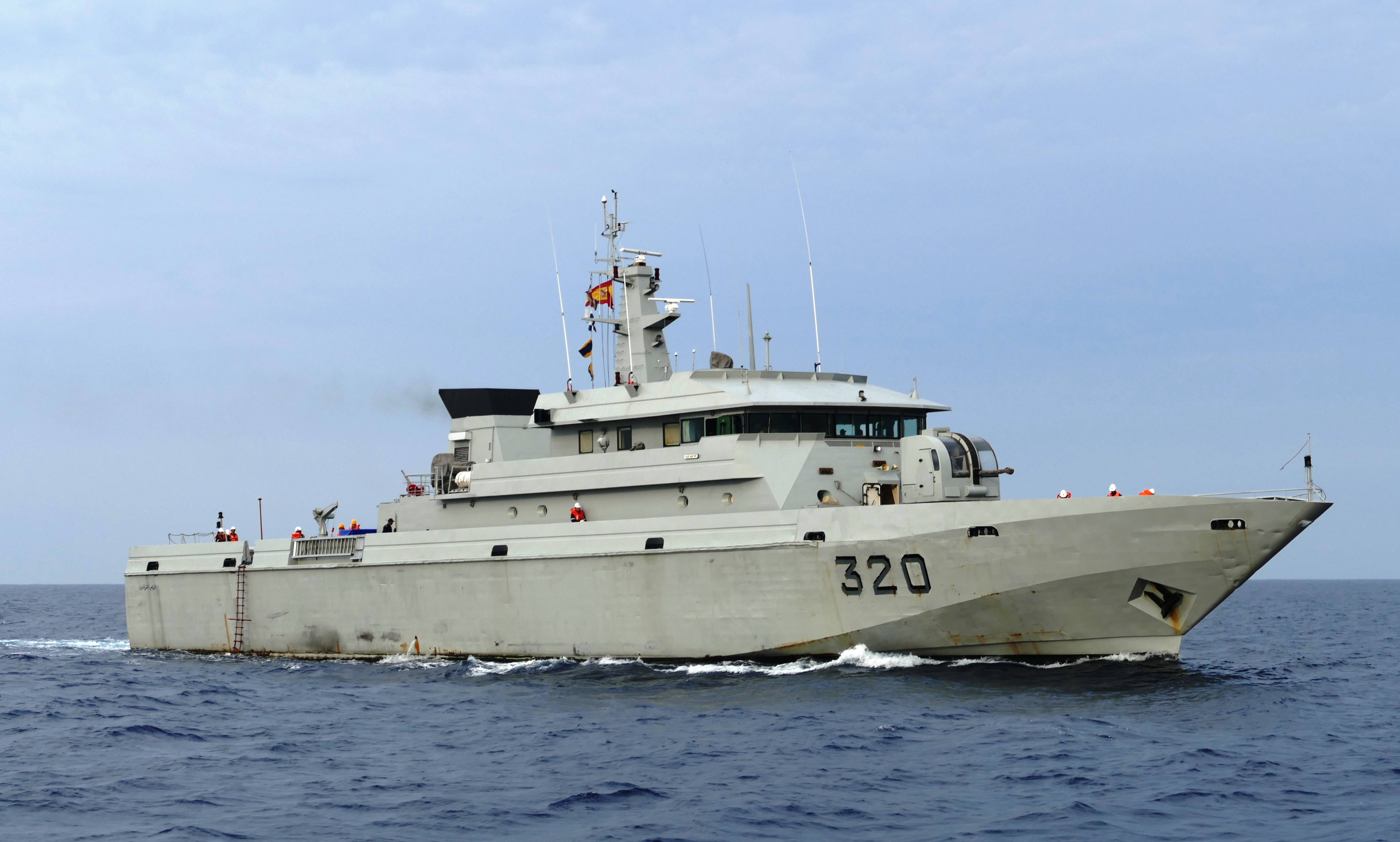

320 Rais Charkoui

Country:  Morocco

Class, [Type]: OPV 64, [PG].

Builder: Lorient Naval Industries, France.

Launch date: 26 September 1996.

Commission date: 15 December 1996.

Displacement ( tons ): 580, 650 full load.

Dimensions ( metres ): 64 x 11,4 x 3

Main machinery: 2 x Wärtsilä Nohab 25 V16 diesels ( 10.000 hp ), 2 x Leroy-Somer auxiliar motors ( 326 hp ).

Speed ( knots ): 24, 7 running on electric motors.

Range ( miles ): 4.000 at 12 knots.

Complement: 24 ( 3 officers ) + 30.

Guns: 1 x Bofors 40mm/60, 1 x Oerlikon 20mm, 4 x 14,5mm (2 twin).

Radar: Navigation: 1 x Decca Bridgemaster 2090, I band, 1 x Decca Bridgemaster-E 2090 ARPA, I band.

Comment: This version of the OPV 64 does not have a helicopter deck. There is a stern door for launching a 7 m RIB.

Homeport: Agadir.

Similar units:

 321 Rais Maaninou
 322 Rais Al Mounasrtiri
