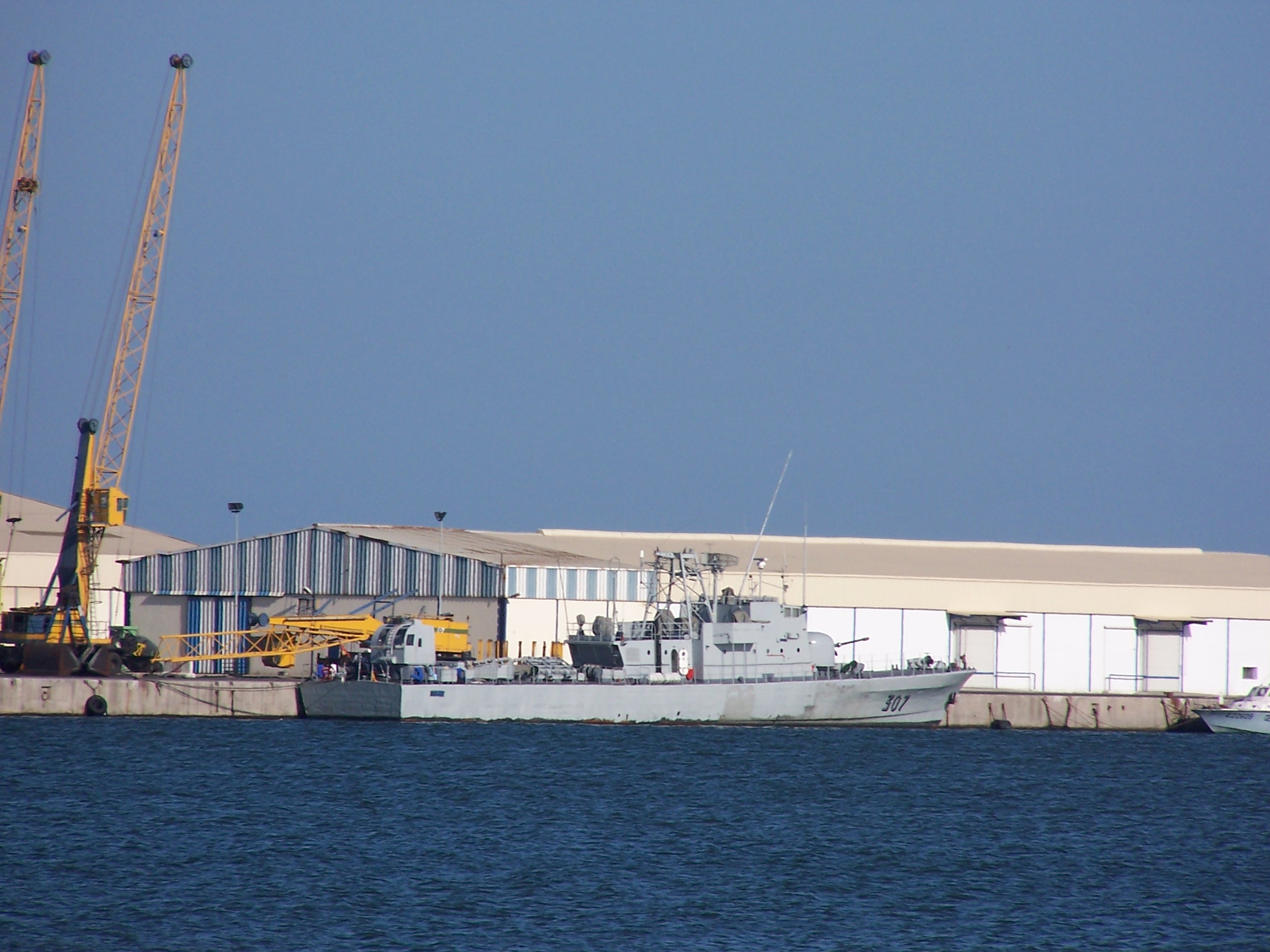

307 Commandant Azouggarh

Country:  Morocco

Class, [Type]: al Khattabi - Lazaga, [PC].

Builder: Bazán, Cádiz, Spain.

Commission date: 02 August 1982.

Displacement ( tons ): 303, 420 full load.

Dimensions ( metres ): 57,4 x 7,6 x 2,4

Main machinery: 2 x Izar-MTU MA16V956 TB91 diesels ( 7.780 hp ).

Speed ( knots ): 29,6.

Range ( miles ): 700 at 27 knots, 3.000 at 15 knots.

Complement: 41.

Guns: 1 x 76mm/62 OTO Melara, 1 x 40mm/70 Bofors–OTO Melara, 2 x single 20mm/90 Oerlikon GAM-B01.

Radar: Surface Search: 1 x Thales ZW-06; Navigation: 1 x Decca; Fire Control: 1 x Thales WM-28.

Comment: Originally carried four MM 38 Exocet antiship missiles but normally carried only two. Since the mid-1990s, they have carried none at all, and the operational missiles have been rehabilitated and transferred to the new Floréal-class patrol ships. Have added fuel capacity over the Spanish Navy version.

Similar units:

 306 Commandant El Harti
