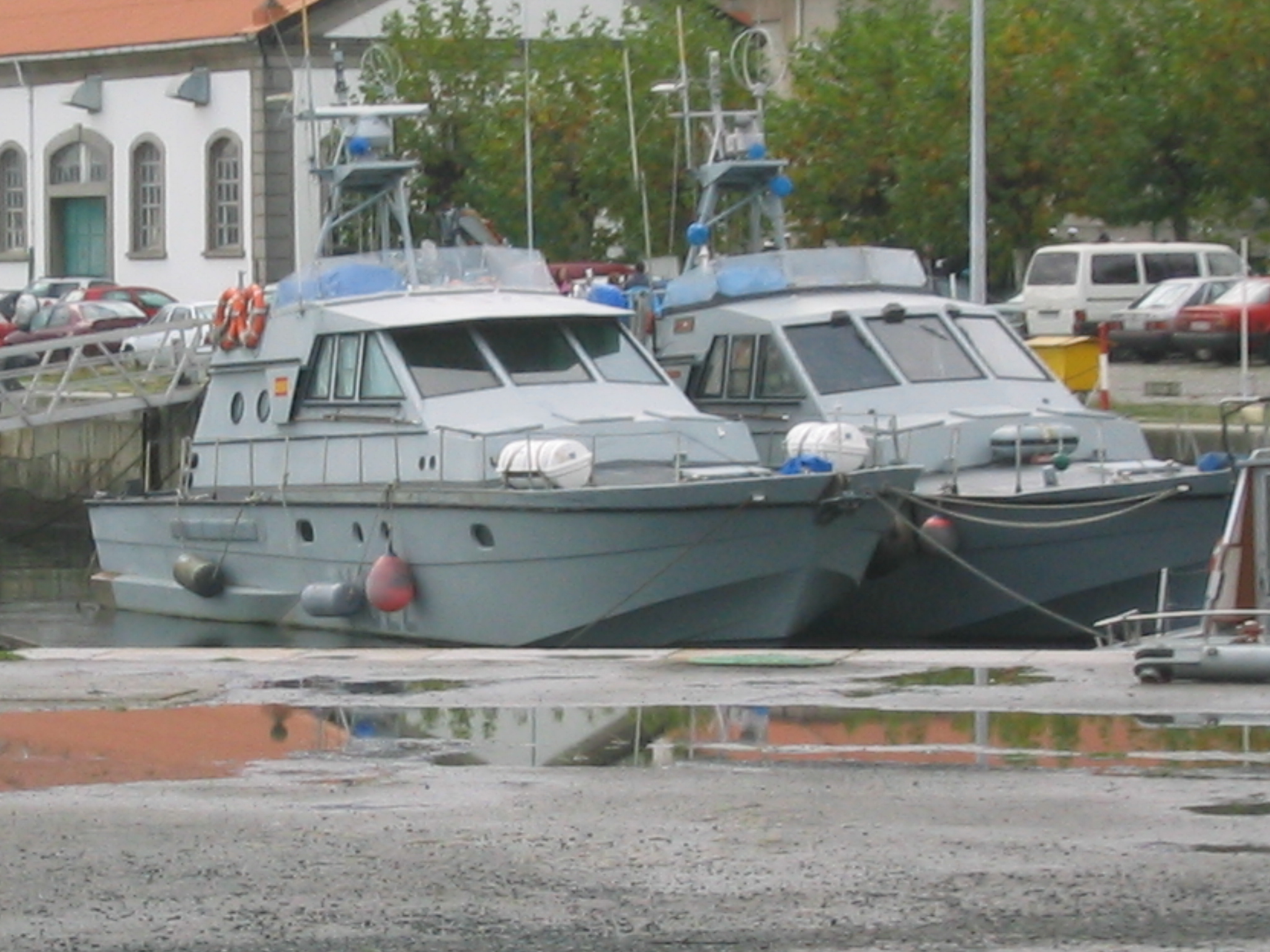

Y-522

Country:  Spain

Class, [Type]: Aresa PVC-160, [YFL].

Builder: Aresa, Areyns de Mar, Barcelona, Spain.

Commission date: 28 March 1979.

Decommission date: 22 June 2009.

Displacement ( tons ): 18,5 standard, 20,8 full load.

Dimensions ( metres ): 13,7 x 4,36 x 1,33

Main machinery: 2 x Baudain-Interdiesel DNP-350 ( 768 hp ).

Speed ( knots ): 23,3.

Range ( miles ): 430 at 18 knots.

Complement: 6.

Military lift: gasoil: 2,2 tons.

Radar: Surface: Decca 110, I band.

Comment: Ex - LVC-7, Ex - PVC-7, Ex - P-107 (1986).

Homeport: La Graña.

Similar units:

 Y521
 Y524 Contramaestre Dávila
 Y525
 Y526
 Y527
 Y537
