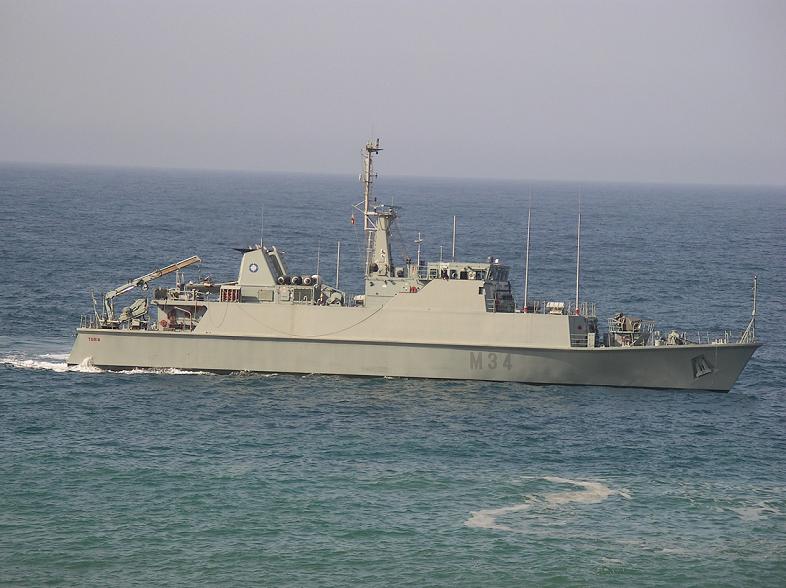

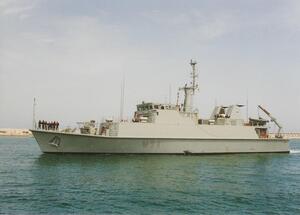

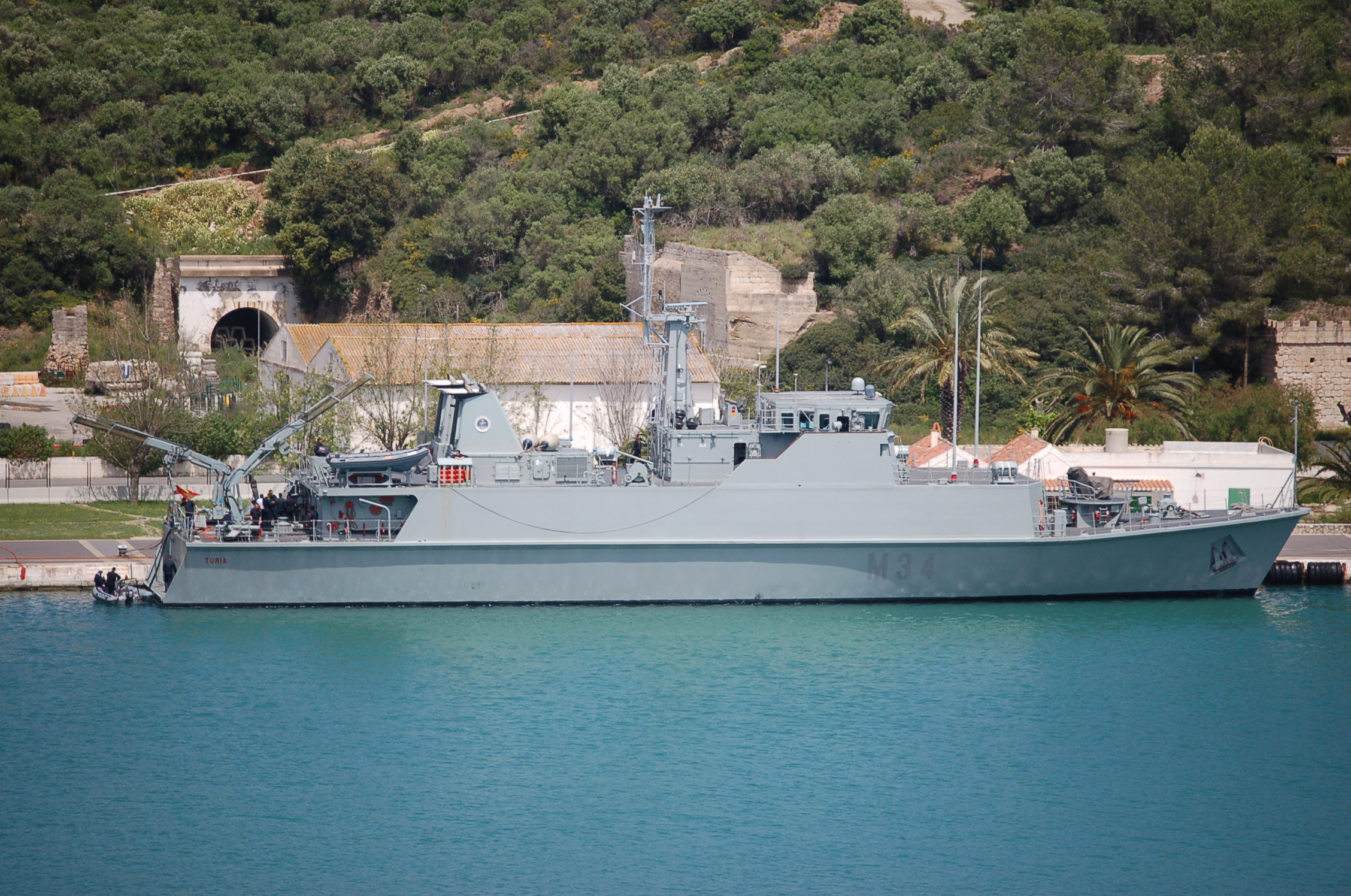

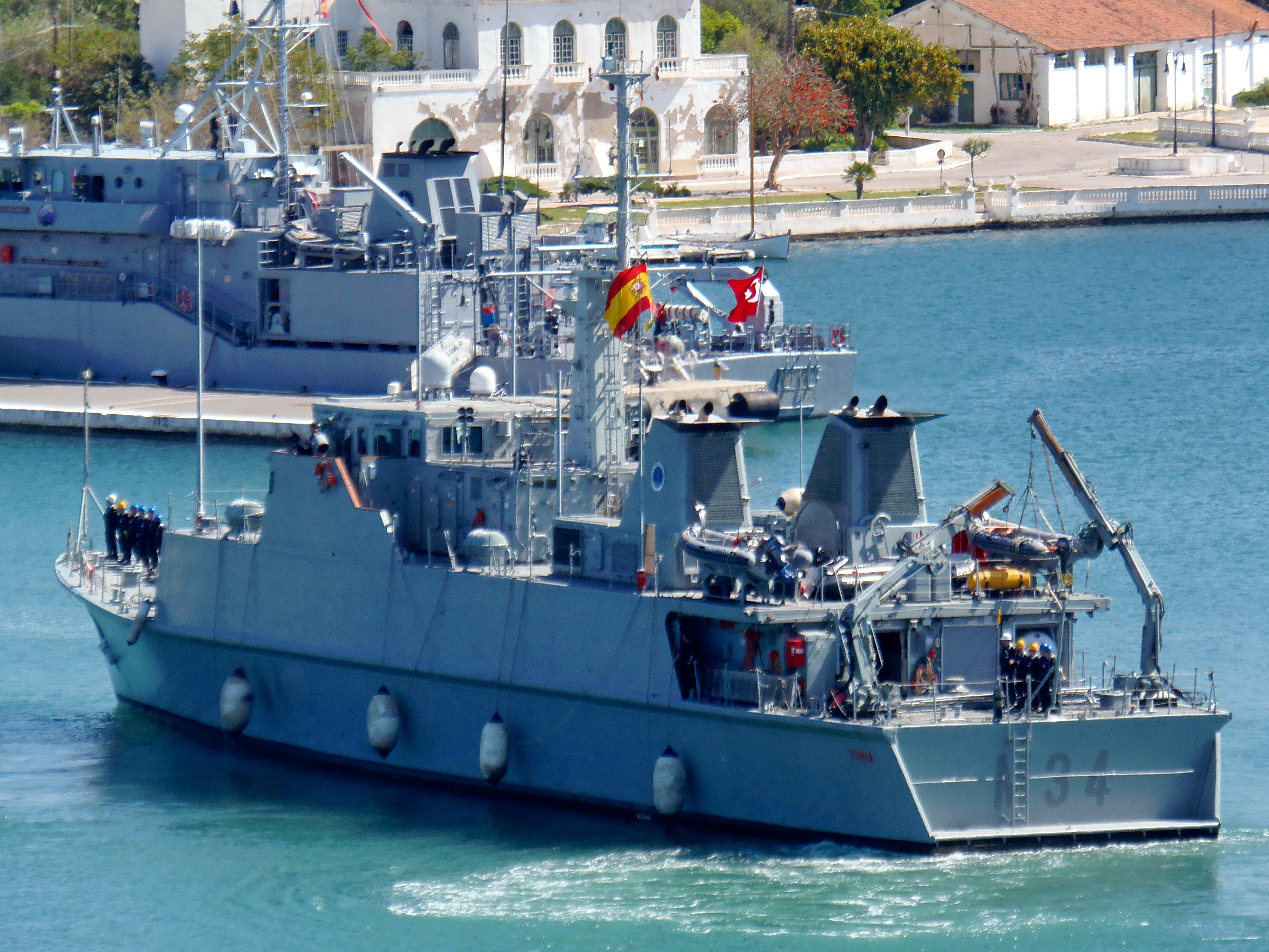

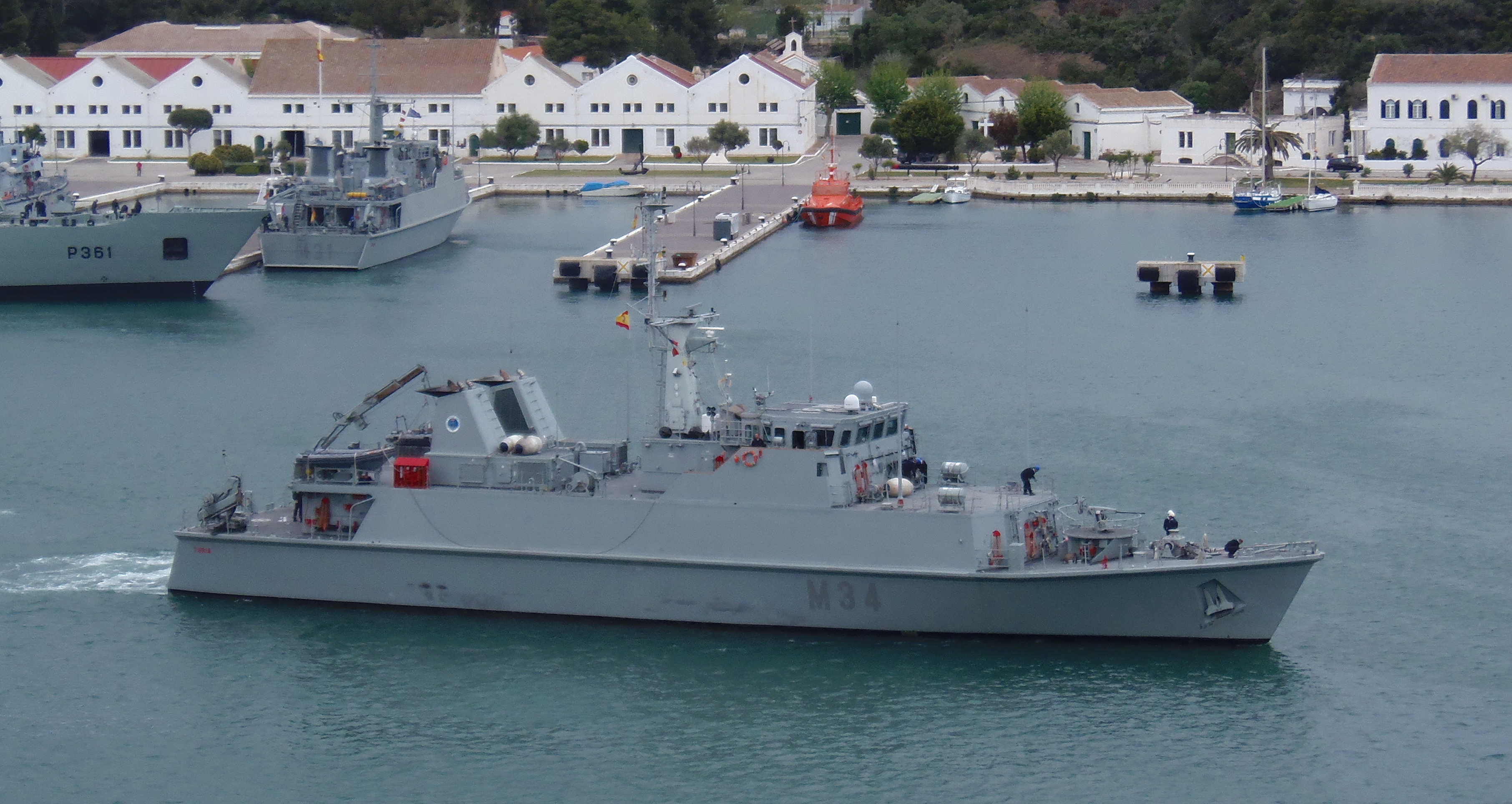

M-34 Turia

Country:  Spain

Class, [Type]: Segura, [MHC].

Builder: Bazán, Cartagena, Spain.

Launch date: 22 November 1999.

Commission date: 20 September 2000.

 Draw by Antoni Casinos

Displacement ( tons ): 550 full load.

Dimensions ( metres ): 54 x 10,7 x 2,2

Main machinery: 2 x MTU-Bazán 6V 396 TB83 diesels ( 1.523 hp ).

Speed ( knots ): 14; 7 while searching.

Range ( miles ): 2.000 at 12 knots.

Complement: 33 + 7.

Guns: 1 x Oerlikon 20mm/85 GAM-B01.

Radar: Navigation: Kelvin Hughes Type 1007, I band.

Sonar: Indra-Raytheon-Thomson-Marconi SQQ 32, HF.

Countermeasures: Minehunting: 2 x ROV Pluto Plus.

Callsign: EBIN ()

Homeport: Cartagena.

Similar units:
