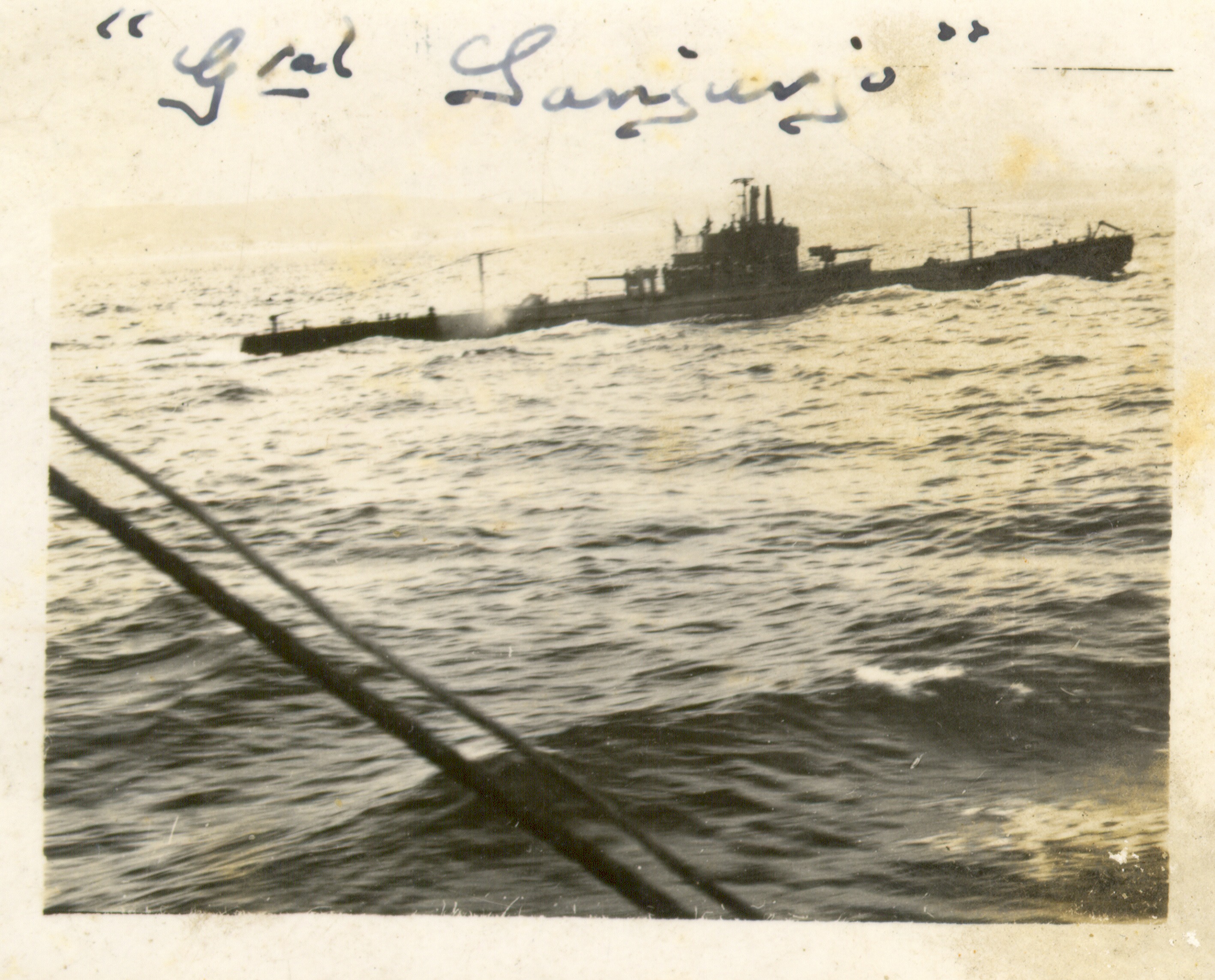

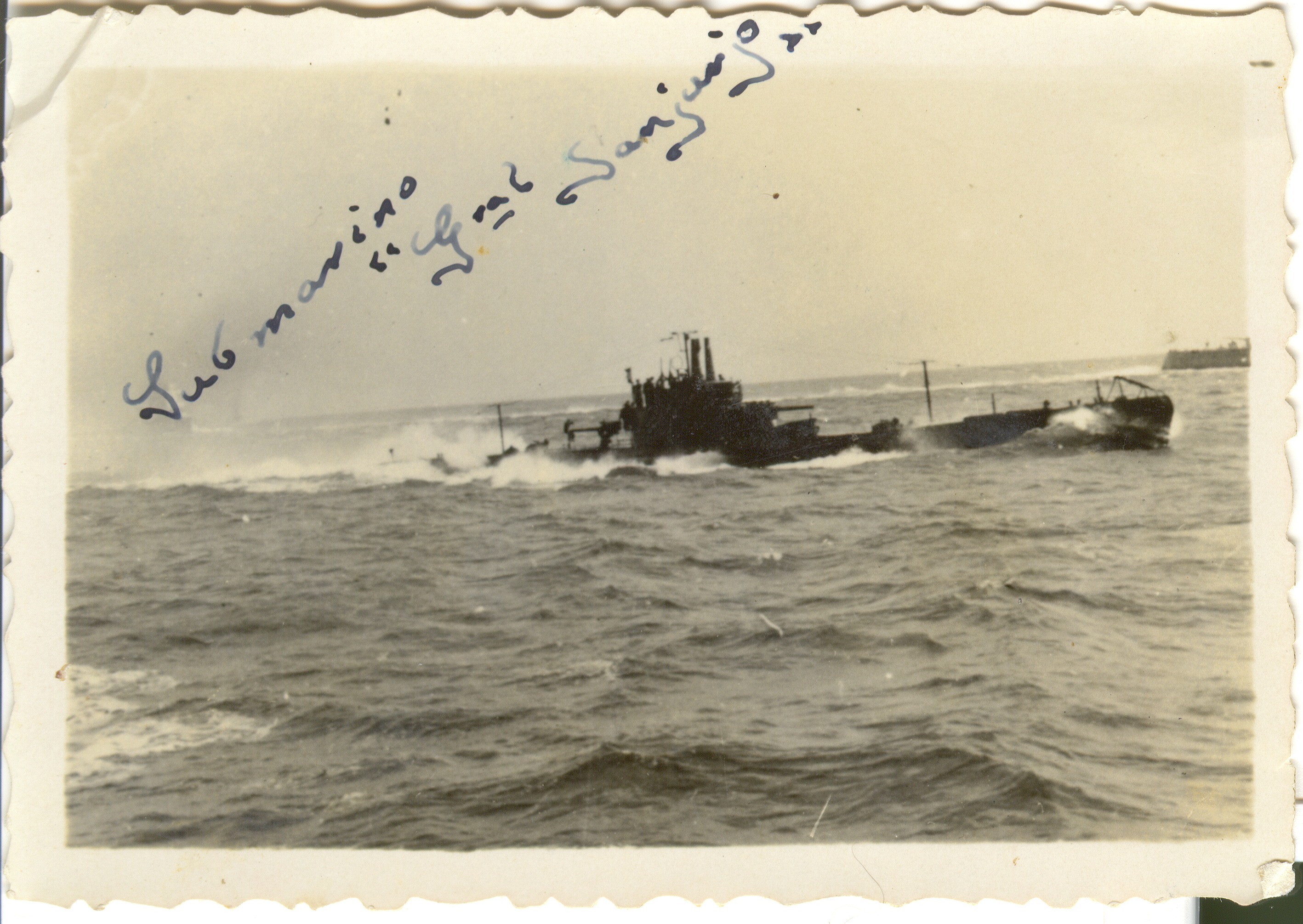

General Sanjurjo

Country:  Spain

Class, [Type]: General Mola - Archimede, [SS].

Builder: Tossi, Taranto, Italy.

Launch date: 27 May 1934.

Commission date: 20 April 1937.

Decommission date: 28 September 1959.

Displacement ( tons ): 985 surfaced, 1.250 submerged.

Dimensions ( metres ): 70,5 x 6,9 x 4,1

Main machinery: 2 x Fiat-Tossi diesel ( 1500 hp ).

Speed ( knots ): 17 surfaced, 7.7 submerged.

Range ( miles ): 10.300 at 8 knots surfaced, 105 at 3 knots submerged.

Complement: 55.

Guns: 2 x 100mm/47, 2 x 13mm.

Torpedoes: 8 x 533mm ( 4 x bow, 4 x stern ), 16 x torpedoes.

Comment: Ex - Torricelli.
