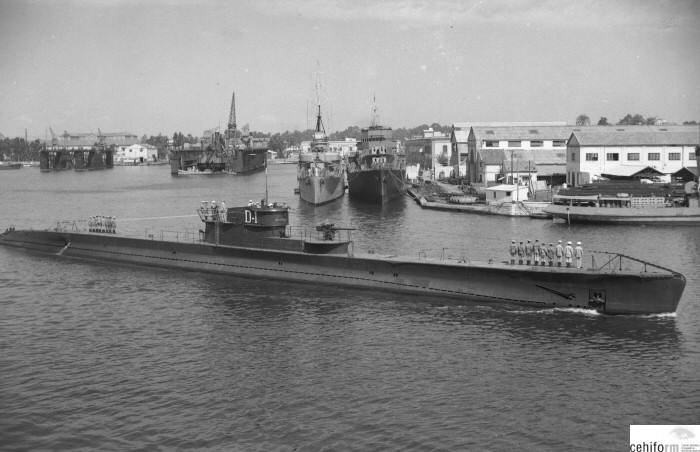

D-1

Country:  Spain

Class, [Type]: D, [SS].

Builder: SECN, Cartagena, Spain.

Launch date: 11 May 1944.

Commission date: 17 May 1947.

Decommission date: 05 February 1965.

Displacement ( tons ): 1.075 surfaced, 1.409 submerged.

Dimensions ( metres ): 84 x 6,63 x 4,06

Main machinery: 2 x Sulzer diesel ( 5.000 hp ), 2 x electric ( 1.300 hp ).

Speed ( knots ): 20 surfaced. 9,5 submerged.

Range ( miles ): 9.000 at 12 knots surfaced, 150 at 4,5 knots submerged.

Complement: 60.

Guns: 1 x 88mm, 1 x 20mm.

Torpedoes: 6 x 533mm tubes ( 4 forward + 2 aft ), 14 x Whitehead torpedoes.

Comment: Depth limit was 80m, although never went past 60m. Reclassified as S-11 in 1961.
