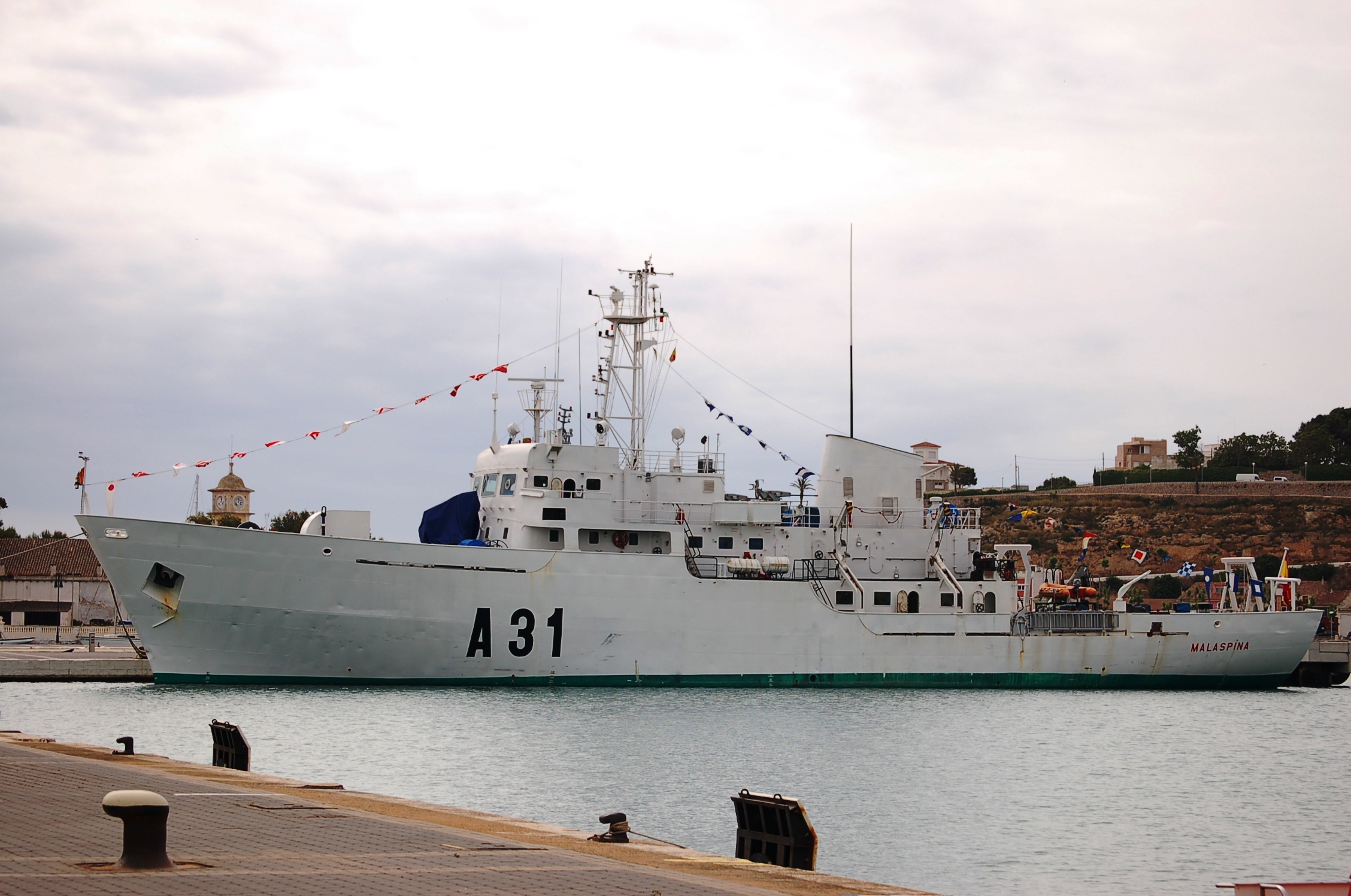

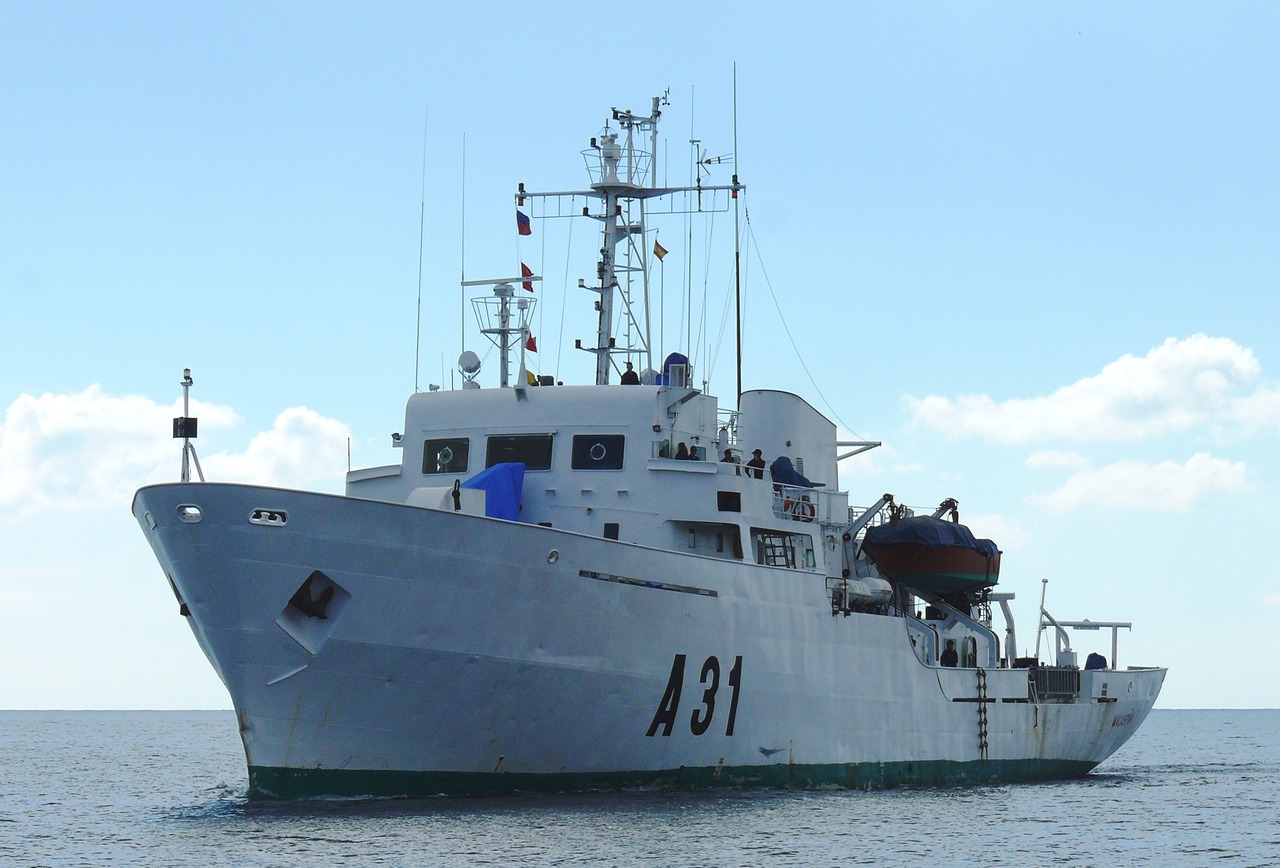

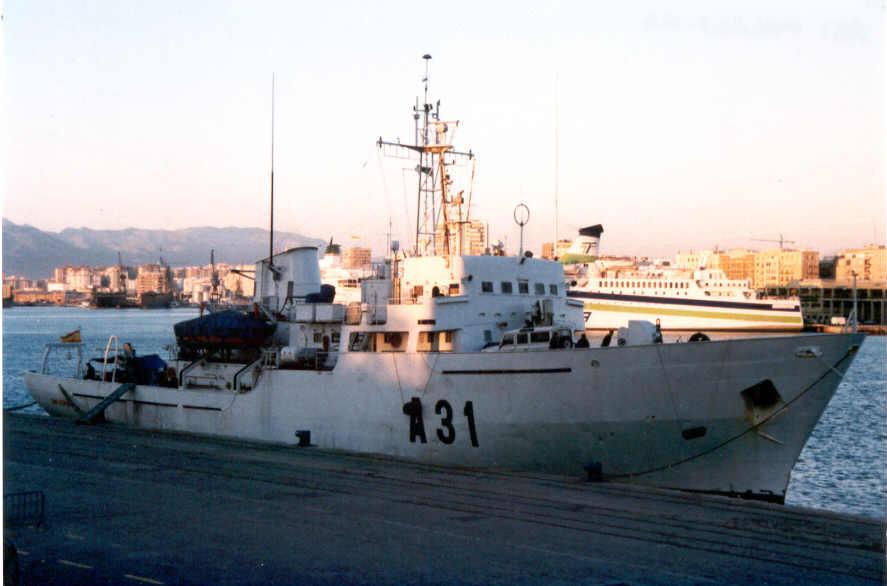

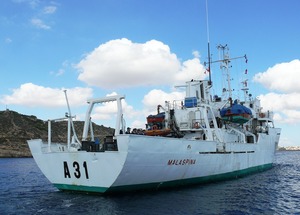

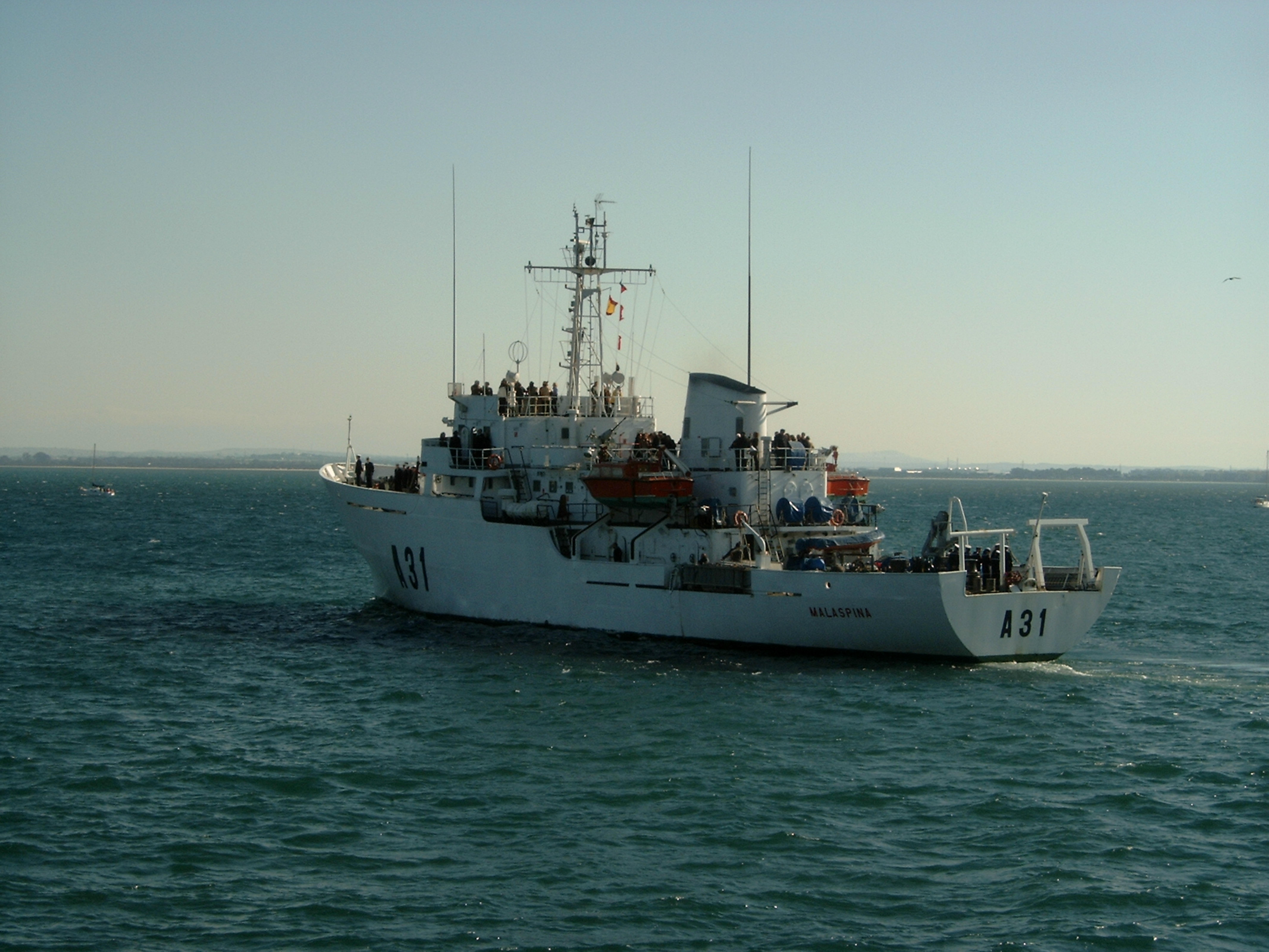

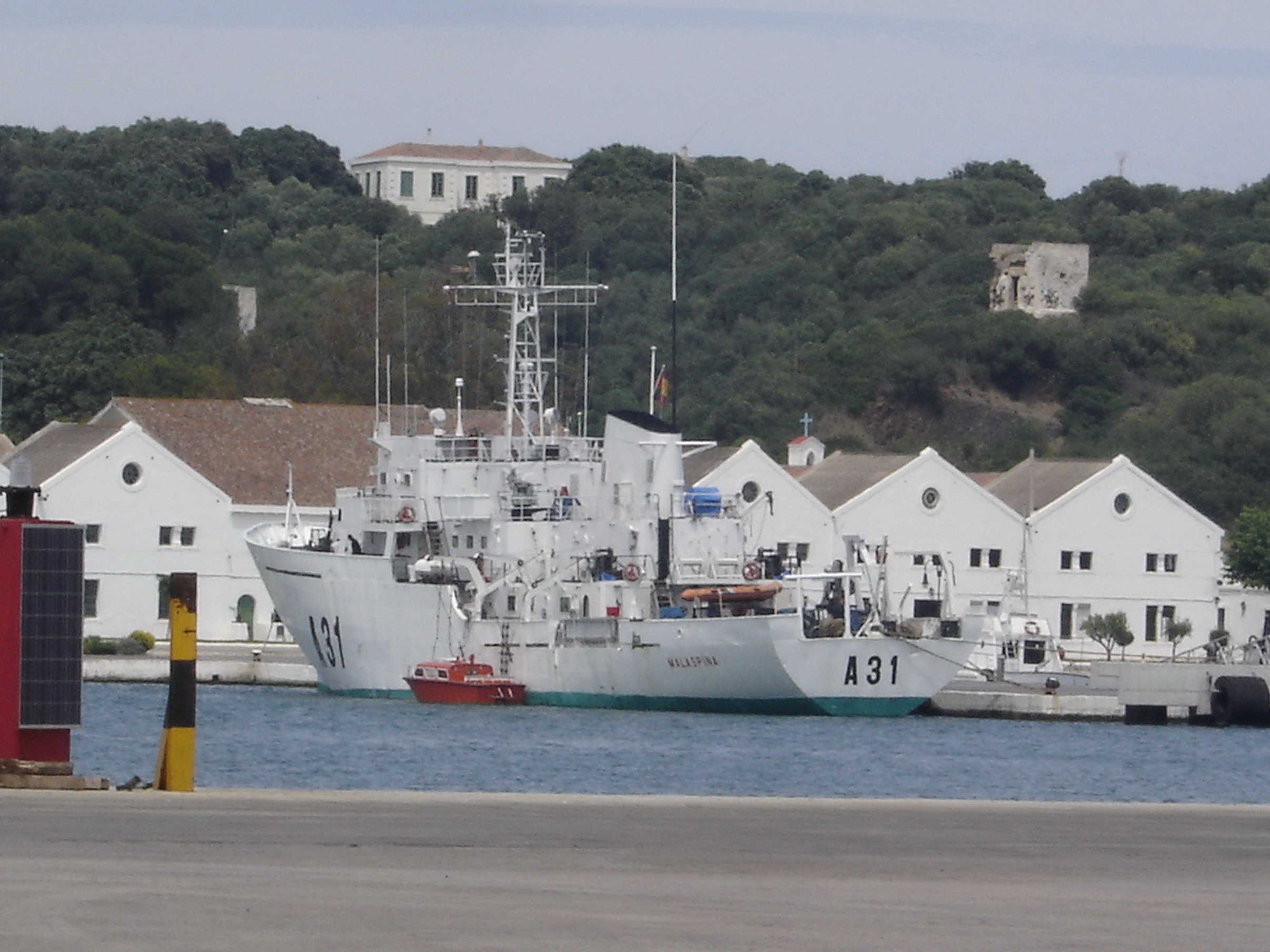

A-31 Malaspina

Country:  Spain

Class, [Type]: Malaspina, [AGS].

Builder: Bazán, La Carraca, Spain.

Launch date: 14 August 1973.

Commission date: 21 February 1975.

Displacement ( tons ): 820 standard, 1.090 full load.

Dimensions ( metres ): 57,6 x 11,7 x 3,9

Main machinery: 2 x San Carlos MWM TbRHS-345-61 diesels ( 3.600 hp ).

Speed ( knots ): 15.

Range ( miles ): 4.000 at 12 knots, 3.140 at 14,5 knots.

Complement: 63 ( 9 officers ).

Guns: 2 x Oerlikon 20mm.

Radar: Navigation: Raytheon 1220/6XB, I/J bands.

Callsign: EBHL ()

Homeport: La Carraca.

Similar units:

 A32 Tofiño
