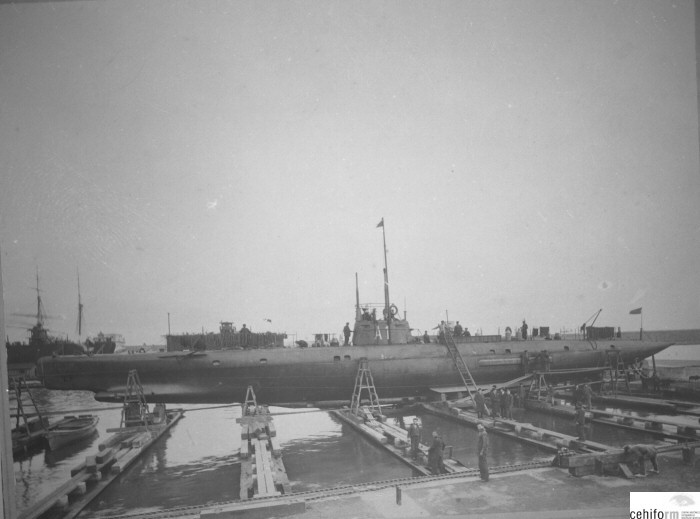

A-1 Narciso Monturiol

Country:  Spain

Class, [Type]: A (F Laurenti), [SS].

Builder: FIAT San Giorgio, Muggiano, Italy.

Launch date: 16 April 1917.

Commission date: 25 August 1917.

Decommission date: 01 January 1934.

Displacement ( tons ): 262 surfaced, 319 submerged.

Dimensions ( metres ): 45,63 x 4,22 x 3,11

Main machinery: 2 x FIAT diesel ( 700 hp ), 2 x Savigliano electric ( 500 hp ).

Speed ( knots ): 13,5 surfaced. 8,5 submerged.

Range ( miles ): 3.800 at 8,5 knots surfaced, 75 at 4 knots submerged.

Complement: 26.

Guns: 1 x 76mm, 1 x 6,5mm.

Torpedoes: 2 x 450mm tubes ( 2 forward ), 4 x torpedoes.

Comment: Depth limit was 45m.
