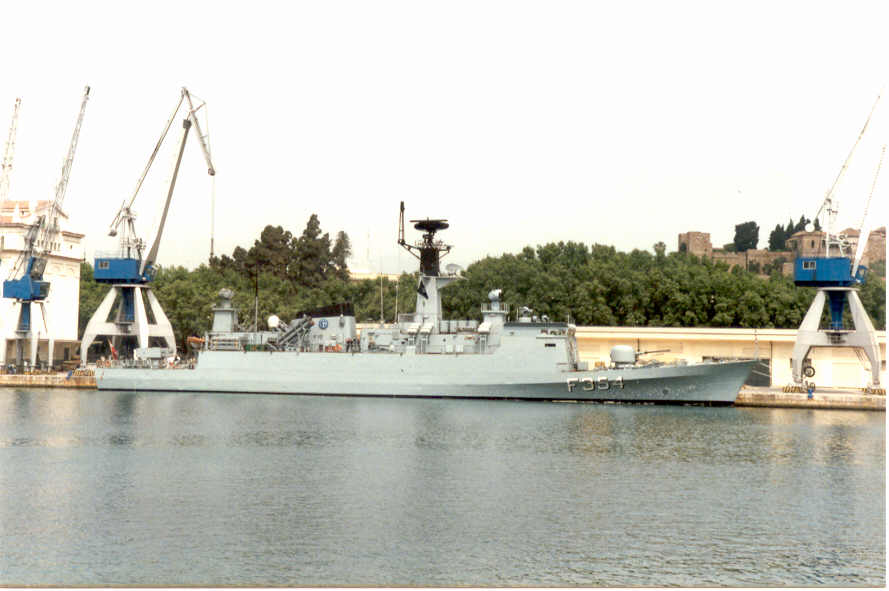

Eugenio´s Warships - F-354 Nils Juel

Country: Denmark Denmark

Class, [Type]: Type KV 72.

Builder: Aalborg Vaerft, Denmark.

Launch date: 17 February 1978.

Commission date: 26 August 1980.

Decommission date: 18 August 2009.

Displacement ( tons ): 1.320 full load.

Dimensions ( metres ): 84 x 10,3 x 3,1

Main machinery: CODOG: 1 x GE LM 2500 gas turbine ( 24.600 hp ), 1 x MTU 20 V956 TB82 diesel ( 5.210 hp ).

Speed ( knots ): 30 ( gas ), 20 ( diesel ).

Range ( miles ): 800 at 28 knots, 2.500 at 18 knots.

Complement: 98 ( 18 officers ).

Guns: 1 x OTO Melara 76mm/62 Compact.

Missiles: SSM: 8 x McDonnell Douglas Harpoon ( two quad launchers ); SAM: 12 x Raytheon Sea Sparrow, from up to 4 x Mk48 Mod 3 VLS launchers.

Torpedoes: Carries no torpedoes, but depth charges.

Radar: Air: TST TRS-3D, G/H bands; Surface: Philips 9GR 600, I band; Fire Control: 2 x Mk95, I/J bands ( SAM ), Philips 9LV 200, J band ( cannons and SSM ); Navigation: Elektronic Scanter Mil 009, E/I bands; Fire Control: 1 x General Dynamics Mk95 system ( 2 x directors ).

Sonar: Plessey PMS 26, hull mounted, active search and attack modes, 10khz.

Countermeasures: ESM: Racal Cutlass B-1 intercept; Telegon HFD/F; Decoys: 2 x Thorn-EMI DL 12-T launchers.

Callsign: OUER ( Oscar Uniform Echo Romeo )
