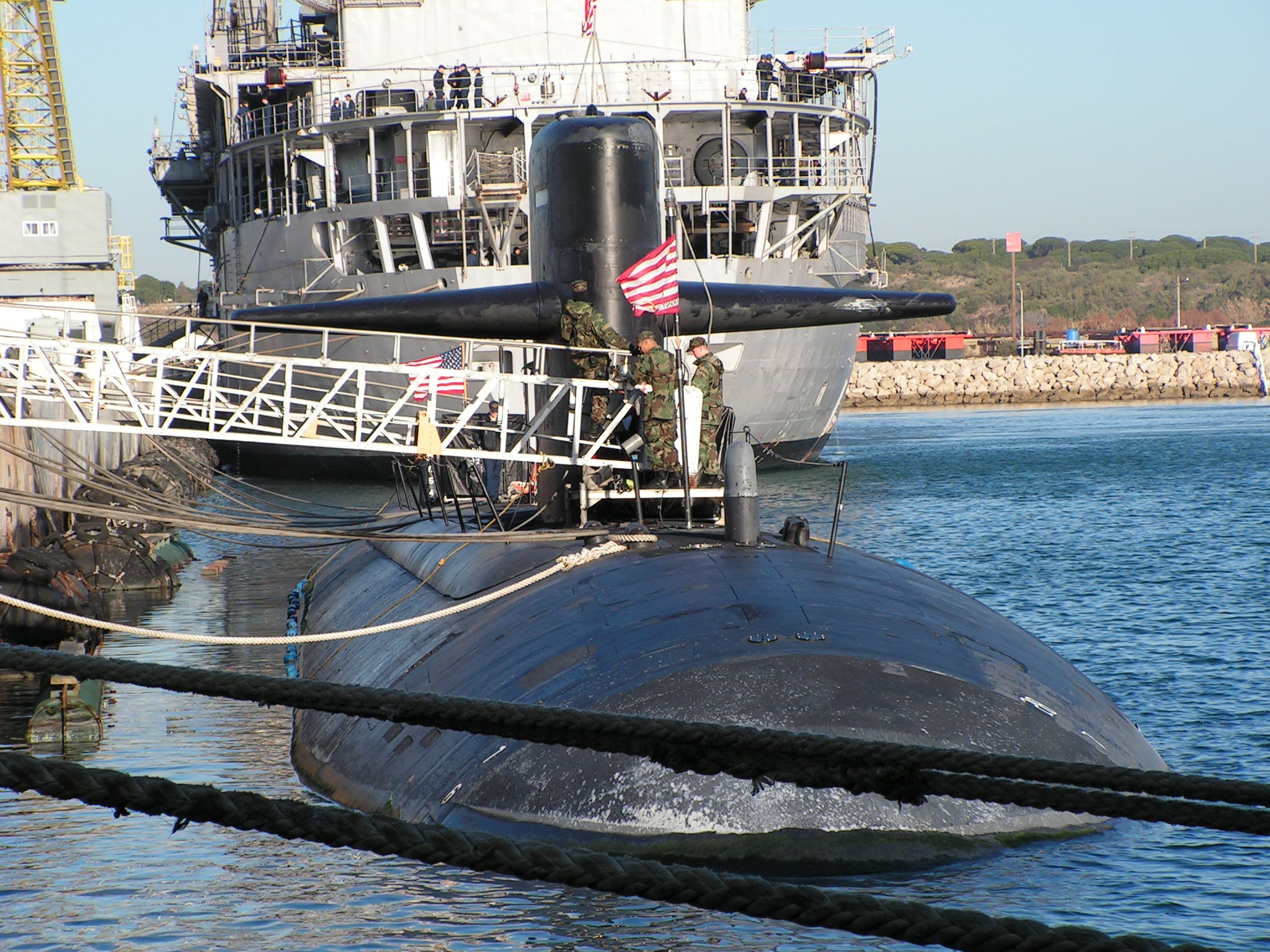

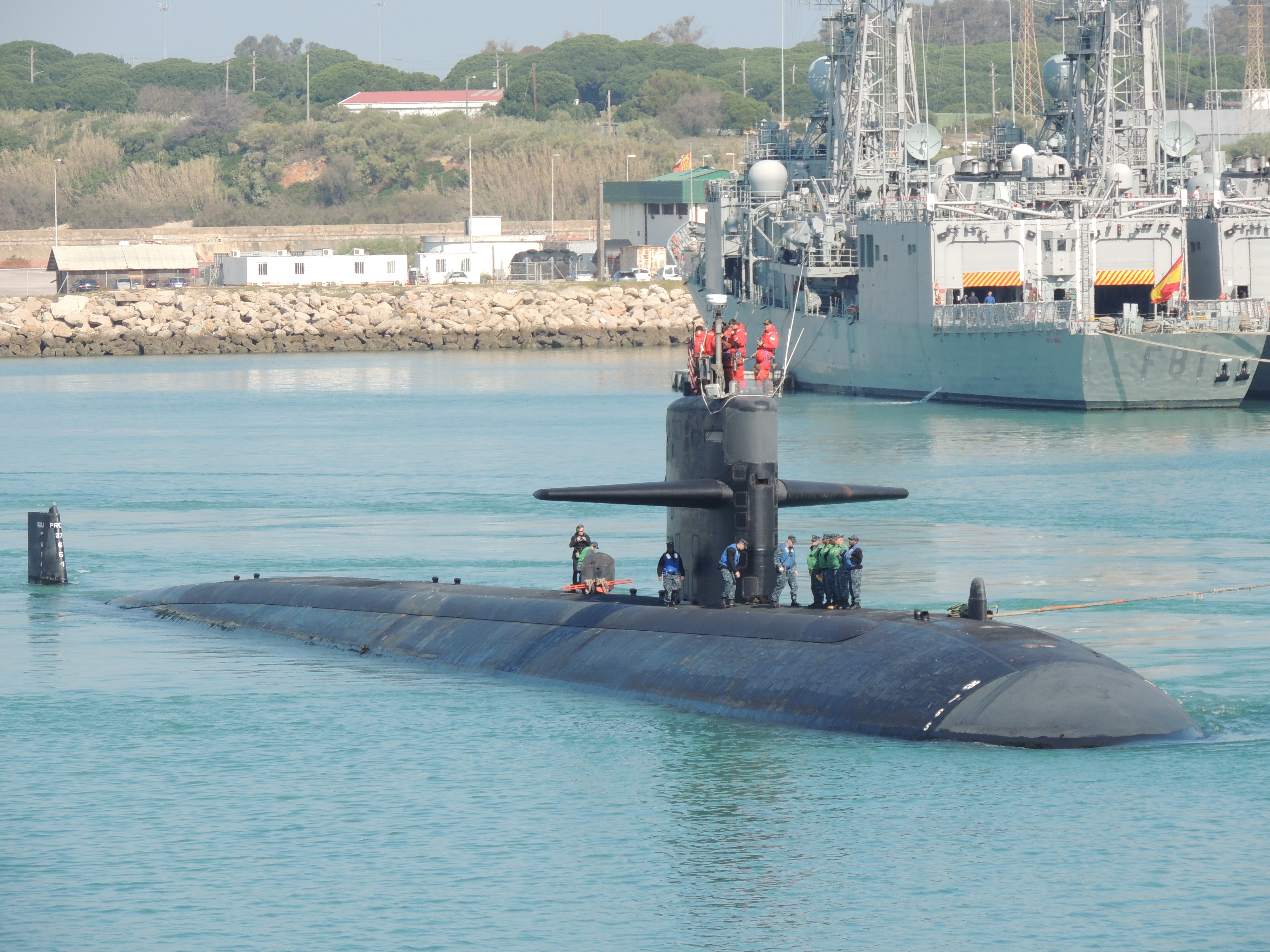

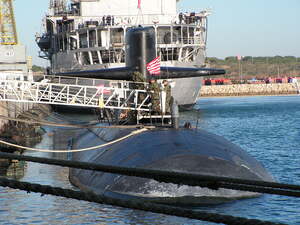

SSN-714 Norfolk

Country:  United States

Class, [Type]: Los Angeles, [SSN].

Builder: Newport News, Virginia, U.S.A.

Launch date: 31 October 1981.

Commission date: 21 May 1983.

Decommission date: 11 December 2014.

Displacement ( tons ): 6.082 tons surfaced, 6.927 tons submerged.

Dimensions ( metres ): 110 x 10 x 9,4

Main machinery: G.E. S6G pressurized-water reactor ( 35.000 hp ), 1 x prop.

Speed ( knots ): +30.

Range ( miles ): 30 years.

Complement: 110 ( 12 officers ).

Torpedoes: 4 x 533mm Mk67 tubes (26 x Tomahawk missiles, ? x Harpoon missiles, Mk48 and Mk48 ADCAP torpedoes).

Mines: Mk60 or Mk67.

Radar: Navigation/Surface Search: 1 x BPS-5.

Sonar: BQQ-5A(V)1 suite; BQS-15 under-ice active, BQR-15 towed array, BQG-5D WAA flank arrays.

Countermeasures: Decoys: CSA Mk1 Mod2 acoustic decoy launchers; EW: BRD-7; D/F WLR-8(V)2; WLR-10; WLR-9/12; WLR-1H; WSQ-5.

Callsign: NNVA ()

Awards (as of 11/12/2014):
