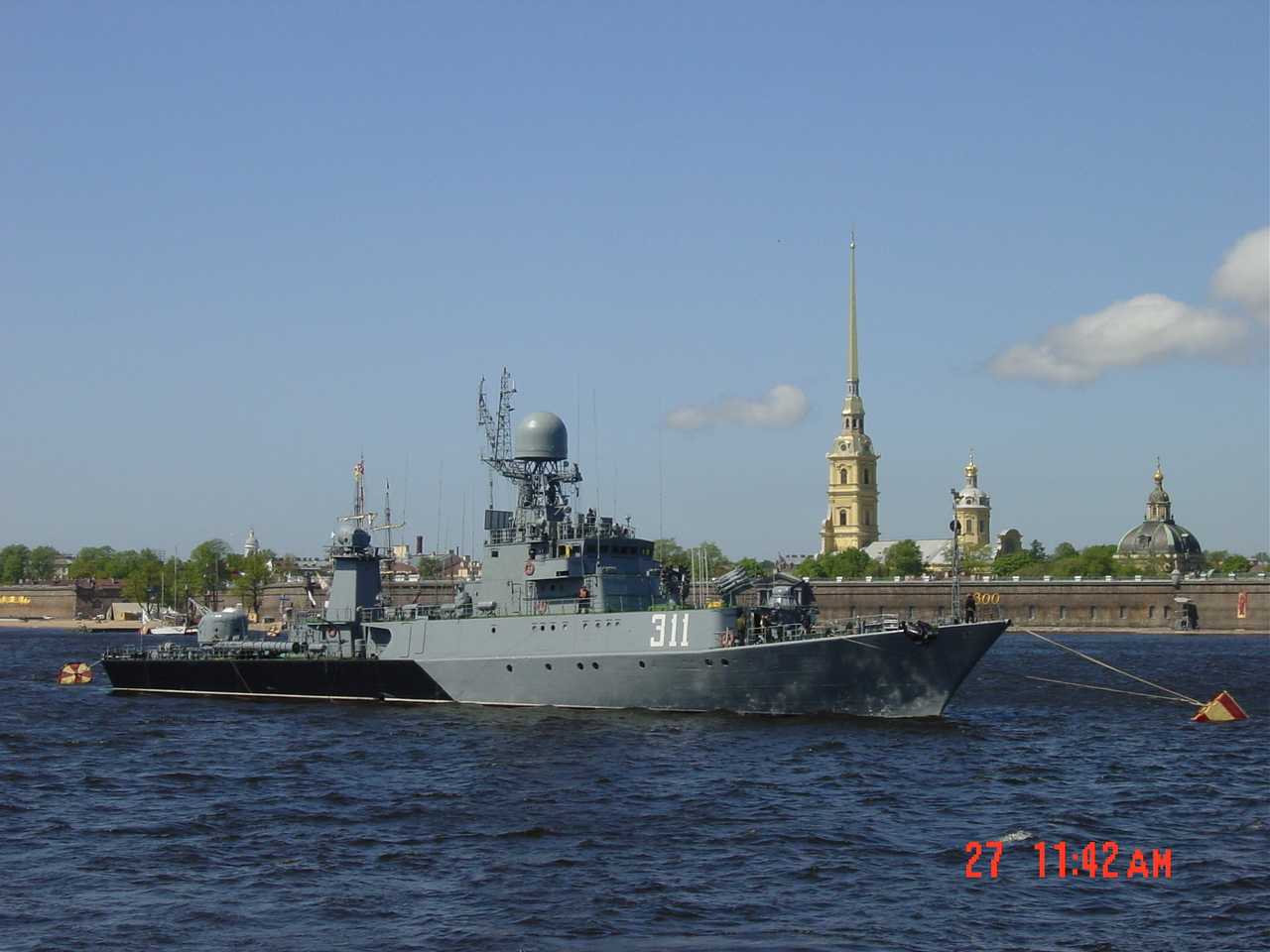

311 MPK-205 Kazanets

311 MPK-205 Kazanets

Country: Russia Russia

Class, [Type]: Parchim II, [FFL].

Builder: Peenewerft, Wolgast, Germany.

Launch date: 28 December 1985.

Commission date: 11 April 1986.

Displacement ( tons ): 935 full load.

Dimensions ( metres ): 75,2 x 9,78 x 4,55

Main machinery: 3 x Type M-504A-3 diesels ( 14.250 hp ).

Speed ( knots ): 24,5.

Range ( miles ): 1.200 at 20 knots, 2.200 at 12 knots.

Complement: 80 ( 9 officers ).

Guns: 1 x 76,2mm/59 AK-176, 1 x 30mm AK-630.

Missiles:  SAM: 2 x Strela-3, 4 round ( SA-N-8 ) ( 24 x Gremlin missiles ).

Torpedoes: 4 x 533mm torpedo tubes.

Mines: 2 x mine rails. 12 x depth charges.

A/S Mortars: 2 x RBU-6000 ( 96 x RGB-60 rockets ).

Radar: Air/Surface: 1 x MR-352 Pozitiv ( Cross Dome ); Navigation: 1 x Mius ( Spin Through ); Fire Control: 1 x MR-123 Vympel ( Bass Tilt ).

Sonar: MGK-335MC ( Bull Horn ), hull-mounted; Ros’-K, high frequency dipping sonar.

Countermeasures: Decoys: 2 x 16 tubes launchers for chaff; ESM: Vympel-R2 suite: 2 Bizan’-4 (Watch Dog) intercept.
