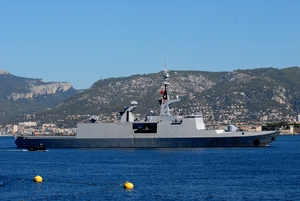

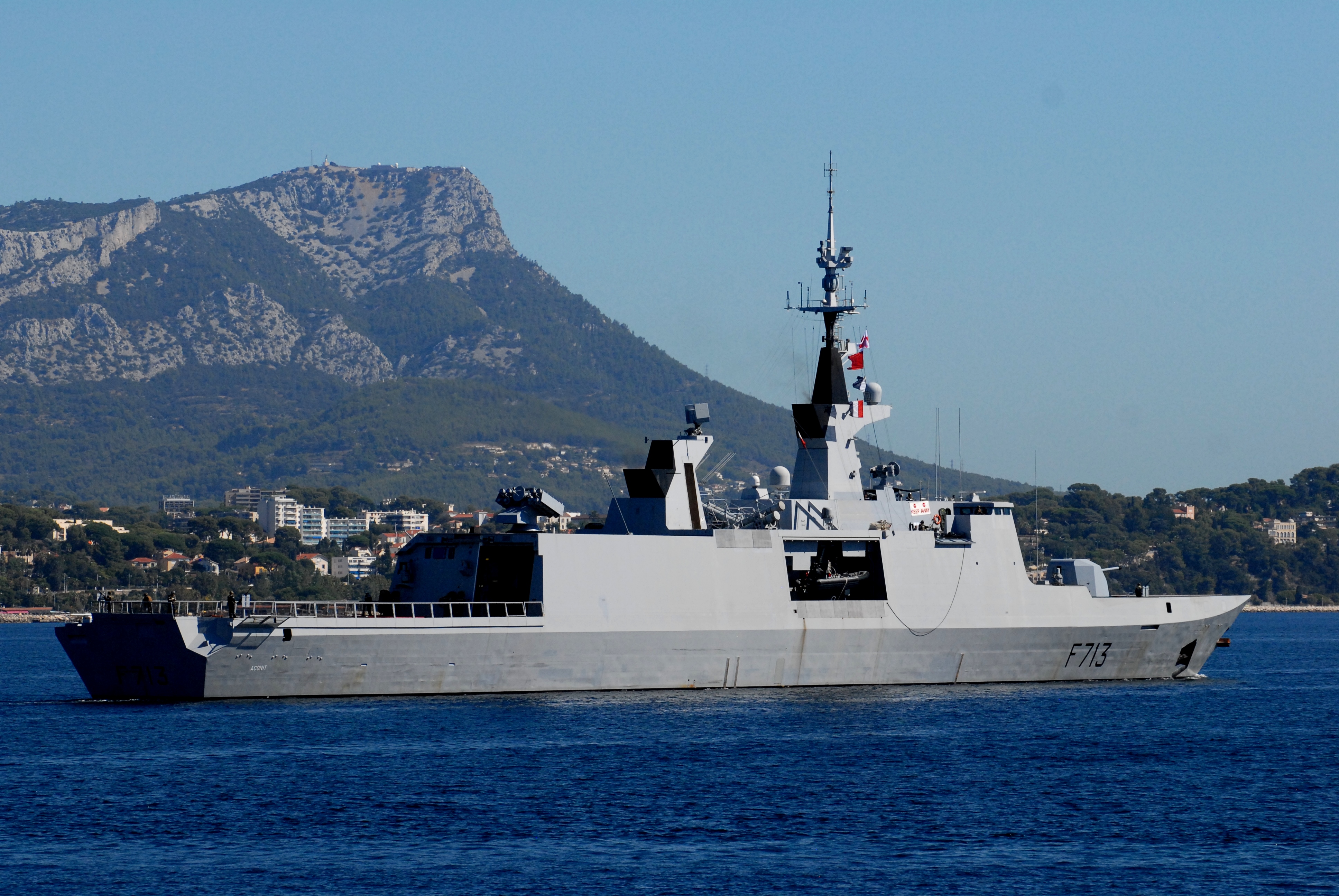

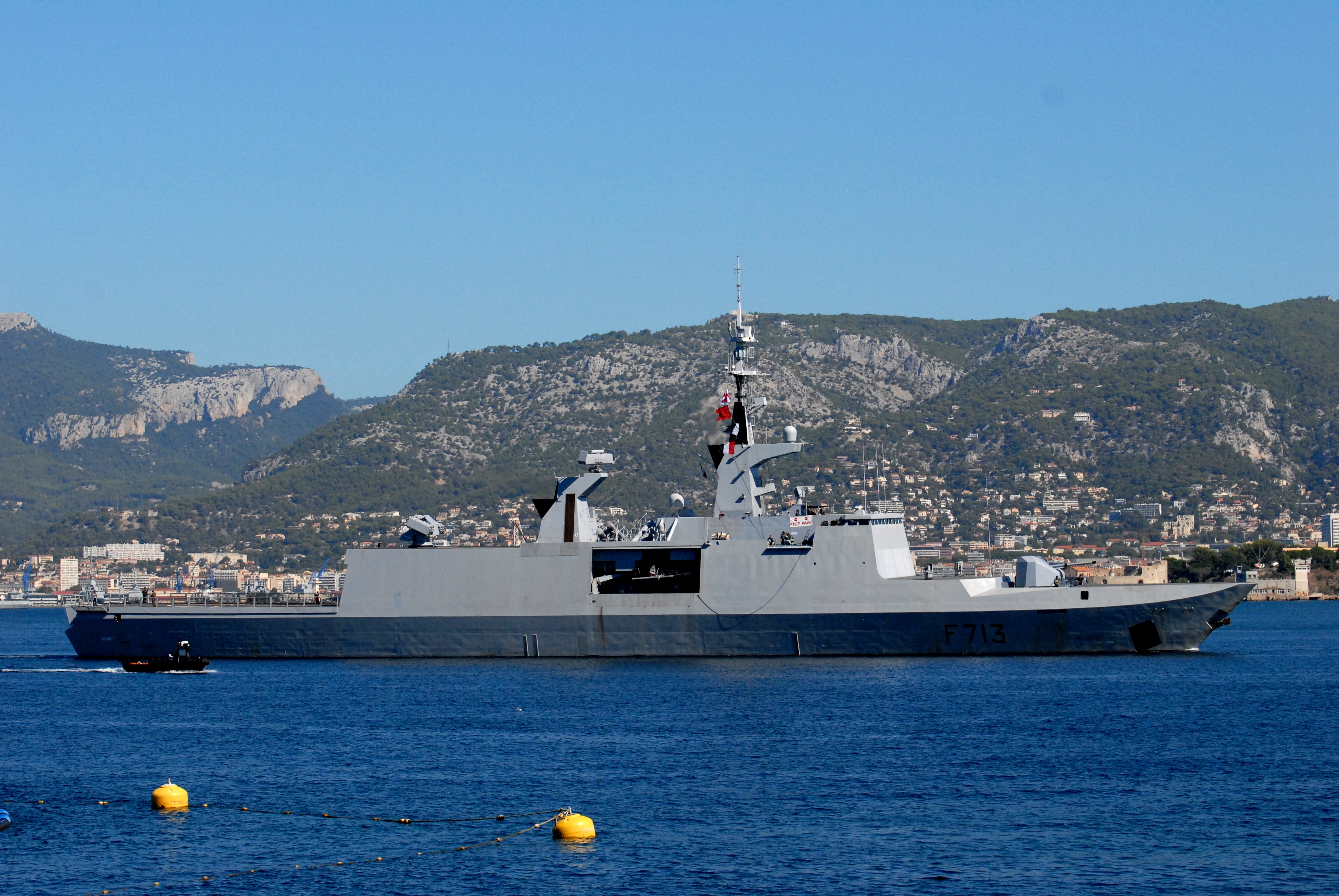

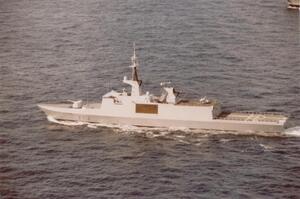

F-713 Aconit

Country:  France

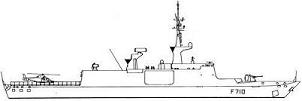

Class, [Type]: La Fayette, [FF].

Builder: DCN, Lorient, France.

Launch date: 08 July 1997.

Commission date: 03 June 1999.

Displacement ( tons ): 3.200 standard, 3.600 full load.

Dimensions ( metres ): 124.2 x 15,4 x 4.1

Main machinery: 4 x SEMT-Pielstick 12 PA6 V280 STC diesels ( 21.000 hp ).

Speed ( knots ): 25.

Range ( miles ): 7.000 at 15 knots, 9.000 at 12 knots.

Complement: 153 ( 15 officers ) + 25 commandos.

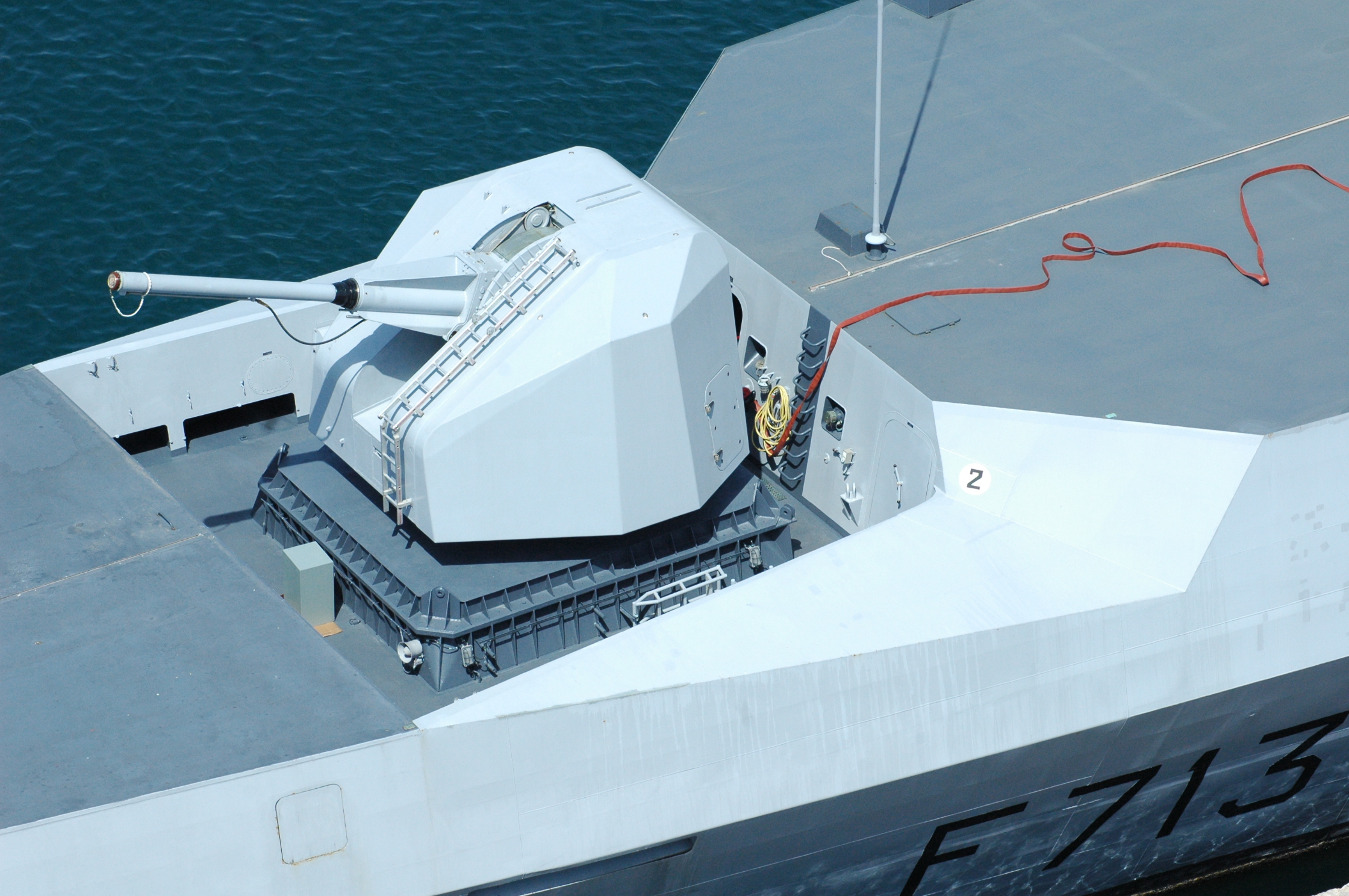

Guns: 1 x 100mm/55 Model 1968 CADAM, 2 x GIAT F2 20mm/90, 2 x 12,7mm.

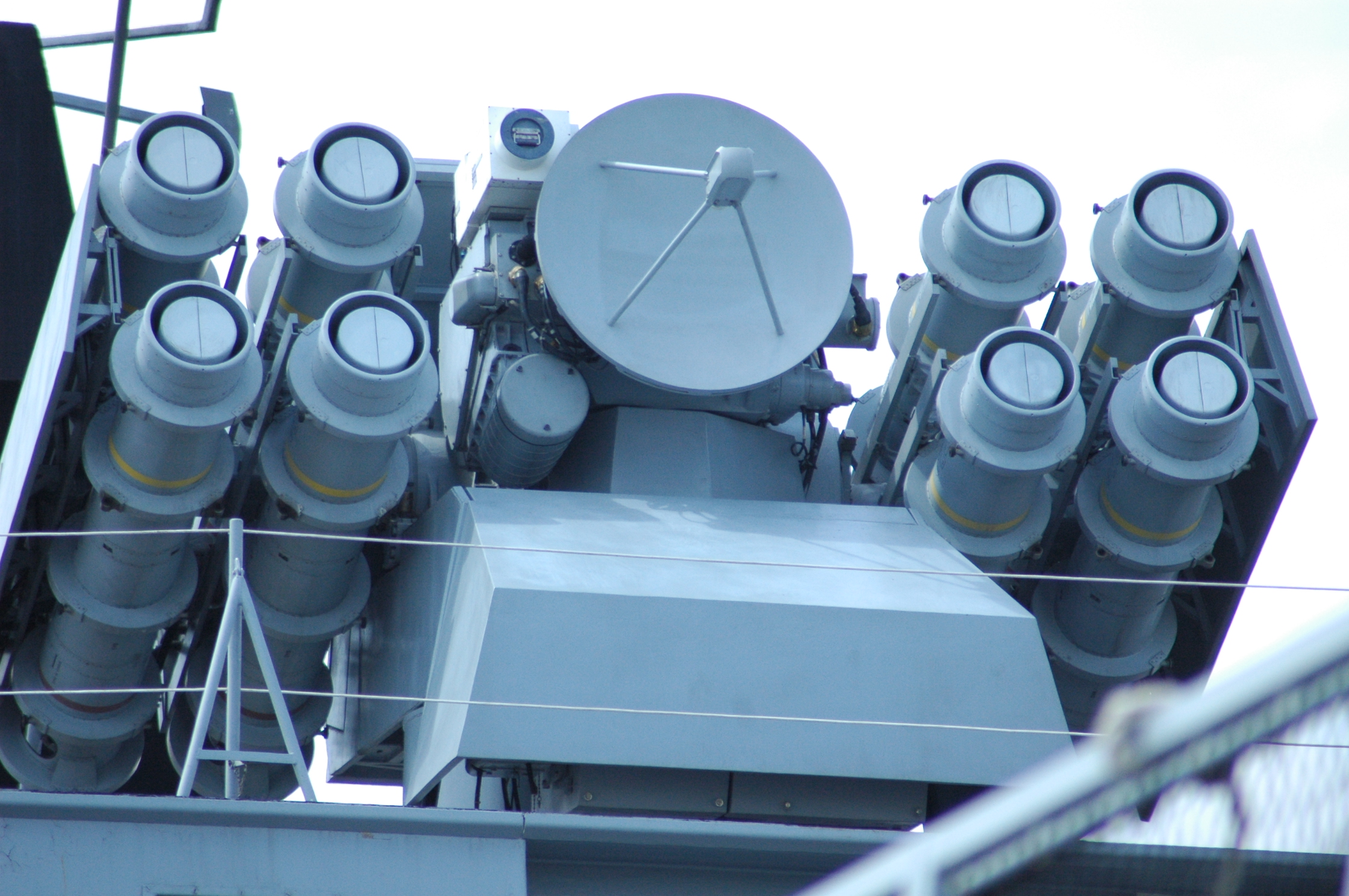

Missiles:  SSM: 8 x MM 40 Exocet Block 2 SSM; SAM: 1 x Crotale CN2 ( 24 x VT-1 missiles ).

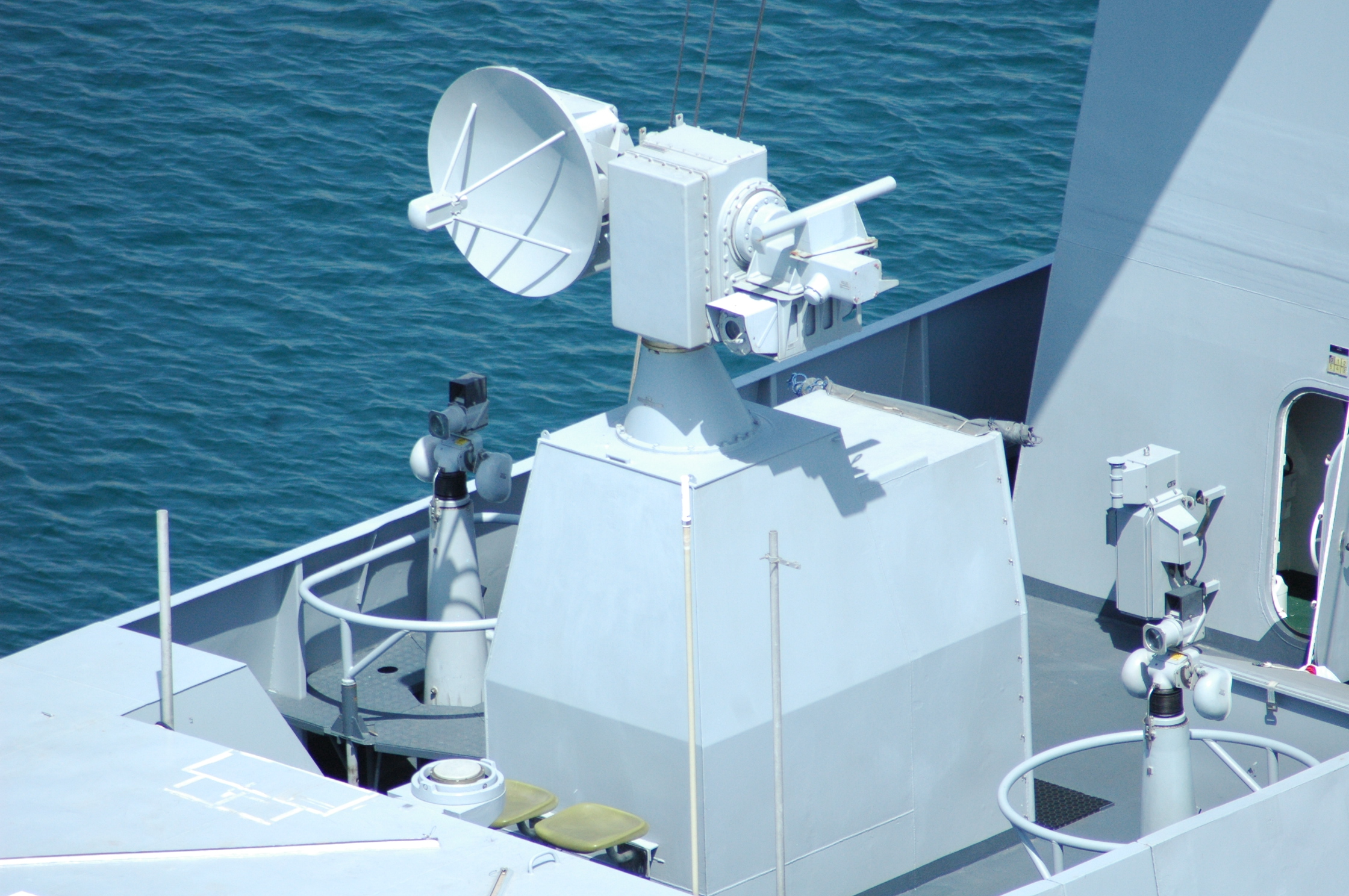

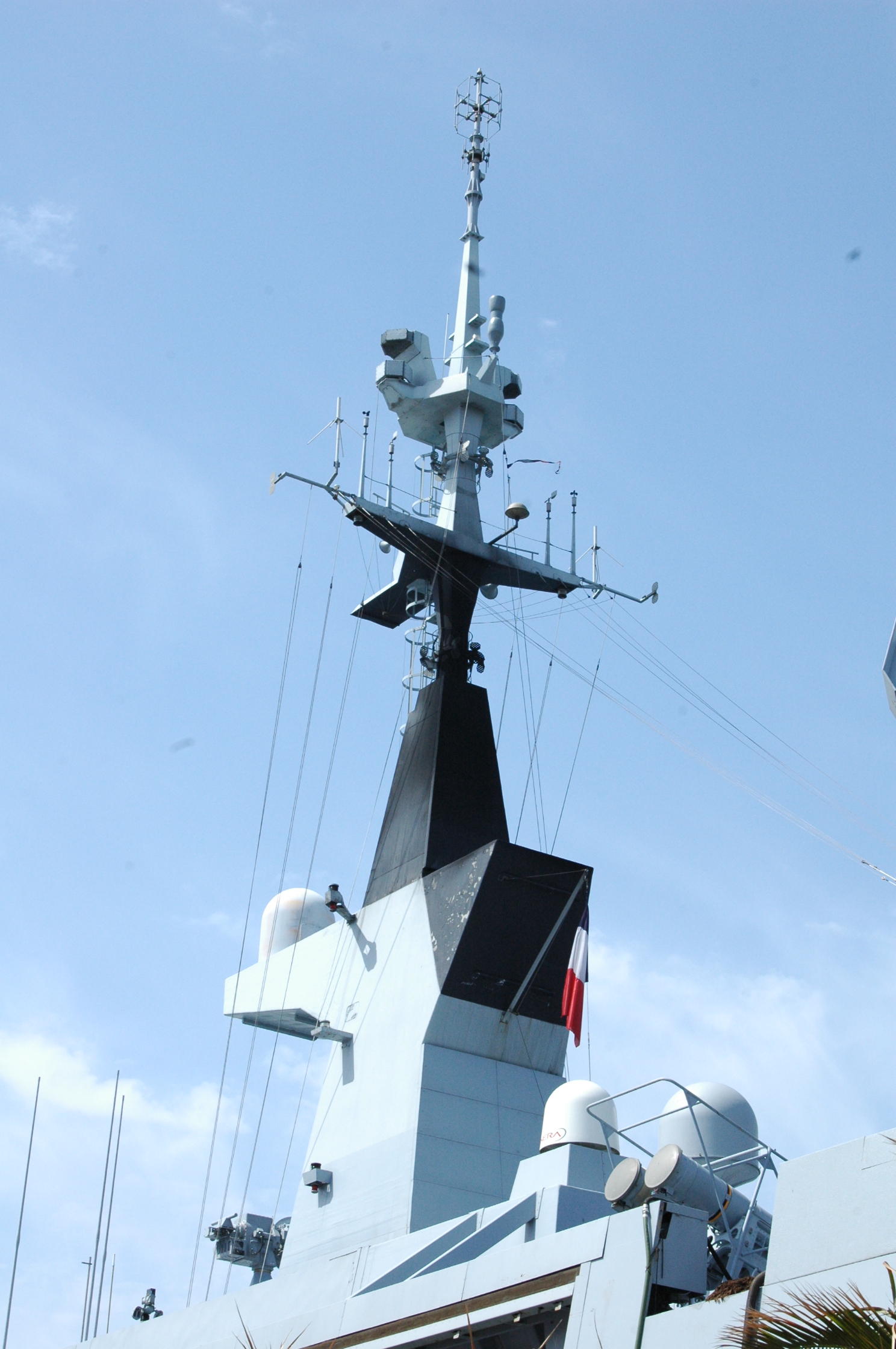

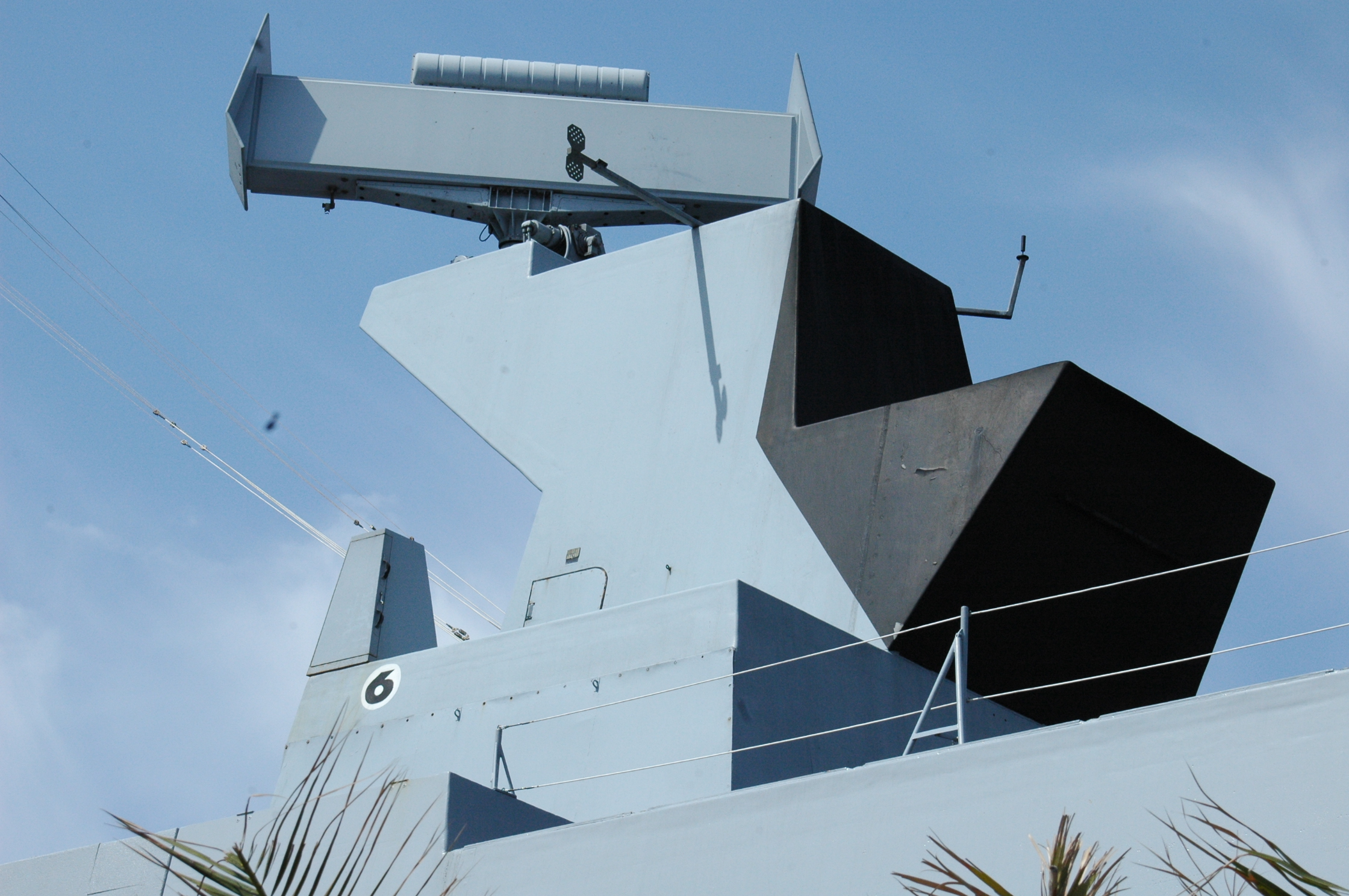

Radar: Air/Surface search: 1 x DRBV-15C 3-D; Navigation: 2 x Decca 20V90; Fire Control: 1 x Castor-IIJ, 1 x Crotale.

Countermeasures: Decoys: 2 x AMBL-1C Dagaie Mk 2 launchers, SLQ-25 Nixie towed acoustic torpedo decoy; ECM/ESM: ARBR-21 ( intercept ), ARBB-33 Salamandre ( jammer), ARBG-2 Maigret.

Helicopter: 1 x AS.565MA Panther.

Callsign: FBAT ()

Comment: Ex - Jauréguiberry.

Similar units:

 F710 La Fayette
 F711 Surcouf
 F712 Courbet
 F714 Guépratte
