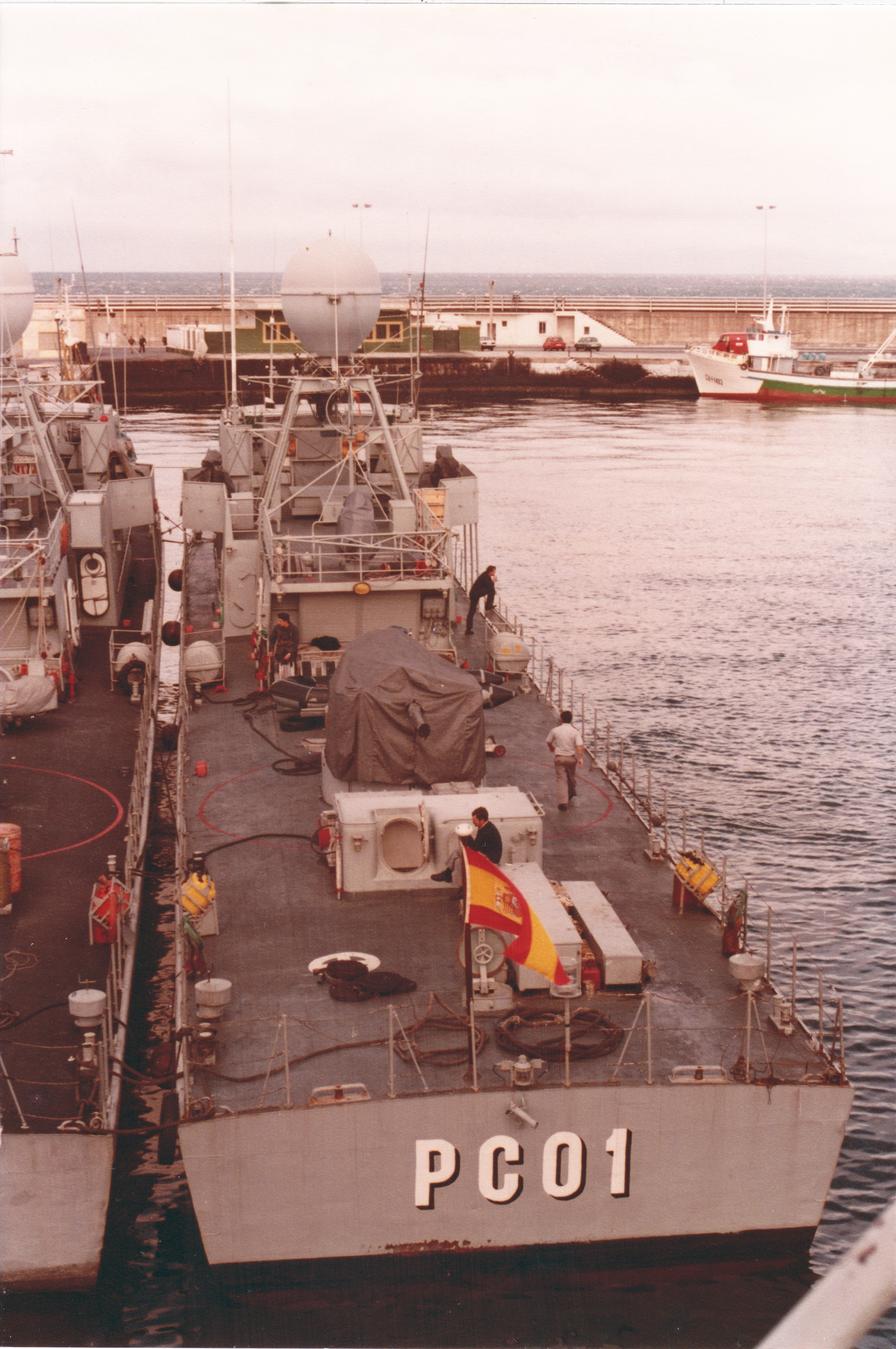

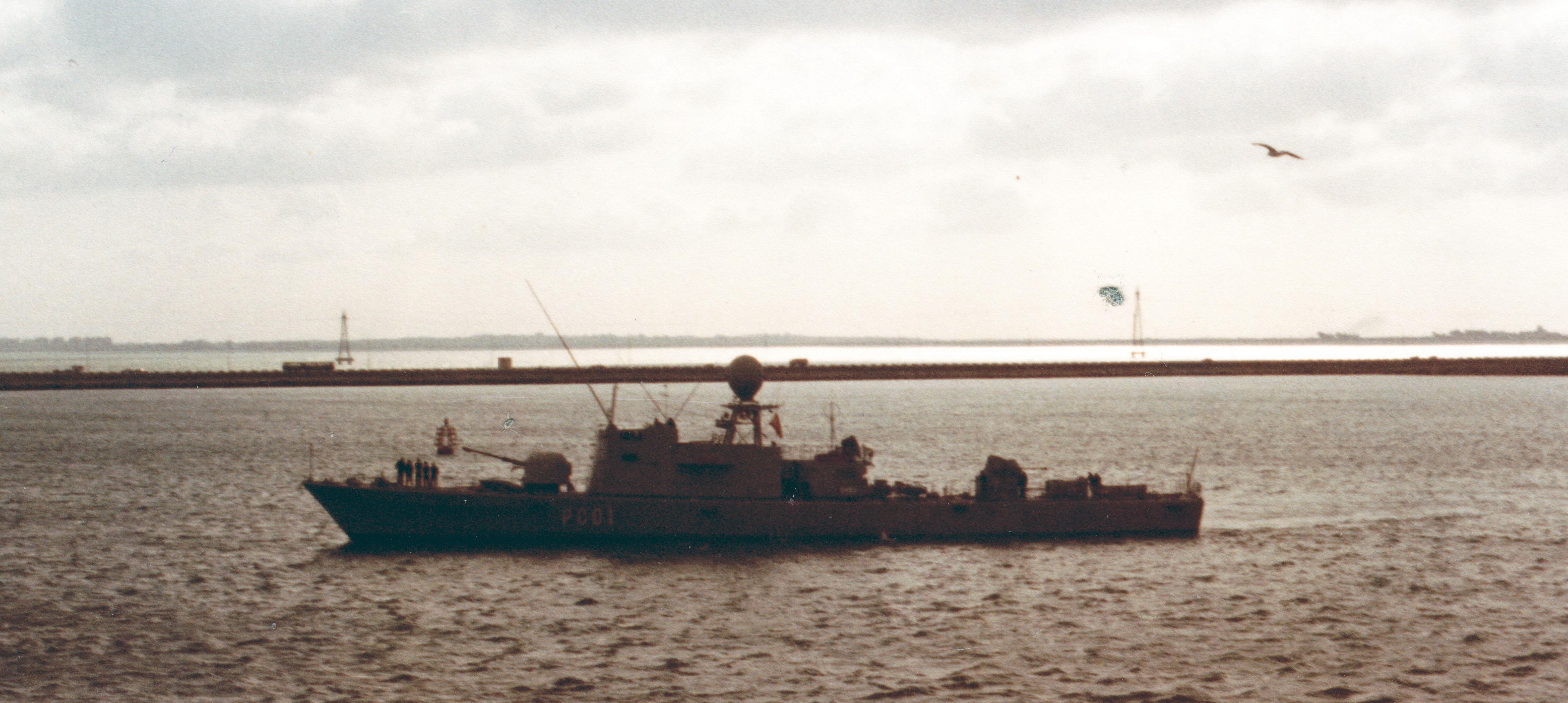

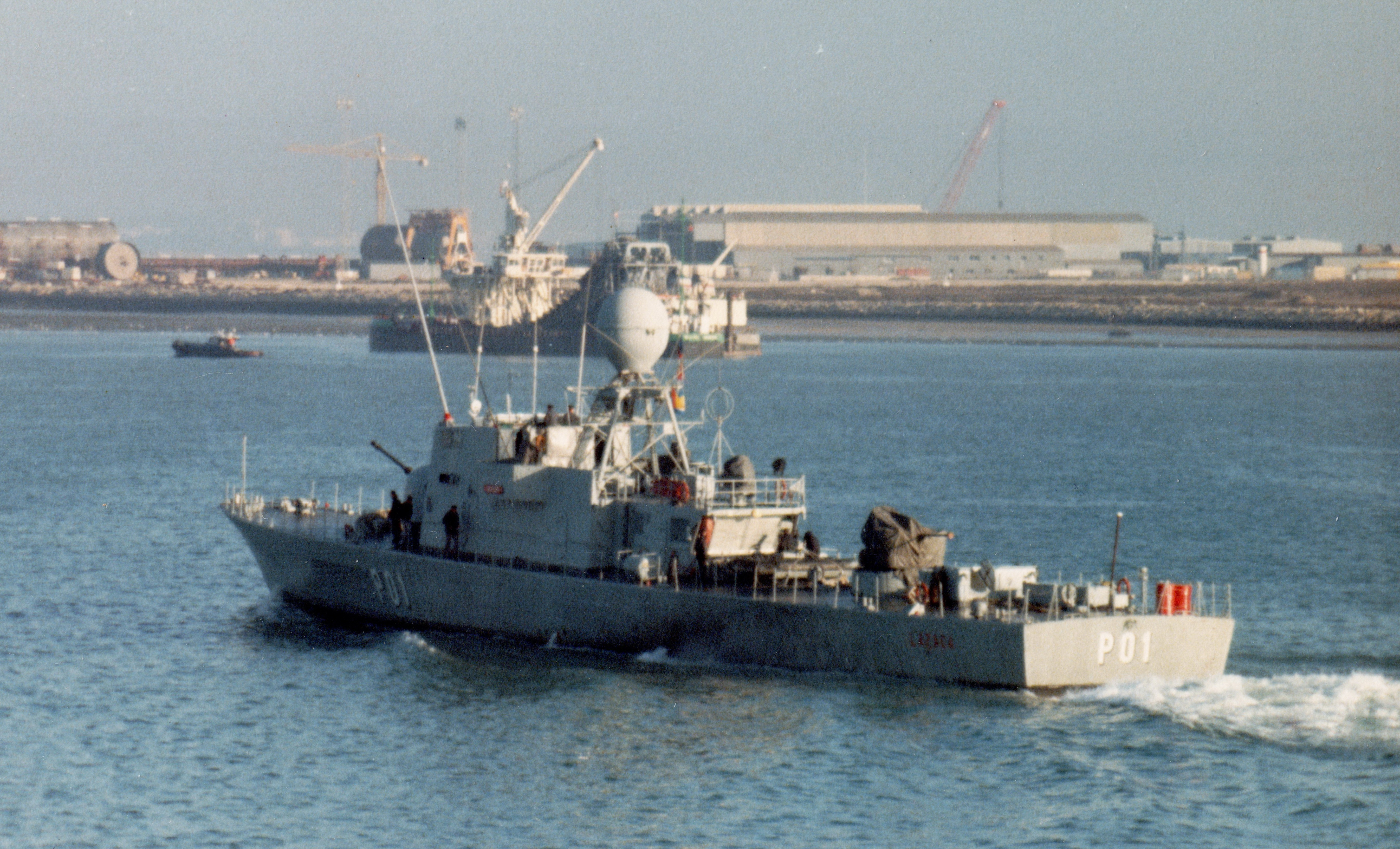

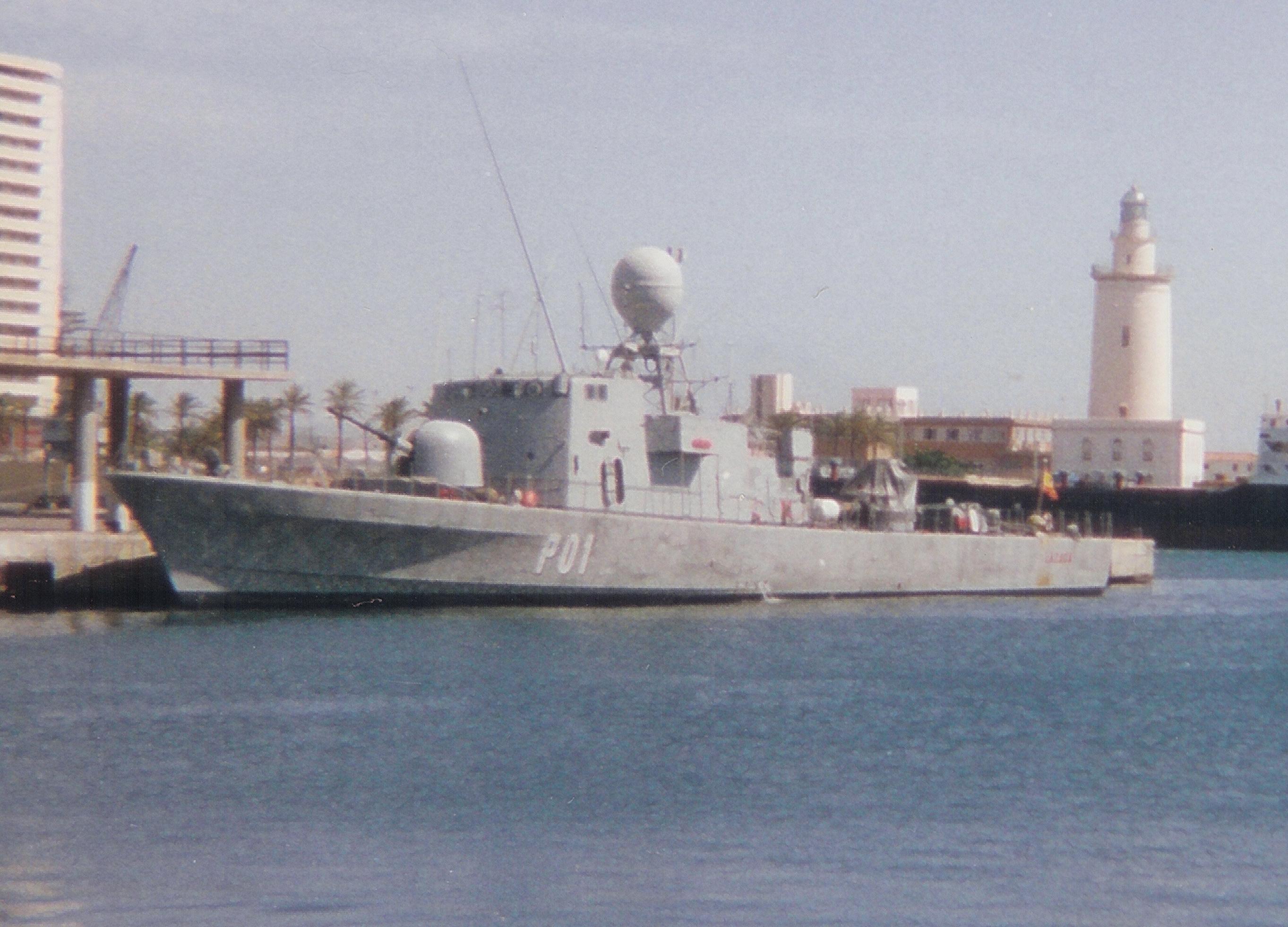

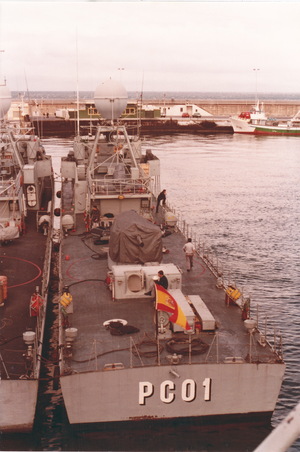

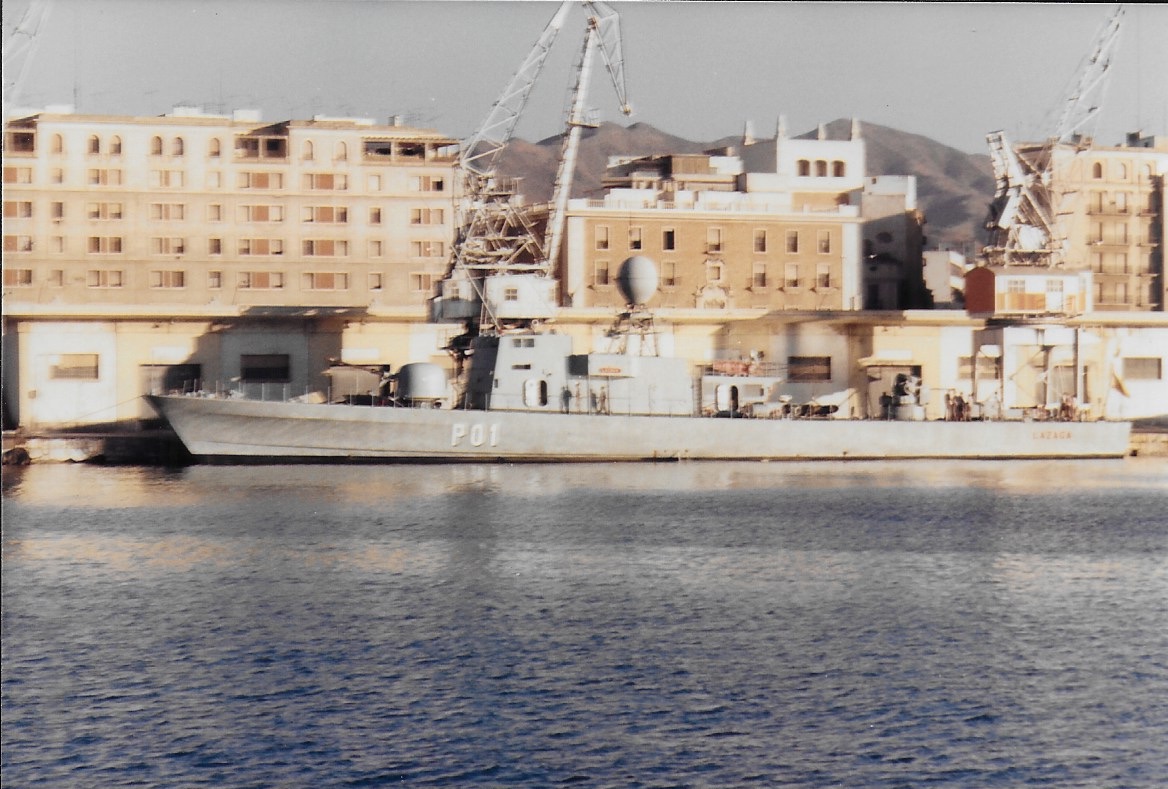

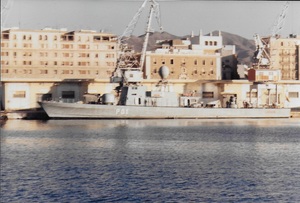

P-01 Lazaga

Country:  Spain

Class, [Type]: Lazaga, [PFG].

Builder: Lürssen Werft, Vegesack, Germany.

Launch date: 30 September 1974.

Commission date: 16 July 1975.

Decommission date: 30 June 1993.

Displacement ( tons ): 275 standard, 399 full load.

Dimensions ( metres ): 58,1 x 7,6 x 2,6

Main machinery: 2 x Bazán MTU MA15 TB91 diesels ( 8.000 hp ).

Speed ( knots ): 31.

Range ( miles ): 6.100 at 17 knots.

Complement: 34 ( 4 officers ).

Guns: 1 x OTO Melara 76mm/62, 1 x Bofors 40mm/70, 2 x Oerlikon 20mm.

Military lift: 150 tm gasoil.

Radar: Surface search and target acquisition: 1 x WM-22; Navigation: 1 x TM 1620/6X.

Callsign: EBES ()

Similar units:

 P02 Alsedo
 P03 Cadarso
 P04 Villamil
 P05 Bonifaz
 P06 Recalde
