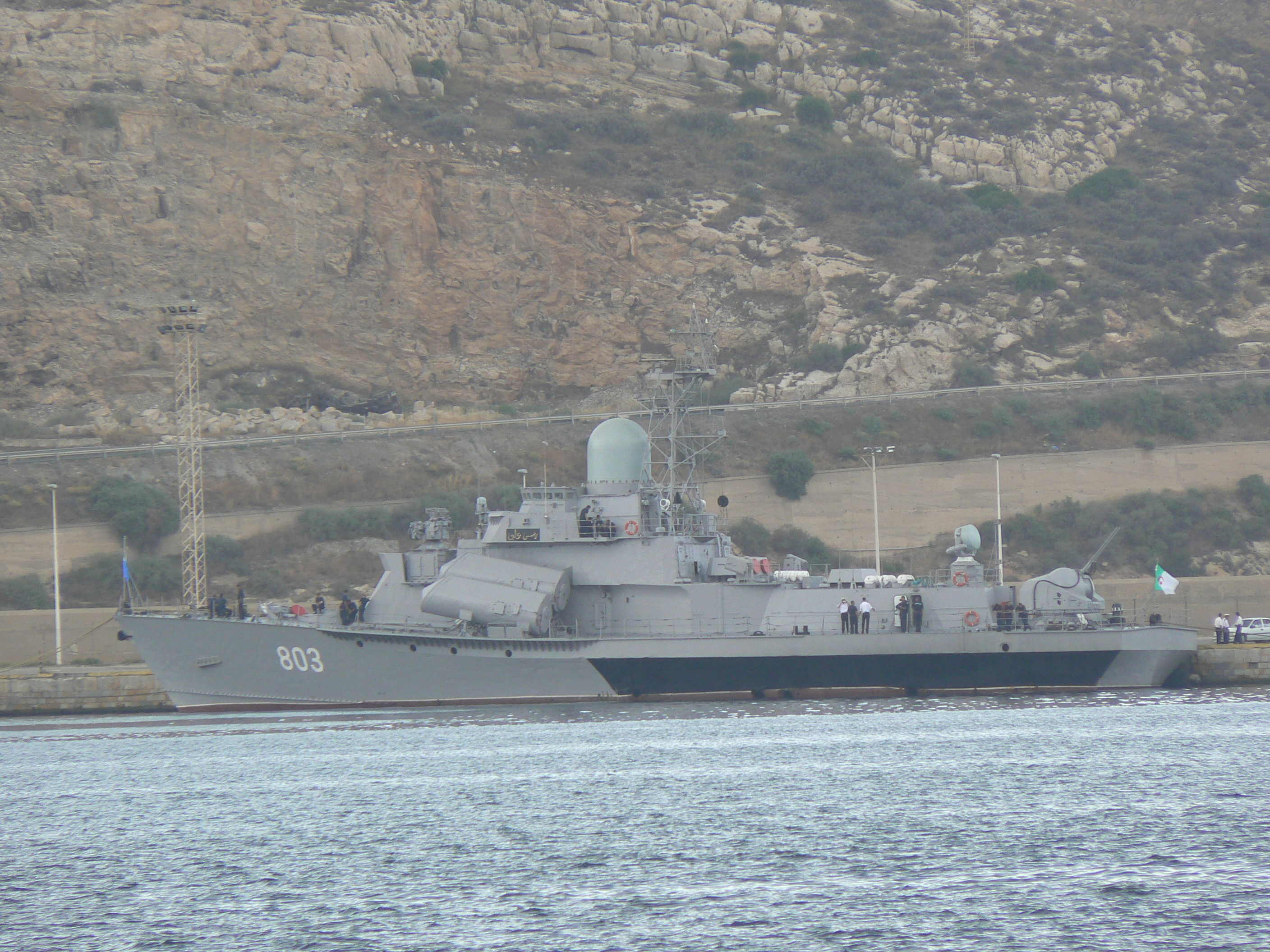

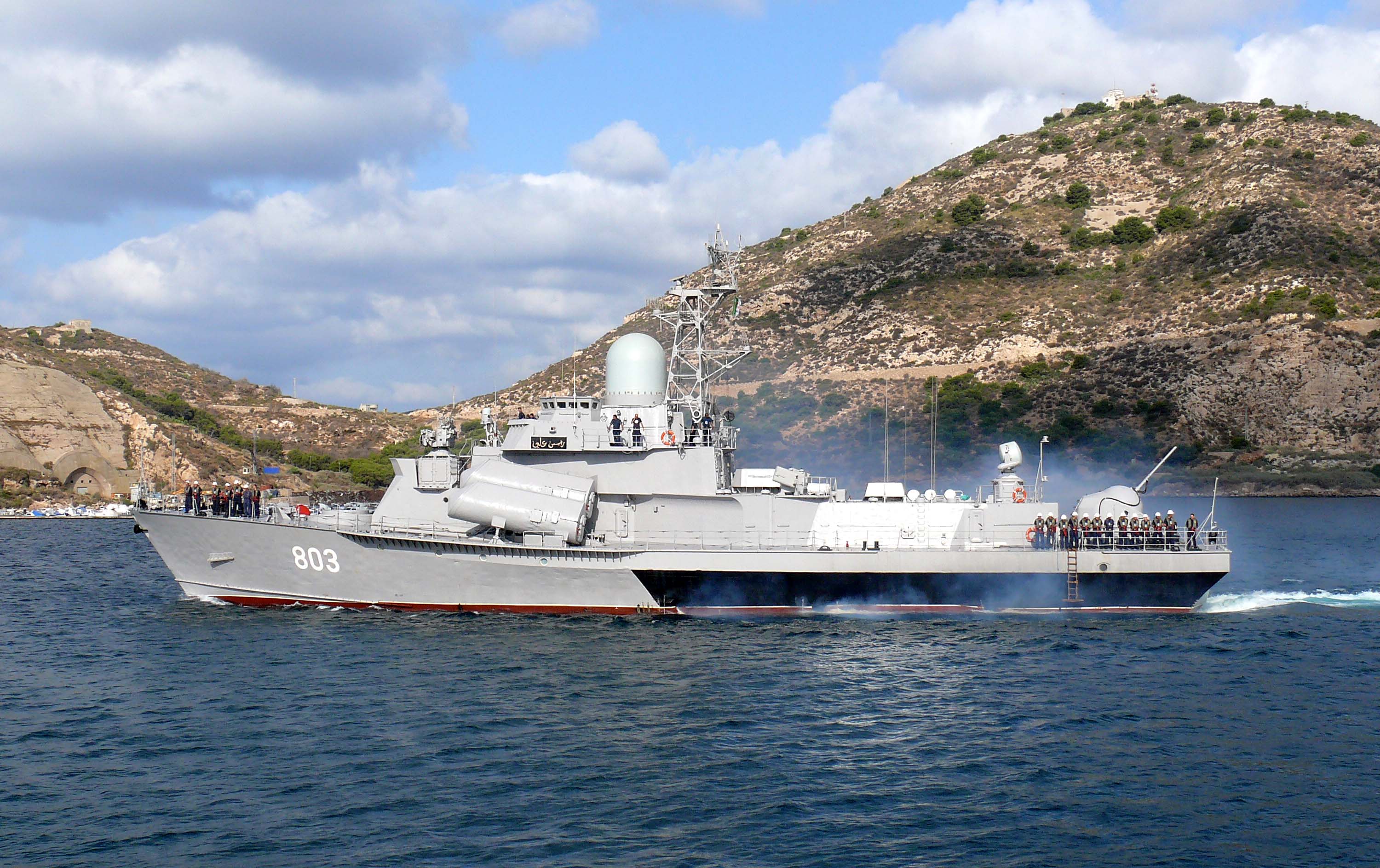

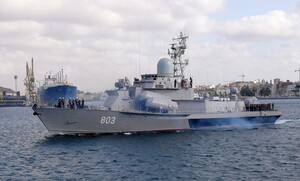

803 Rais Ali

Country:  Algeria

Class, [Type]: Nanuchka-II, [PG].

Builder: Almaz, Petrovskiy SY, St. Petersburg, Russia.

Commission date: 08 May 1982.

Displacement ( tons ): 560 standard, 675 full load.

Dimensions ( metres ): 59,3 x 12,6 x 2,4

Main machinery: 3 x M-517 diesels ( 30.000 hp ).

Speed ( knots ): 30.

Range ( miles ): 900 at 30 knots, 2.500 at 12 knots.

Complement: 60 ( 10 officers ).

Guns: 1 x twin 57mm/70 AK-725.

Missiles:  SSM: 2 x twin P-20 launchers ( SS-N-2C Styx ); SAM: 1 x twin Osa-M ( SA-N-4 ) ( 20 x 9M-33/Gecko missiles ).

Radar: Navigation: 1 x Mius; Surface Search/missile target designator: 1 x Rangout (Square Tie); Fire Control: 1 x MPZ-301 (Pop Group) for SA-N-4, 1 x MR-103 (Muff Cob) gun.

Countermeasures: Decoys: 2 x RK-16 decoy launchers; EW: 1 x Bell Tap (intercept), 1 x Cross Loop MFD/F.

Comment: Ex - Burun. Arrived in Algeria in May 1982. Third unit of a class of three.

Similar units:

 802 Salah Rais
