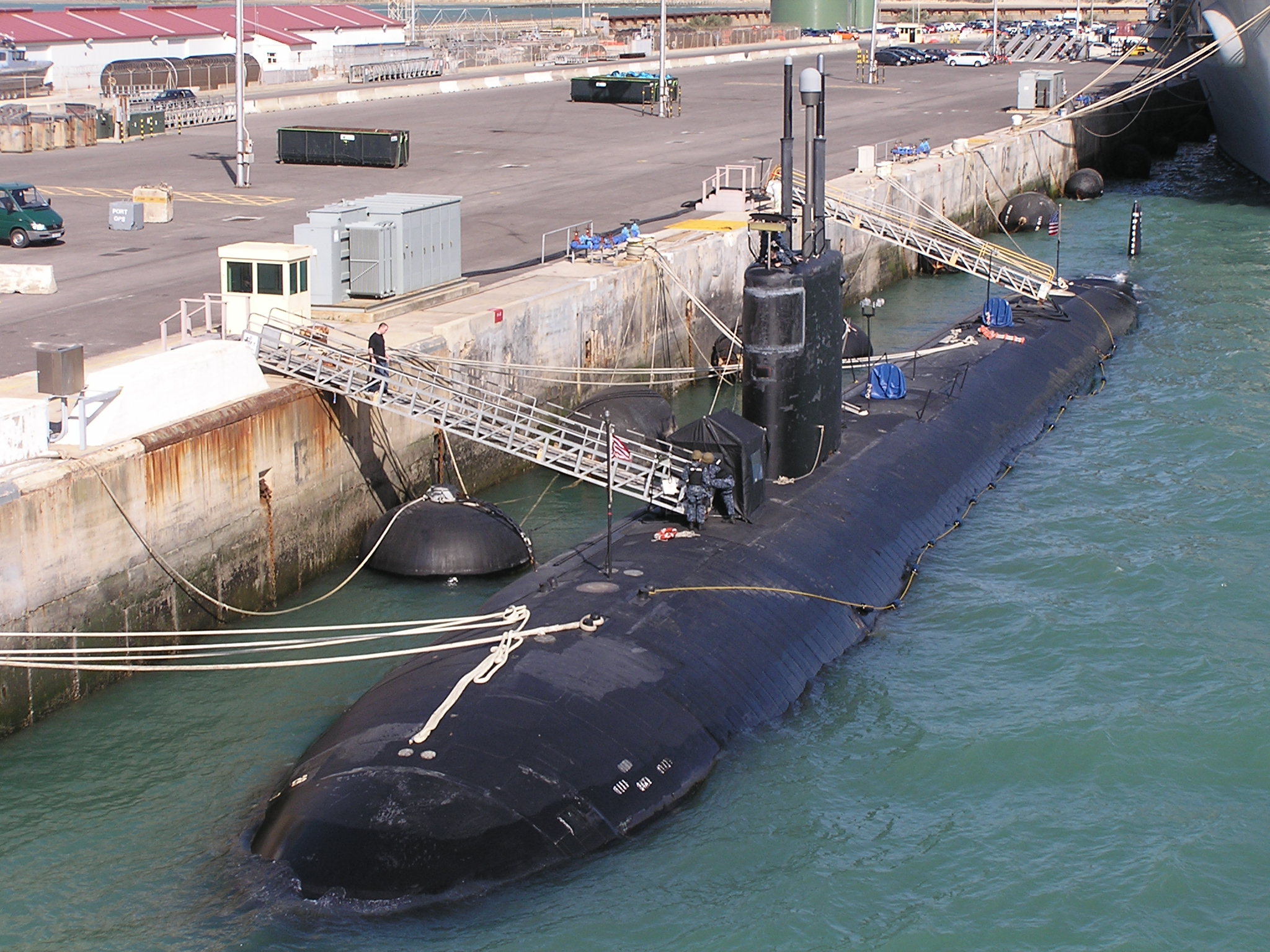

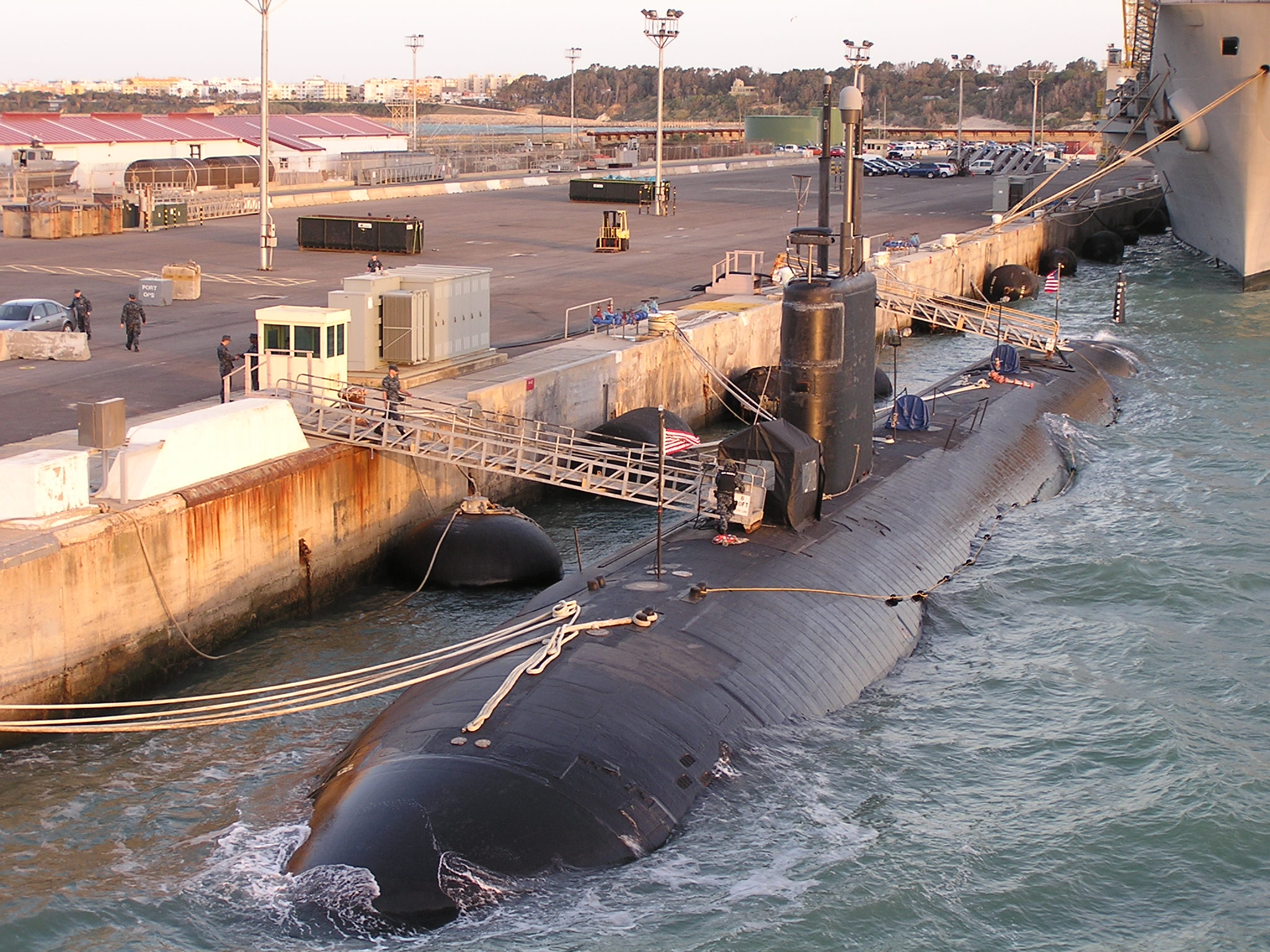

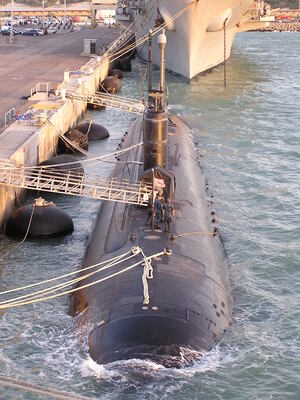

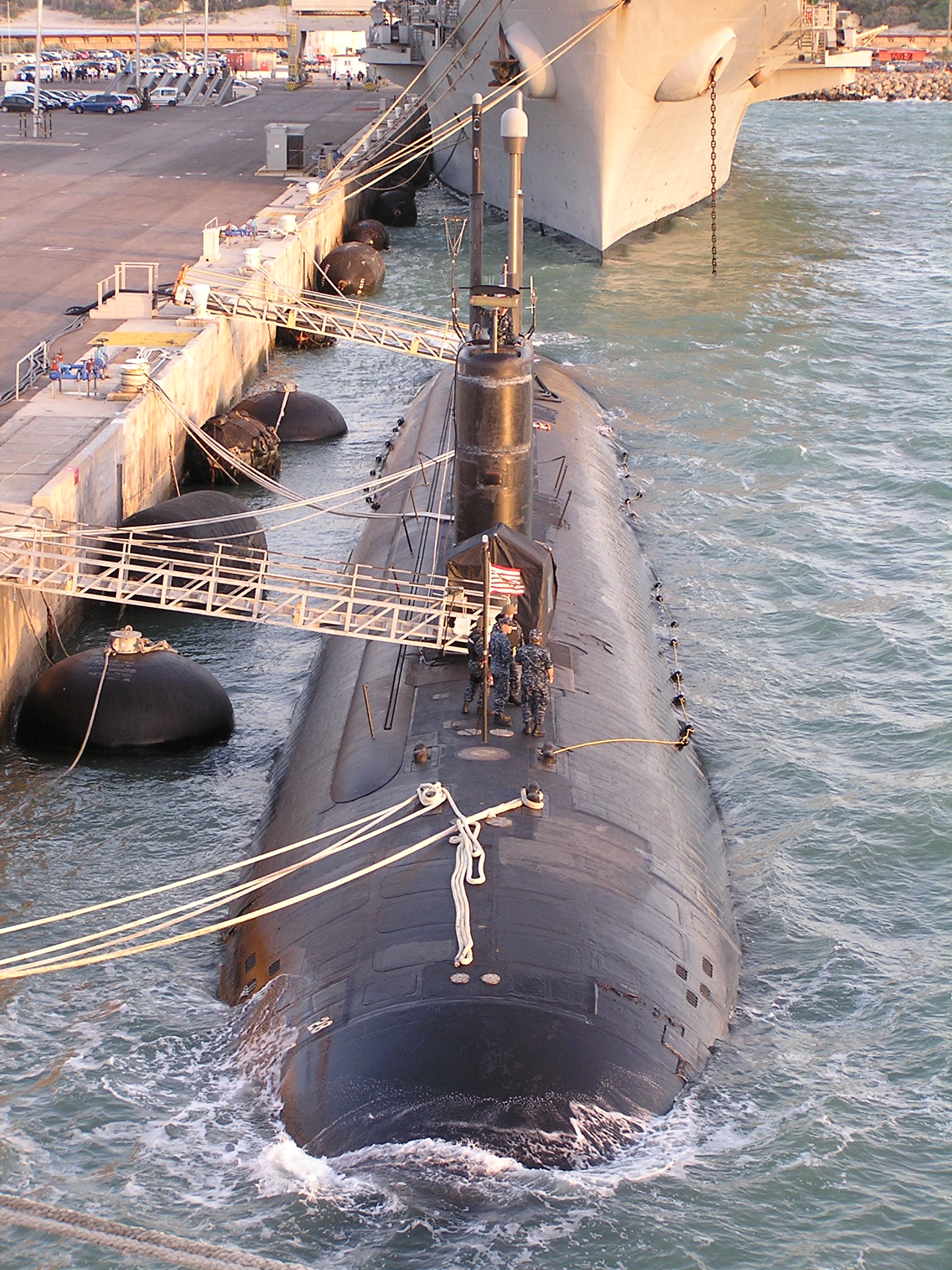

SSN-756 Scranton

Country:  United States

Class, [Type]: Improved Los Angeles, [SSN].

Builder: Newport News, Virginia, U.S.A.

Launch date: 03 July 1989.

Commission date: 26 January 1991.

Displacement ( tons ): 6.300 tons surfaced, 7.147 tons submerged.

Dimensions ( metres ): 109,73 x 10,06 x 9,75

Main machinery: G.E. S6G pressurized-water reactor ( 35.000 hp ), 1 x prop.

Speed ( knots ): +30.

Complement: 141 ( 14 officers ).

Missiles:  SSM: 12 x Mk36 VLS for Tomahawk missiles.

Torpedoes: 4 x 533mm Mk67 tubes (26 x Tomahawk missiles, Mk48 and Mk48 ADCAP torpedoes).

Mines: starting from this unit, it is reported to have some mining capabilites.

Radar: Navigation/Surface Search: 1 x BPS-15H or BPS-16(V) .

Sonar: BQQ-5D suite; BQS-15 under-ice active, BQR-15 towed array, BQG-5D WAA flank arrays.

Countermeasures: Decoys: CSA Mk1 Mod2 acoustic decoy launchers; EW: BRD-7; D/F WLR-8(V)2; WLR-10; WLR-9/12; WLR-1H; WSQ-5.

Callsign: NSCN ()

Similar units:

 SSN751 San Juan
