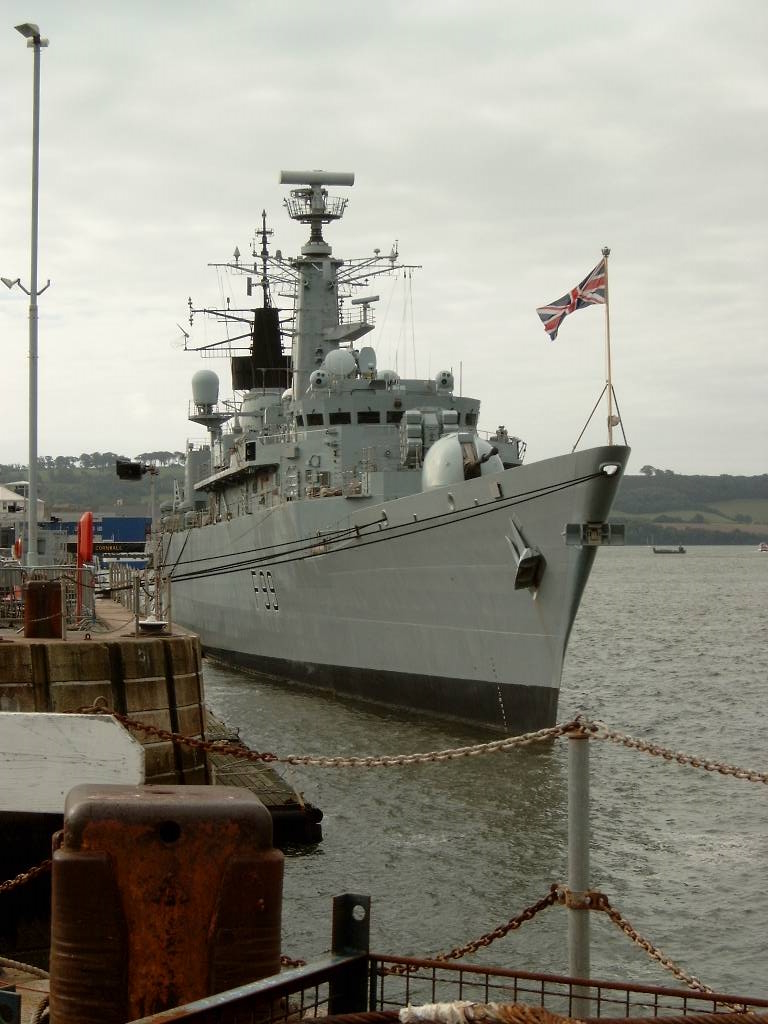

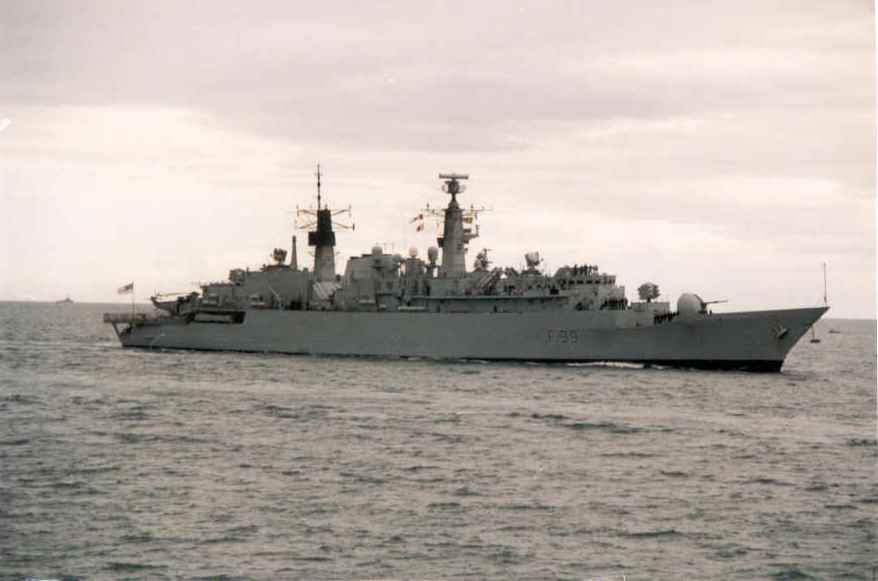

F-99 Cornwall

F-99 Cornwall

Country: United Kingdom United Kingdom

Class, [Type]: Type 22 Batch 3, [FF].

Builder: Yarrow Shipbuilders, Glasgow, U.K.

Launch date: 14 August 1985.

Commission date: 23 August 1988.

Decommission date: 26 April 2011.

Draw

Displacement ( tons ): 4.200 standard, 4.900 full load.

Dimensions ( metres ): 148,1 x 14,8 x 6,4

Main machinery: COGOG: 2 x RR Spey SM1A gas turbines ( 29.500 hp ), 2 x RR Tyne RM3C gas turbines ( 10.680 hp ).

Speed ( knots ): 30, 18 on Tyne´s.

Range ( miles ): 4.500 at 18 knots on Tyne´s.

Complement: 250 ( 31 officers ), but the total amount could rise up to 301.

Guns: 1 x Vickers 114mm/55. 1 x Signaal/GE Goalkeeper 30mm. 2 x DES/Oerlikon 30mm/75.

Missiles:  SSM: 8 x McDonnell Douglas Harpoon Block 1C, two quad launchers. SAM: British Aerospace Seawolf GWS 25 Mod 3, two mountings.

Torpedoes: 6 x 324mm Plessey STWS Mk 2 ( 2 triple tubes ). Marconi Stingray.

Radar: Air/Surface: Marconi Type 967/968, D/E bands; Navigation: Kelvin Hughes Type 1006 or 1007, I band; Fire Control: 2 x Marconi Type 911, I/K bands ( Seawolf ).

Sonar: Thales Type 2016, hull mounted, active search and attack modes.

Countermeasures: Decoys: 4 x Sea Gnat. Towed torpedo decoy Graseby Type 182; ESM/ECM: MEL UUA-2 ( interceptor ), Type 670 or 675 ( jammer ).

Helicopter: different configurations available: 2 x Westland Lynx HMA 3/8 or 1 x Westland Seaking HAS 5 or 1 x EH101 Merlin HAS 1.

Callsign: GDLU (GolfDeltaLimaUniform)

Similar units:

United Kingdom F85 Cumberland
United Kingdom F86 Campbeltown
United Kingdom F87 Chatham
