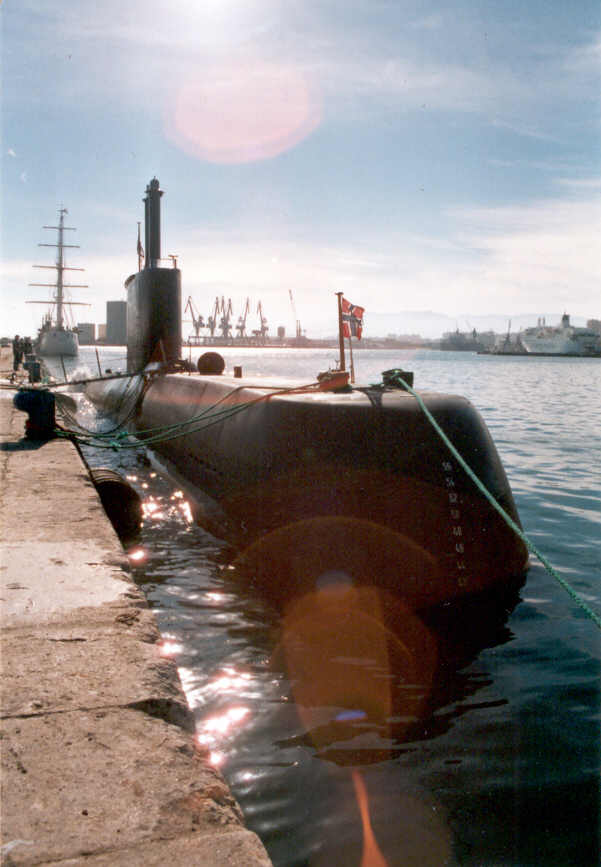

S-304 Uthaug

S-304 Uthaug

Country: Norway Norway

Class, [Type]: Ula / Type 210, [SSK].

Builder: Thyssen Nordseewerke, Emdem, Germany.

Launch date: 18 October 1990.

Commission date: 07 May 1991.

Displacement ( tons ): 1.040 surfaced, 1.150 submerged.

Dimensions ( metres ): 59 x 5,4 x 4,6

Main machinery: diesel-electric: 2 x MTU 16 396 SB83 diesels ( 2.700 hp ), 1 x Siemens engine ( 6.000 hp ).

Speed ( knots ): 11 surfaced, 23 submerged.

Range ( miles ): 5.000 at 8 knots.

Complement: 18-20 ( 3 officers ).

Torpedoes: 8 x 533mm. tubes, 14 x AEG DM 2A3 Seeal.

Radar: Surface: Kelvin Hughes 1007, I band.

Sonar: Atlas Elektronik CSU83 ( attack ), Thomson Sintra ( side ).

Countermeasures: ESM: Racal Sealion ( radar warning ).

Callsign: LBAW (LimaBravoAlfaWhiskey)

Comment: This submarine is the result of a joint program developed by Germany and Norway´s navies, and known as Project 210 in Germany. It is by far the most expensive project that Norway´s Navy has ever decided to develop. The construction of the units has been done at Thyssen facilities, but some presurized sections have been arriving from Norway and assembled there later.
