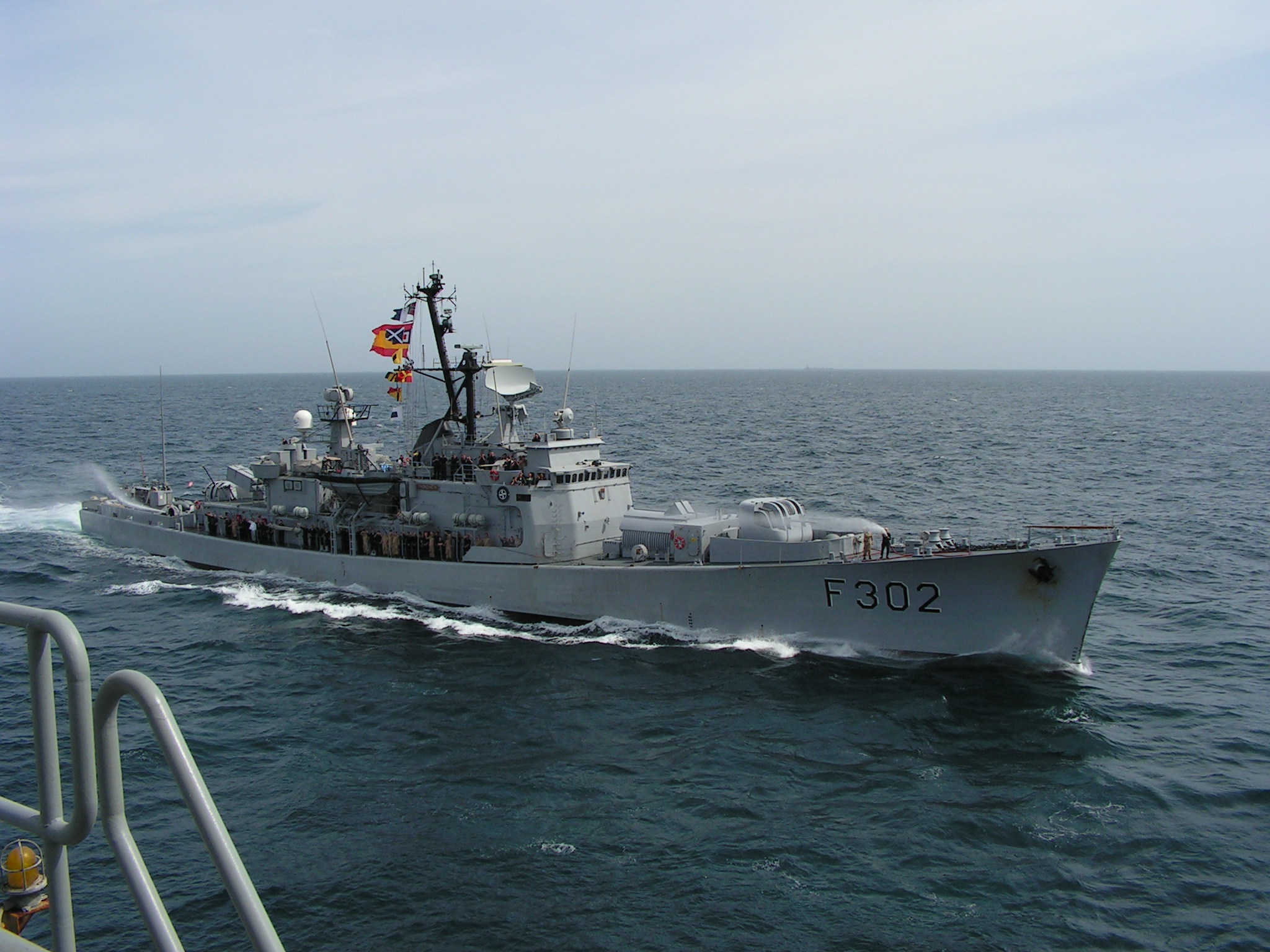

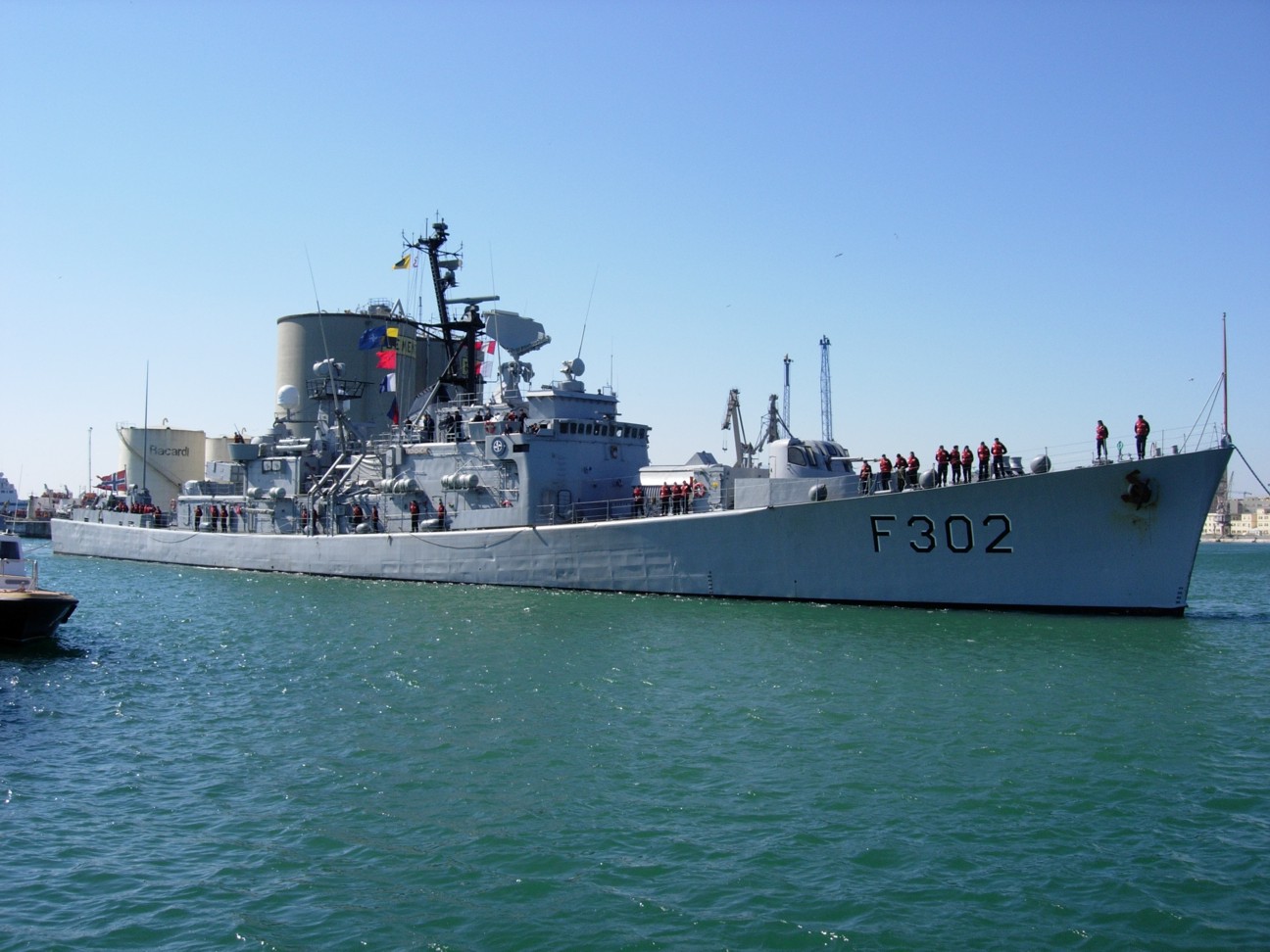

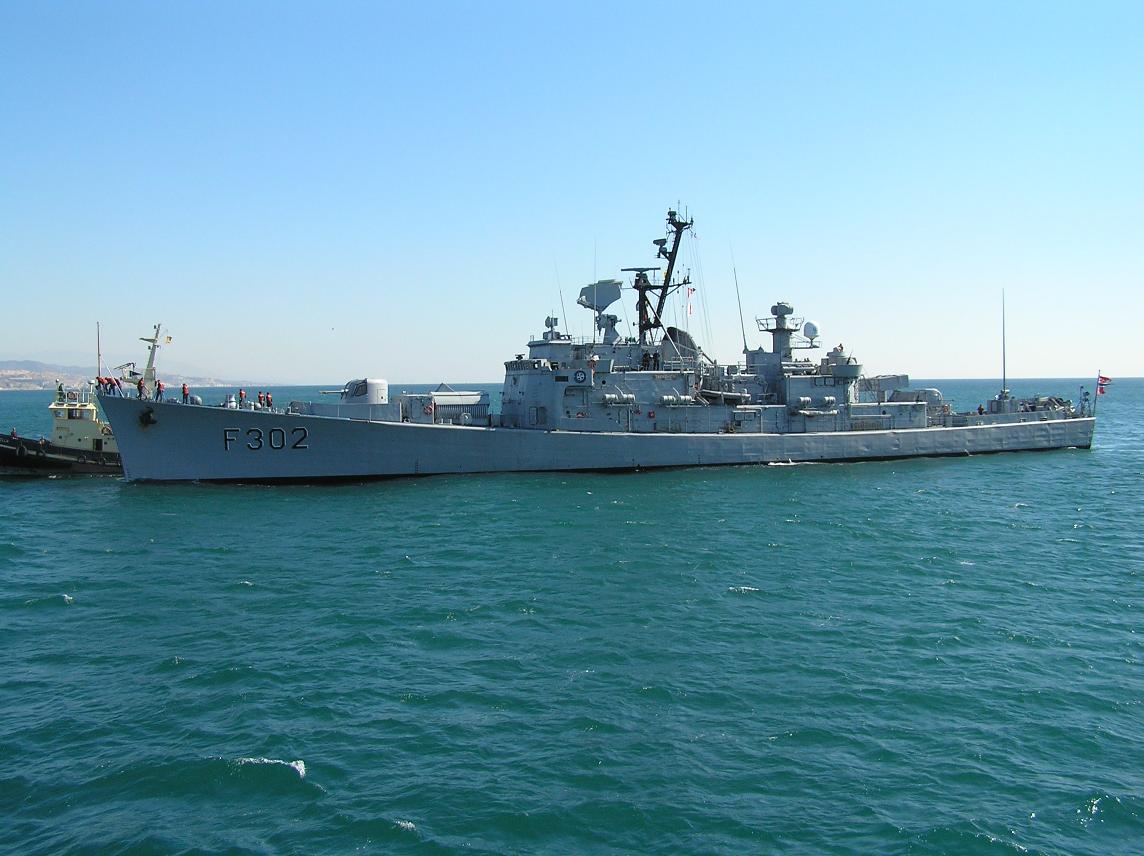

F-302 Trondheim

Country:  Norway

Class, [Type]: Oslo, [FF].

Builder: Marinens Hovedverft, Horten, Norway.

Launch date: 04 September 1964.

Commission date: 02 June 1966.

Decommission date: 2006.

Displacement ( tons ): 1.670 standard, 1.970 full load.

Dimensions ( metres ): 96,62 x 11,17 x 4,52

Main machinery: 2 x Babcock Wilcox boilers, Laval-Ljungstrom PN 20 geared steam turbines ( 20.000 hp ).

Speed ( knots ): 25.

Range ( miles ): 4.500 at 15 knots.

Complement: 120 ( 11 officers ).

Guns: 1 x 76,2mm/50 U.S. Mk33, 1 x Bofors 40mm/70.

Missiles:  1 x Mk 29 SAM launcher ( 24 x RIM-7M Sea Sparrow ).

Torpedoes: 2 x 324mm Mk 32 Mod. 5 ( triple ) for Stingray.

Mines: 1 x depth charges rack ( 6 depth charges ).

A/S Mortars: 1 x Terne-3 Mk 10 ASW rocket launcher.

Radar: Air Search: 1 x Siemens-Plessey AWS-9(2D); Surface Search: 1 x Decca TM 1226; Navigation: 1 x Decca; Fire Control: 1 x CelsiusTech 9LV 200 Mk 2 ( gun ), 1 x Raytheon Mk 95 ( missiles ).

Sonar: Thales TSM 2633 (Spherion Mk 1) hull-mounted and VDS; Kongsberg Terne Mk 3 hull-mounted HF attack.

Callsign: LBAE ()

Similar units:

 F304 Narvik
