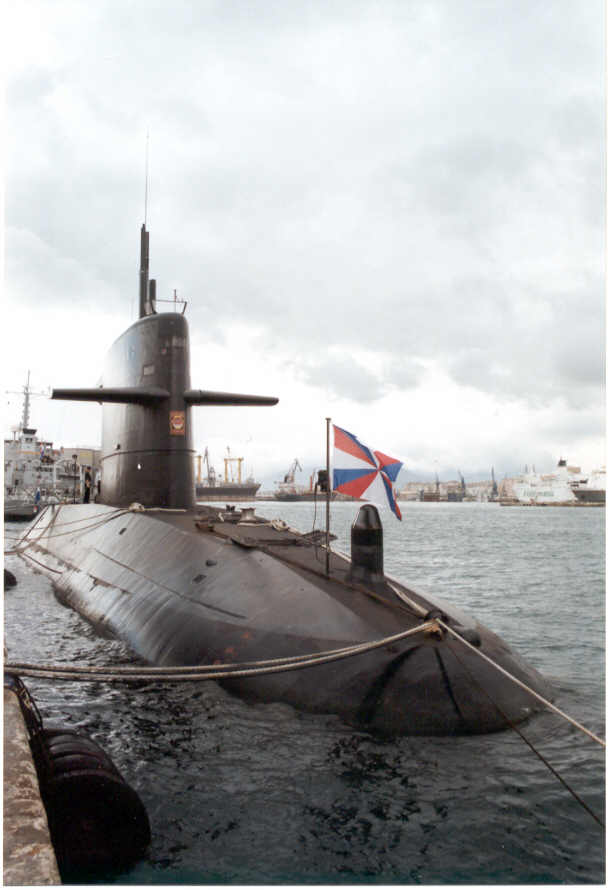

S-808 Dolfijn

S-808 Dolfijn

Country: Netherlands Netherlands

Class, [Type]: Walrus, [SSK].

Builder: Rotterdamse Droogdok Mij, Rotterdam, Netherlands.

Launch date: 25 April 1990.

Commission date: 29 January 1993.

Displacement ( tons ): 1.900 standard, 2.465 surfaced, 2.800 submerged.

Dimensions ( metres ): 67,7 x 8,4 x 7

Main machinery: diesel-electric: 3 x SEMT-Pielstick 12 PA4 200 VG diesels ( 6.300 hp ), 1 x Holec motor ( 6.910 hp ).

Speed ( knots ): 12 surfaced, 20 submerged.

Range ( miles ): 10.000 at 9 knots.

Complement: 52 ( 7 officers ).

Missiles:  SSM: McDonnell Douglas Sub-Harpoon.

Torpedoes: 4 x 533mm. tubes. 20 torpedoes: Honeywell Mk48 Mod 4 and/or Honeywell NT37D.

Mines: Can carry up to 40, in lieu of torpedoes.

Radar: Surface: Signaal/Racal ZW 07, I band, 29km range.

Sonar: Thomson Sintra TSM 2272 Eledone Octopus, hull mounted, active/passive search and attack modes, medium frequency. GEC Avionics Type 2026, towed, passive search, very low frequency. Thomson Sintra DUUX 5.

Countermeasures: ESM: Argos 700, radar warning.

Callsign: PAFF (PapaAlfaFoxtrotFoxtrot)

Comment: Diving depth: 300 meters.
