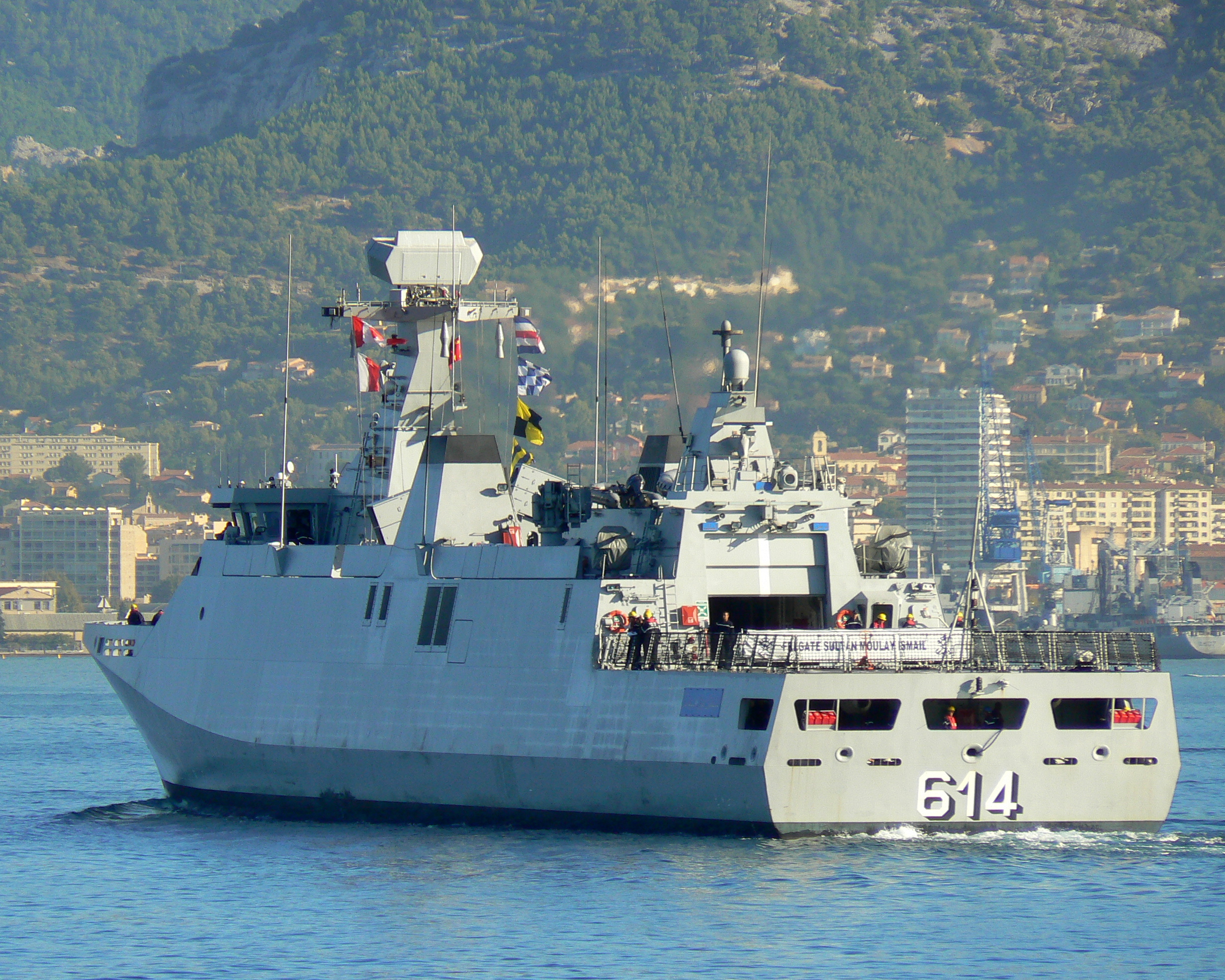

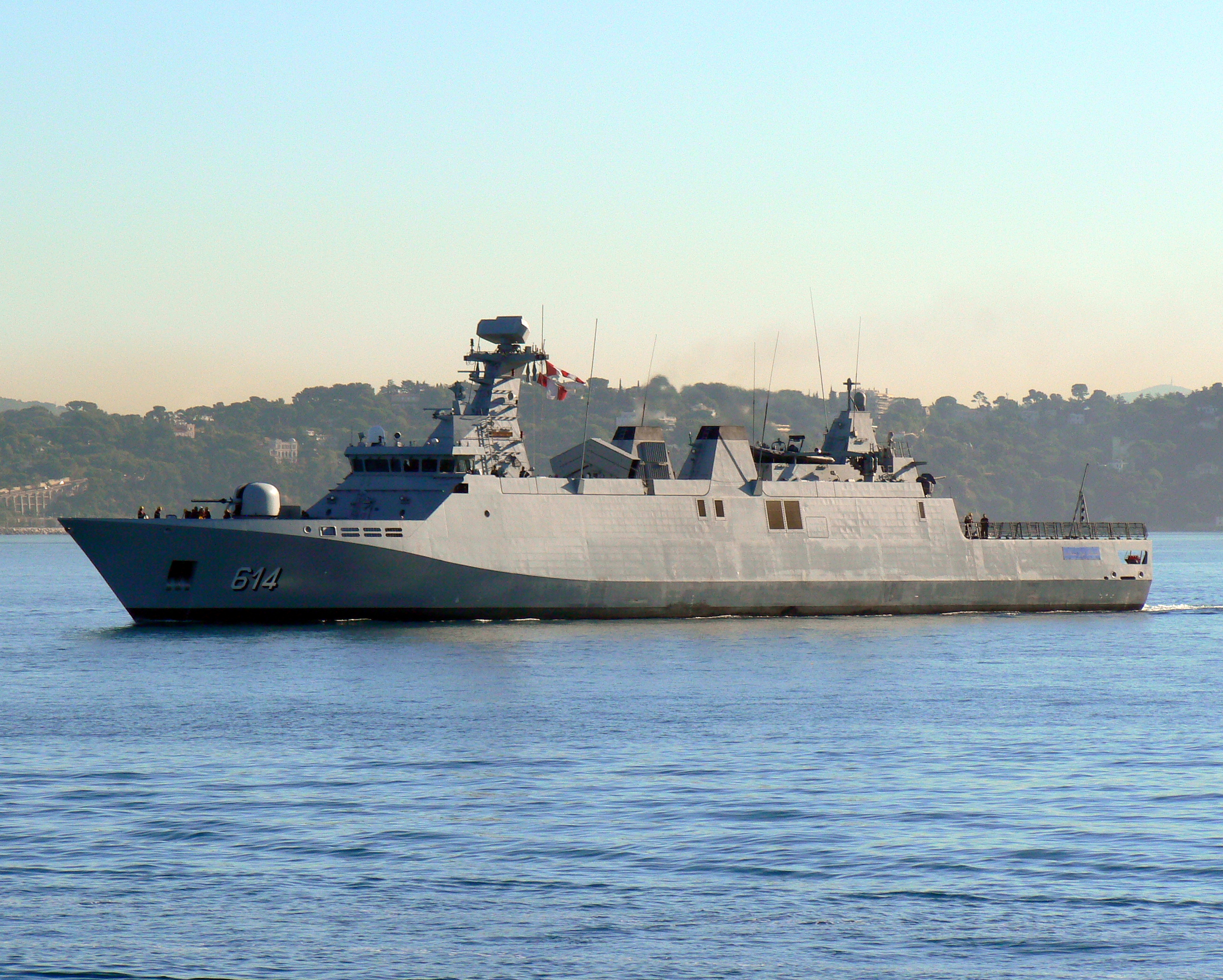

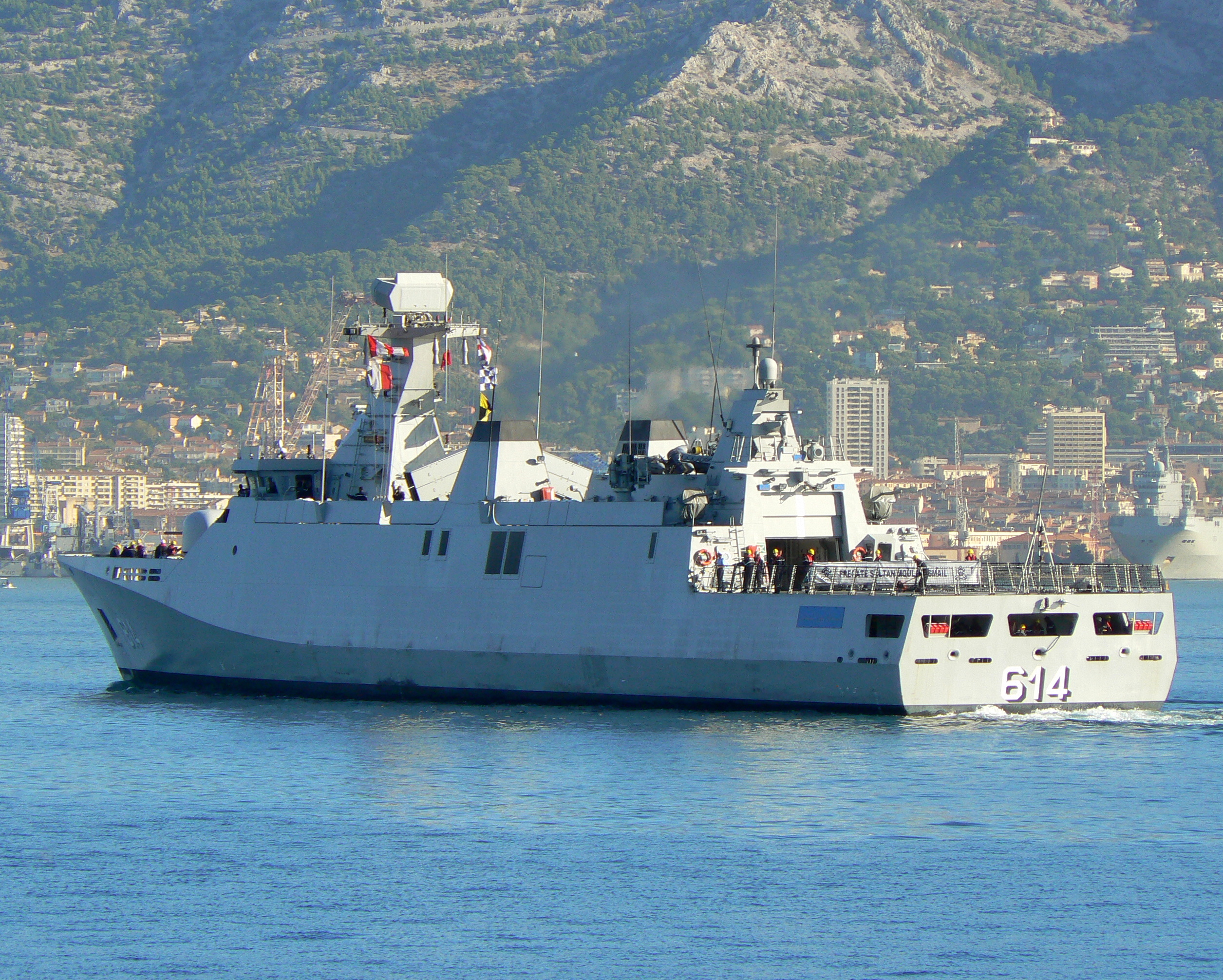

614 Sultan Moulay Ismail

Country:  Morocco

Class, [Type]: Sigma 9813, [FFL].

Builder: Damen-Royal Schelde, Vlissingen, Netherlands.

Launch date: 04 February 2011.

Commission date: 10 March 2012.

Displacement ( tons ): 2.075.

Dimensions ( metres ): 91,91 x 13,02 x 3,75

Main machinery: CODAD: 2 x SEMT Pielstick 20PA6B STC.

Speed ( knots ): 28.

Range ( miles ): 3.600 at 18 knots, 4.800 at 14 knots.

Complement: 91.

Guns: 1 x 76mm OTO Melara, 2 x 20mm Denel Vektor G12.

Missiles:  SSM: 4 x Exocet MM40 Block II; SAM: 2 x quad MBDA Mistral TETRAL.

Torpedoes: 2 x 324mm B515 launchers ( EuroTorp 3A 244S Mode II/MU 90 ).

Radar: Navigation: Sperry Marine BridgeMasterE ARPA; Search: Thales SMART-S MK2; Fire control: LIROD Mk2.

Sonar: Thales UMS 4132 Kingklip, medium frequency active/passive hull mounted sonar.

Countermeasures: Decoys: TERMA SKWS decoy launch control sytem, DLT-12T 130mm decoy launchers; ESM: Thales DR3000; ECM: Racal Scorpion 2L.

Helicopter: 1 x ?.

Similar units:

 613 Tarik Ben Ziyad
