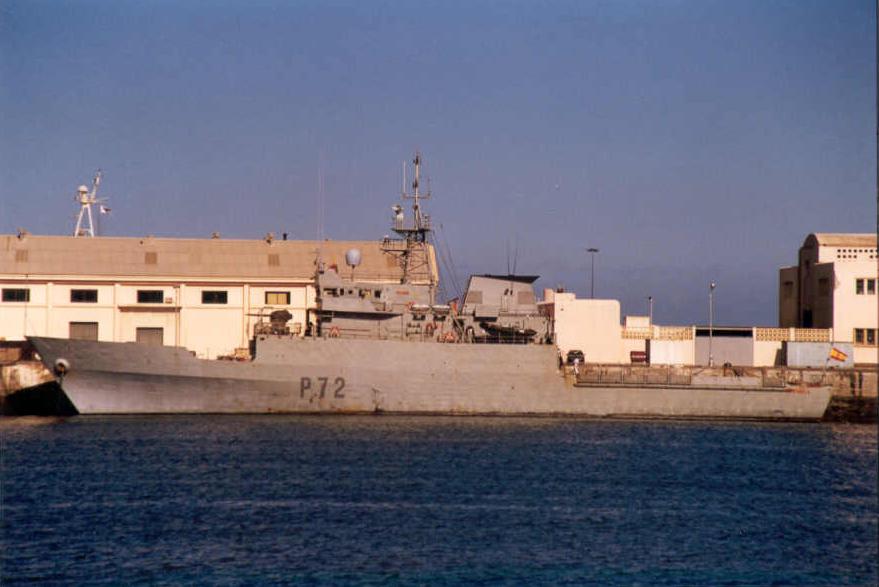

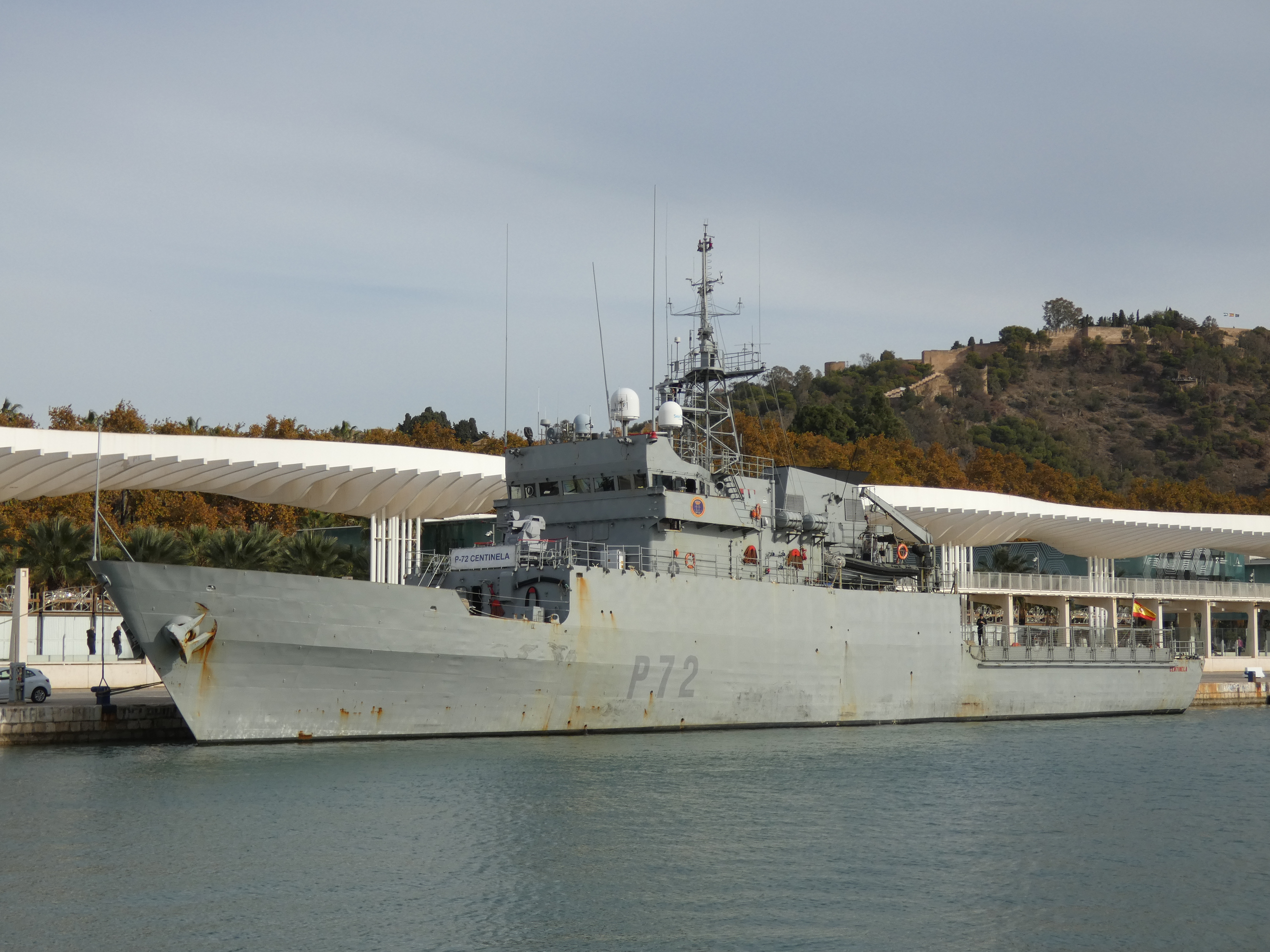

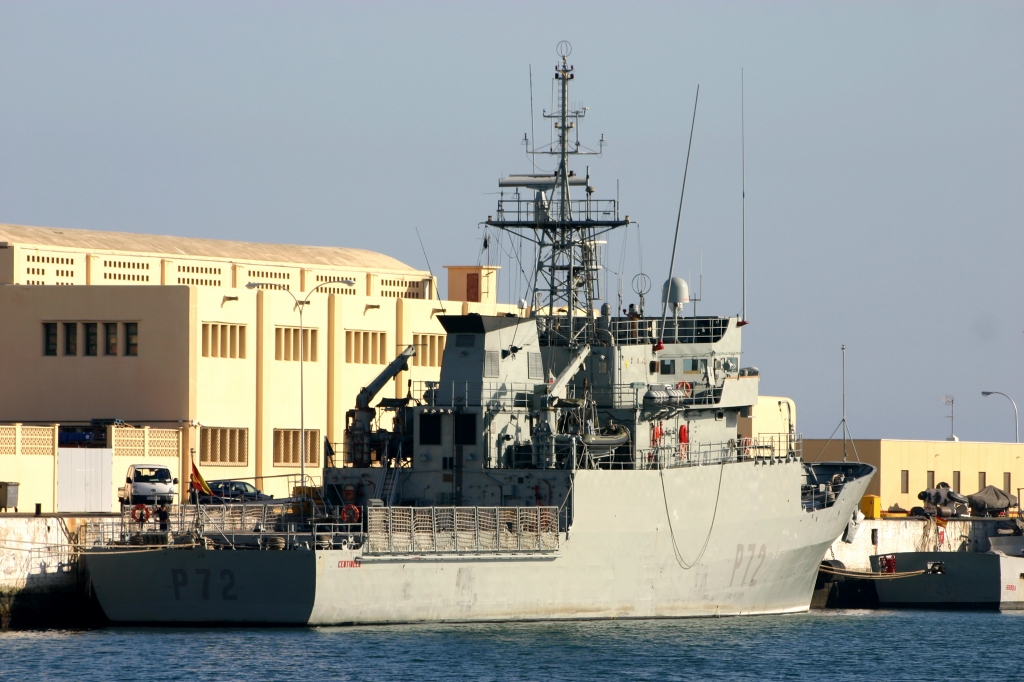

P-72 Centinela

P-72 Centinela

Country: Spain Spain

Class, [Type]: Serviola, [PS].

Builder: Bazán, El Ferrol, Spain.

Launch date: 30 October 1990.

Commission date: 24 September 1991.

Displacement ( tons ): 836 standard, 1.106 full load.

Dimensions ( metres ): 68,7 x 10,4 x 3,4

Main machinery: 2 x MTU-Bazán 16V 956 TB91 diesels ( 7.500 hp ).

Speed ( knots ): 19.

Range ( miles ): 8.000 at 12 knots ( 30 days ).

Complement: 42 ( 8 officers ) plus 6 more free spaces.

Guns: 1 x RWS Escribano Sentinel 30 Bushmaster II 30mm, 2 x RWS Escribano Guardian 2.0 Browning M2 12,7mm.

Radar: Surface/Air search: 1 x Consilium Selesmar RTM 30 SIM; Navigation: 1 x Consilium Selesmar RTM 25 XIM; Fire Control: ALCOR optronical director.

Helicopter: Can operate a medium-sized helicopter.

Callsign: EBBO (EchoBravoBravoOscar)

Homeport: El Ferrol.

Similar units:

Spain P71 Serviola
Spain P73 Vigía
Spain P74 Atalaya
