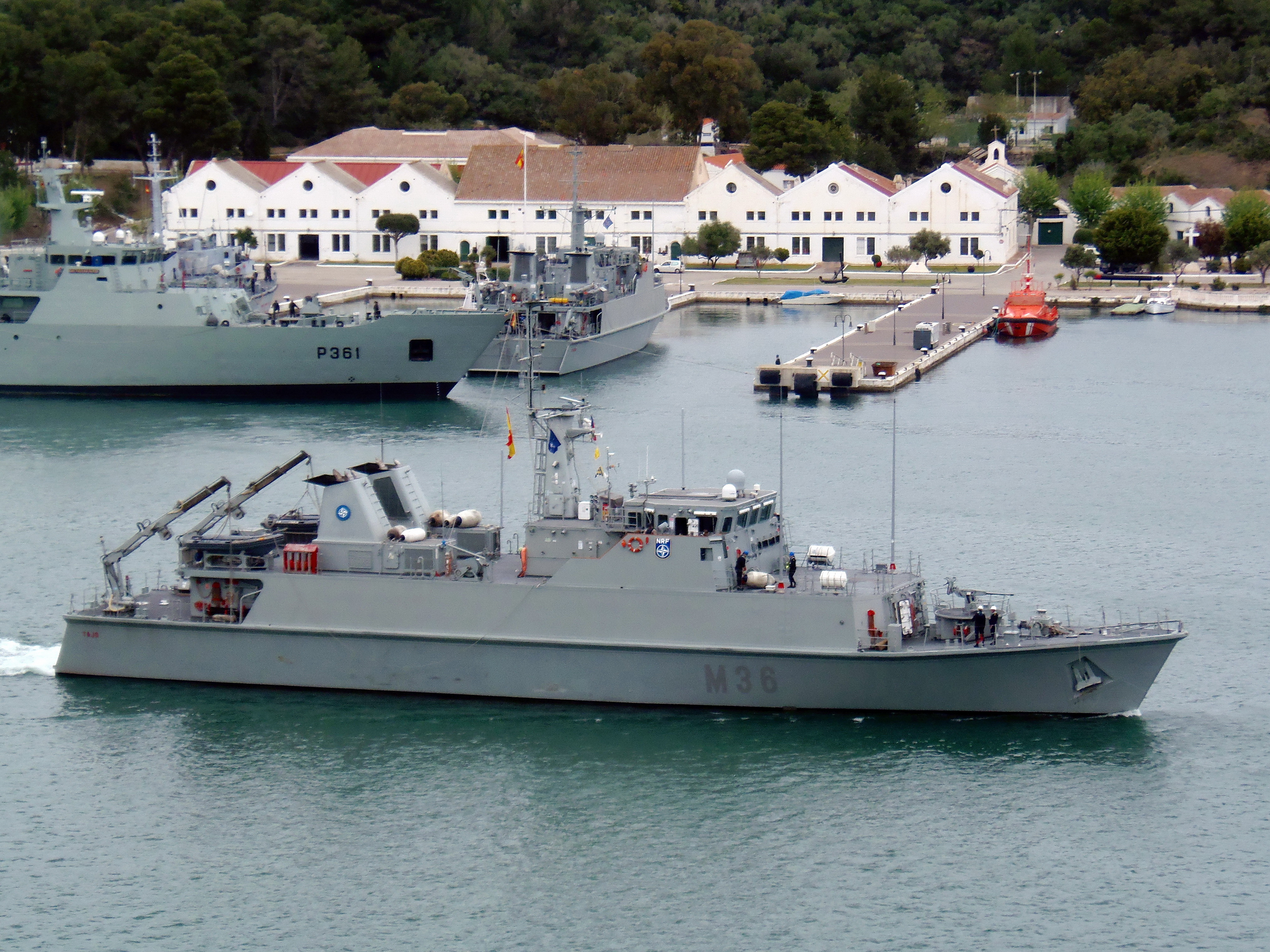

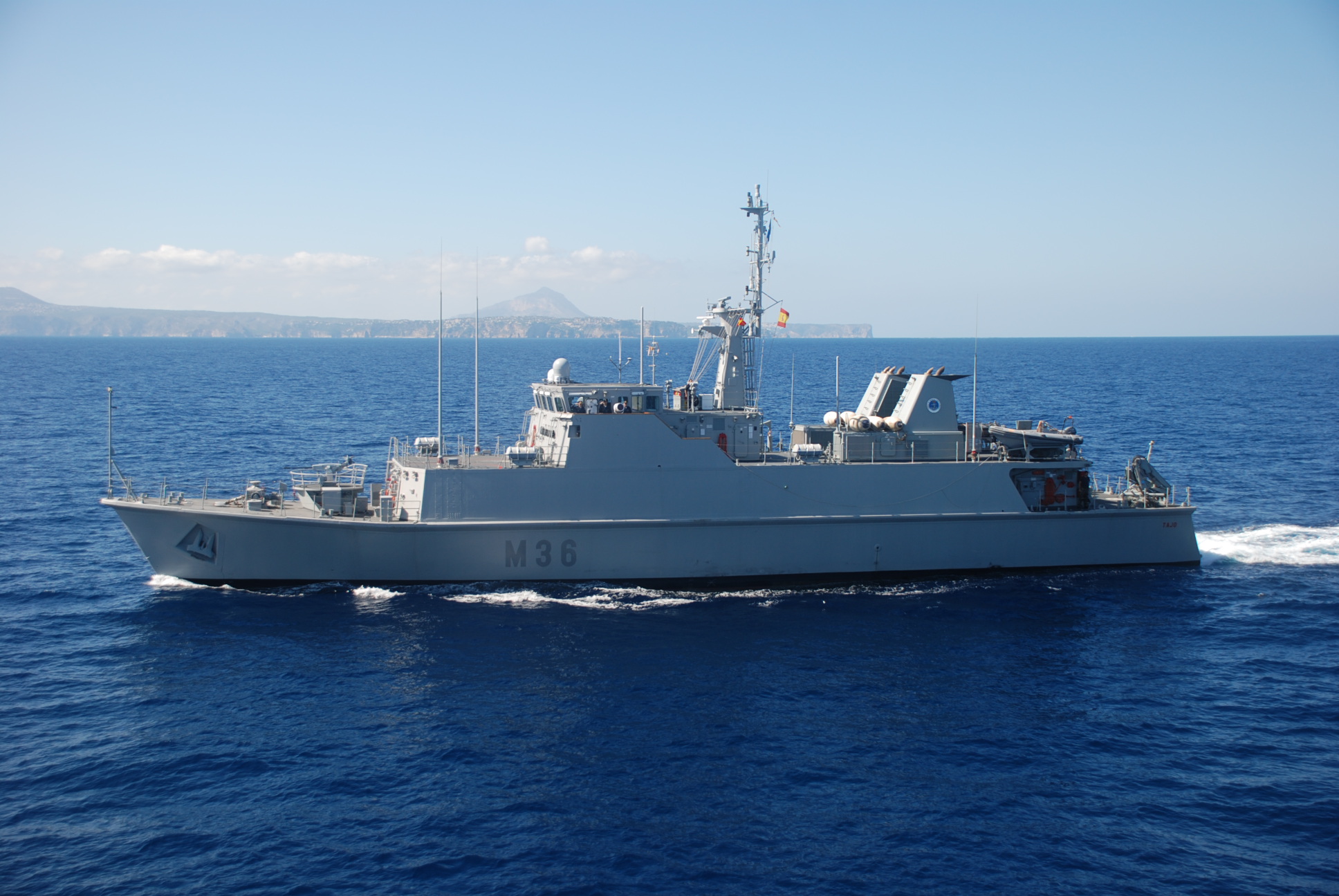

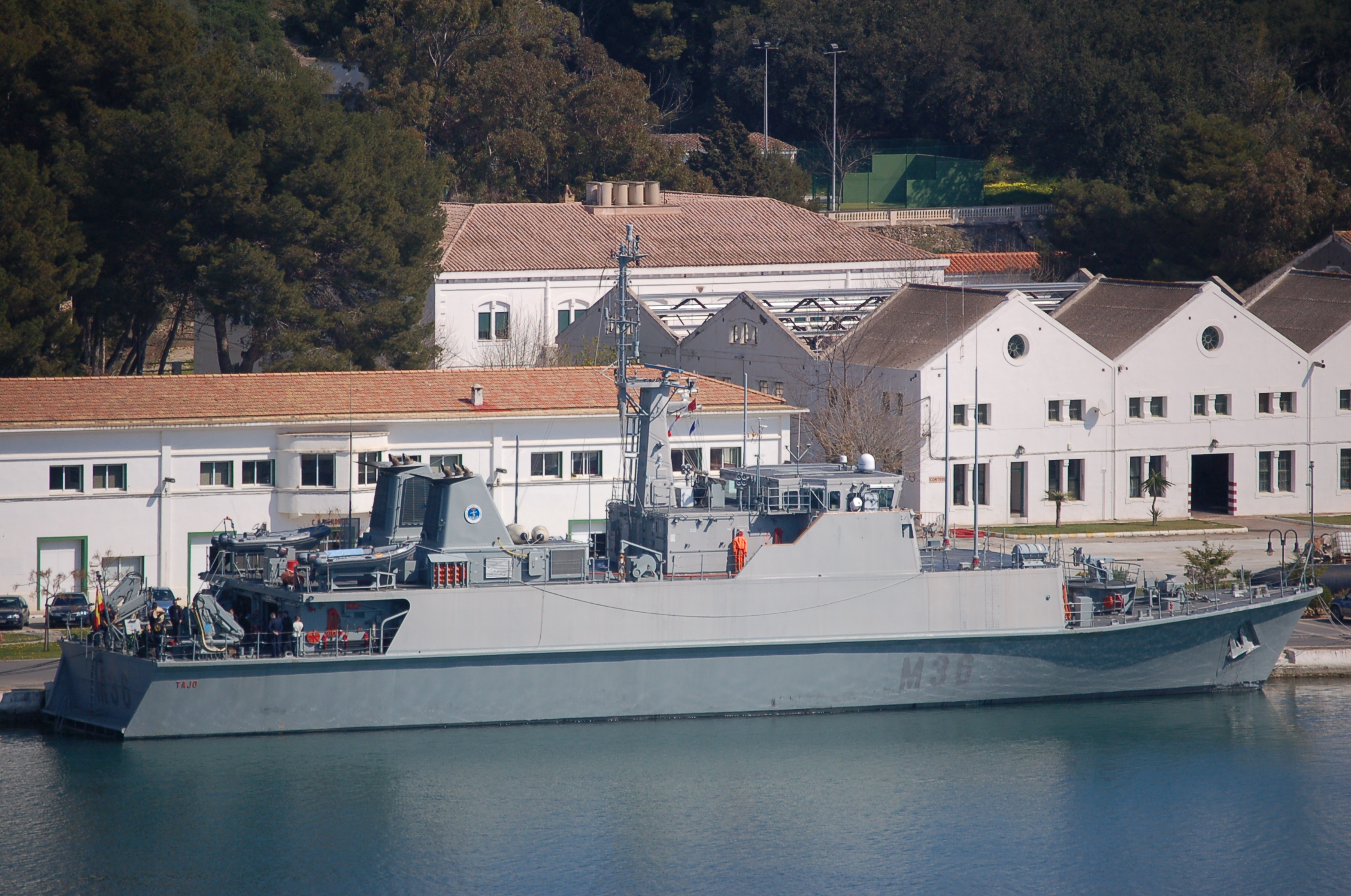

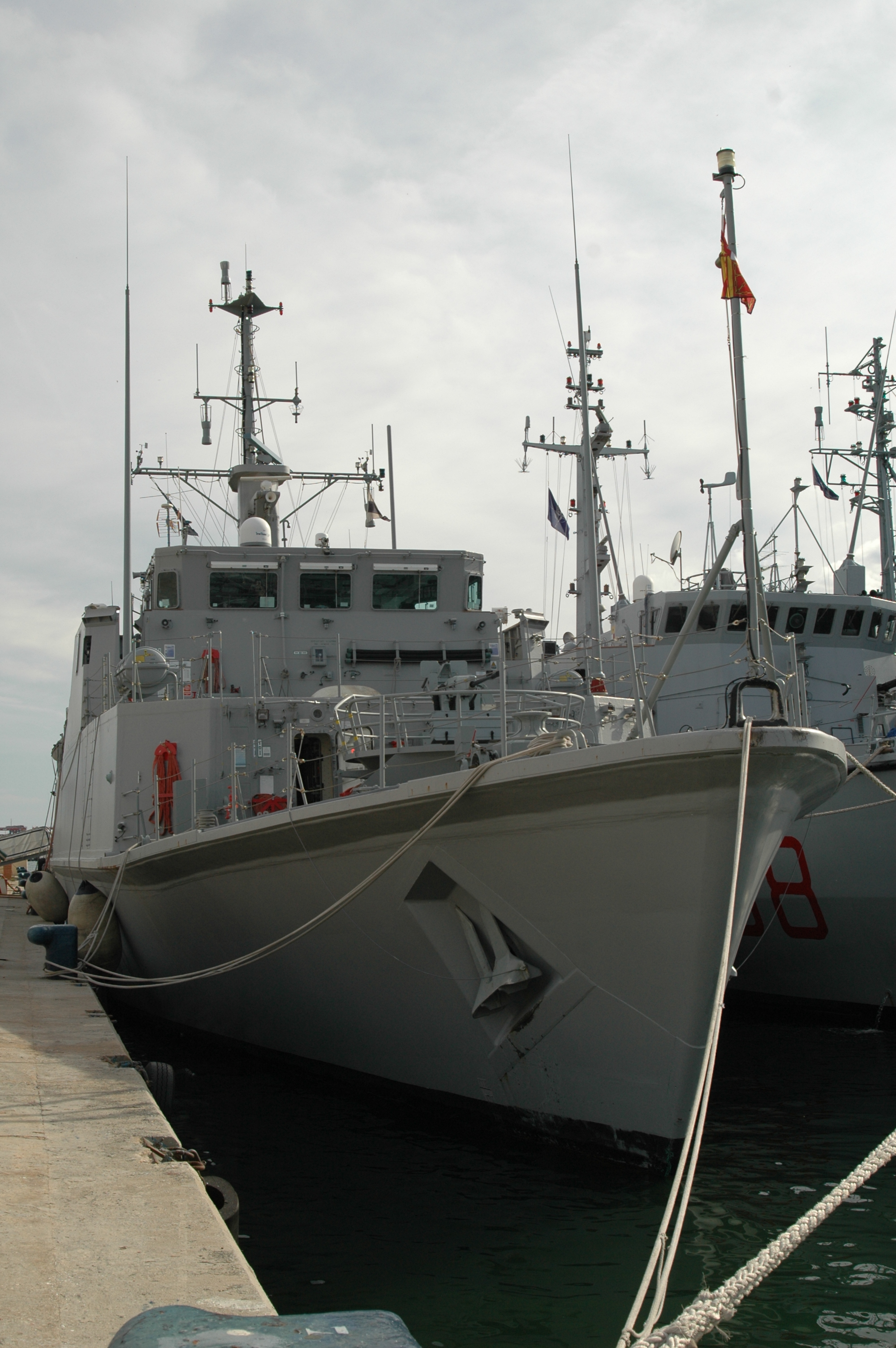

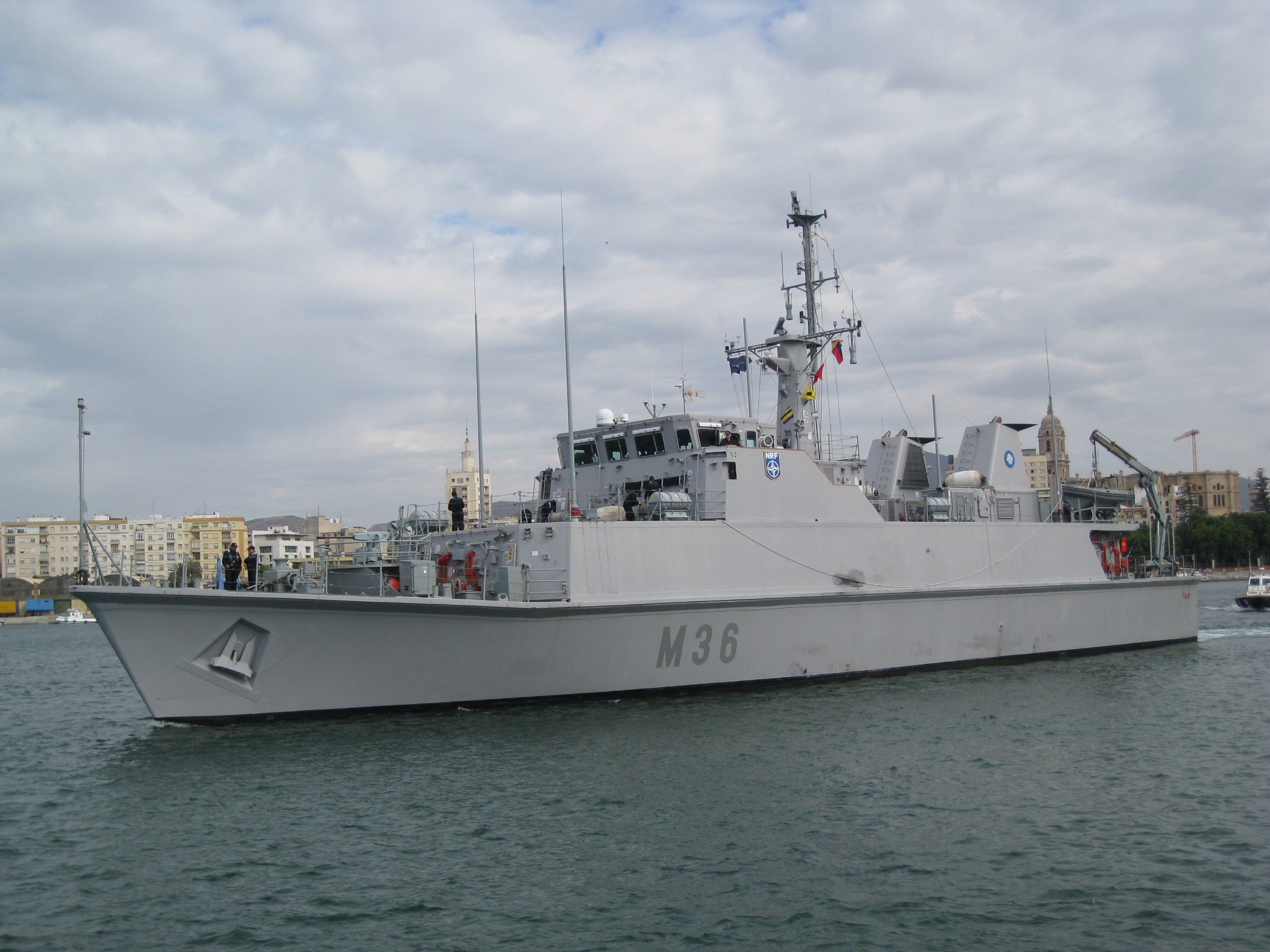

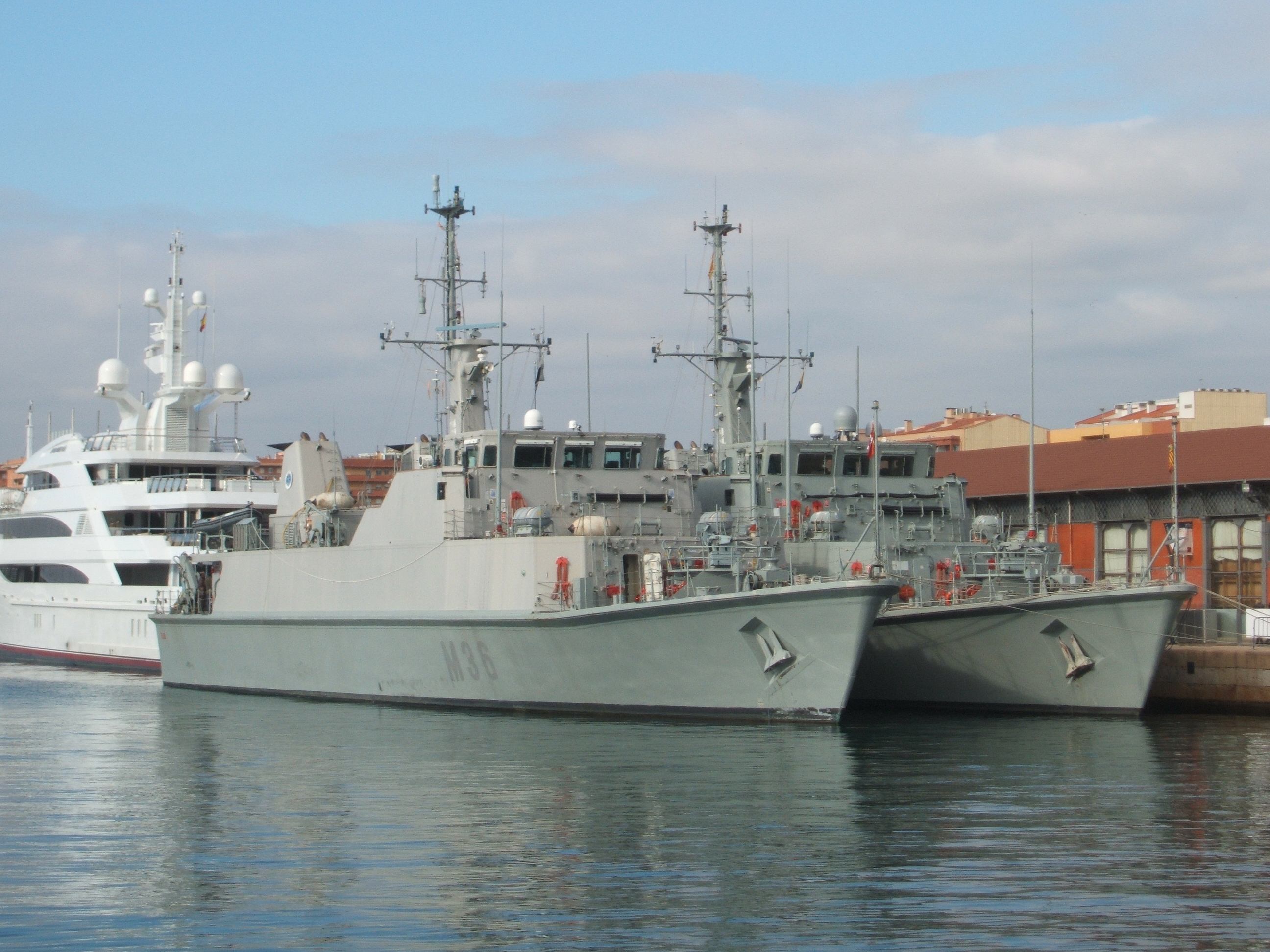

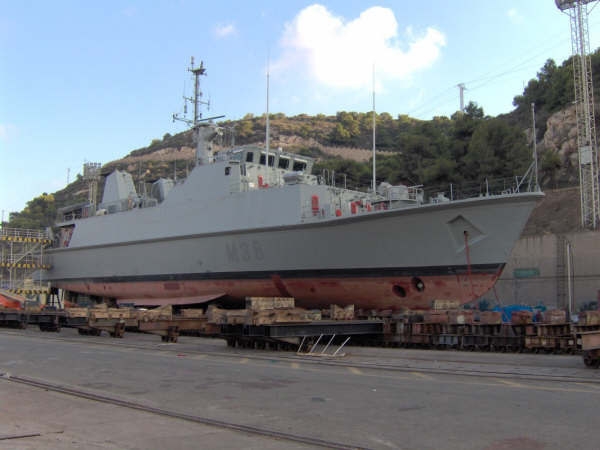

M-36 Tajo

M-36 Tajo

Country: Spain Spain

Class, [Type]: Segura, [MHC].

Builder: Izar, Cartagena, Spain.

Launch date: 10 June 2004.

Commission date: 10 January 2005.

Draw
Draw by Draw by Antoni Casinos

Displacement ( tons ): 550 full load.

Dimensions ( metres ): 54 x 10,7 x 2,2

Main machinery: 2 x MTU-Bazán 6V 396 TB83 diesels ( 1.523 hp ).

Speed ( knots ): 14; 7 while searching.

Range ( miles ): 2.000 at 12 knots.

Complement: 33 + 7.

Guns: 1 x Oerlikon 20mm/85 GAM-B01.

Radar: Navigation: Kelvin Hughes Type 1007, I band.

Sonar: Indra-Raytheon-Thomson-Marconi SQQ 32, HF.

Countermeasures: Minehunting: Kongsberg Minesniper systems.

Callsign: EBIG (EchoBravoIndiaGolf)

Homeport: Cartagena.

Similar units:

Spain M31 Segura
Spain M32 Sella
Spain M33 Tambre
Spain M34 Turia
Spain M35 Duero
