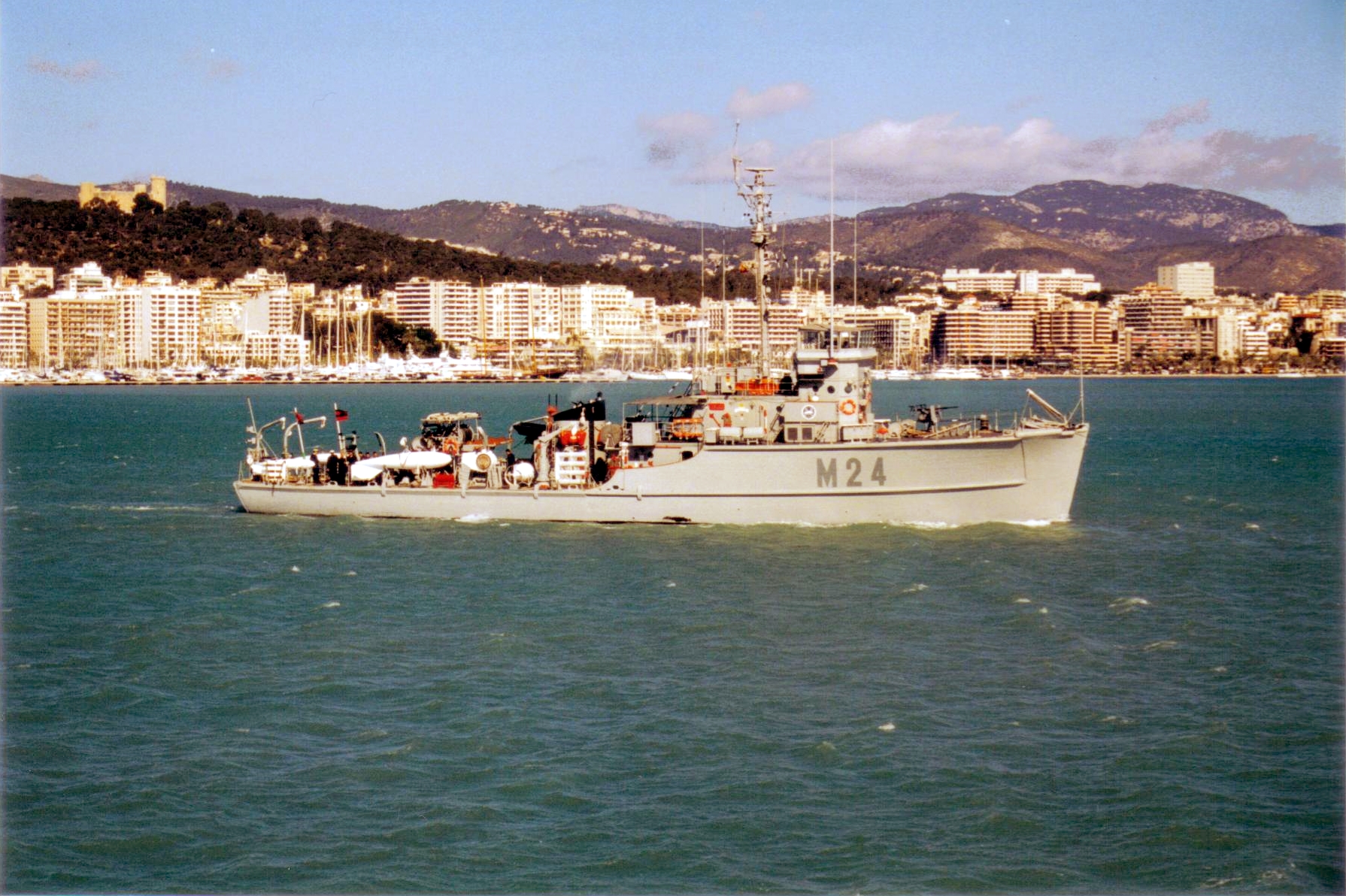

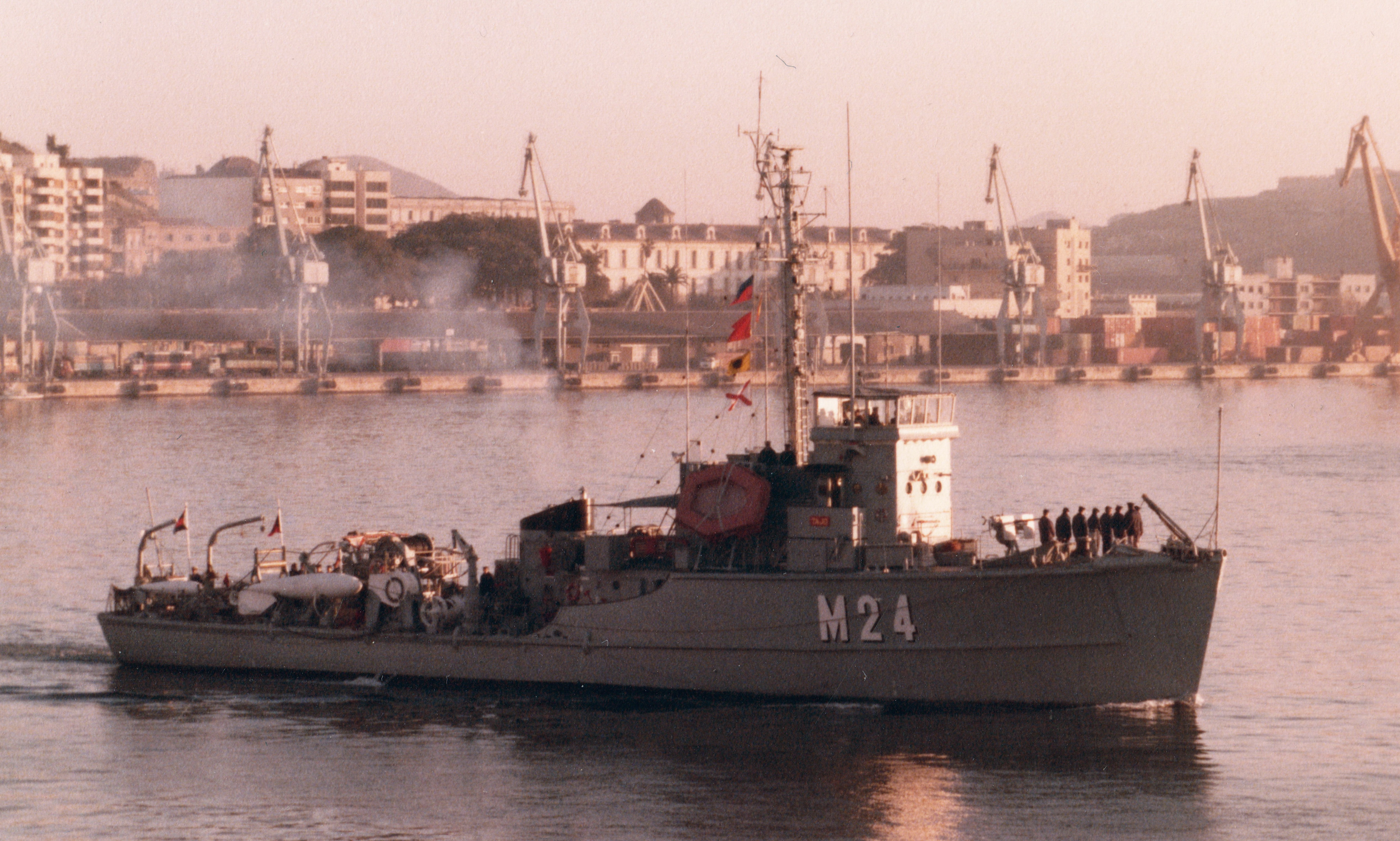

M-24 Tajo

M-24 Tajo

Country: Spain Spain

Class, [Type]: Adjutant, [MSC].

Builder: Tampa Marine Corporation, Florida, U.S.A.

Launch date: 01 May 1958.

Commission date: 09 July 1959.

Decommission date: 03 December 2001.

Draw
Draw by Draw by Antoni Casinos

Displacement ( tons ): 355 standard, 384 full load.

Dimensions ( metres ): 43,9 x 8,5 x 2,5

Main machinery: 2 x GM 8-268A diesels ( 880 hp ).

Speed ( knots ): 14.

Range ( miles ): 2.700 at 10 knots.

Complement: 39 ( 3 officers ).

Guns: 2 x Oerlikon 20mm ( double ).

Radar: Navigation: Decca TM 626 or RM 914, I band.

Sonar: UQS 1.

Callsign: EBIC (EchoBravoIndiaCharlie)

Comment: Wooden hull. This unit, along with others from its class, was transferred from the US Navy, where it served with code MSC-287. Originally numbered as M-30, then reclassified as M-24 in 1980.

Similar units:

Spain M21 Júcar
Spain M22 Ebro
Spain M25 Genil
Spain M26 Odiel
Spain M28 Miño
Spain P51 Nalón
Greece M60 Erato
Greece M61 Evniki
Norway M314 Alta
Belgium M908 Georges Truffaut
