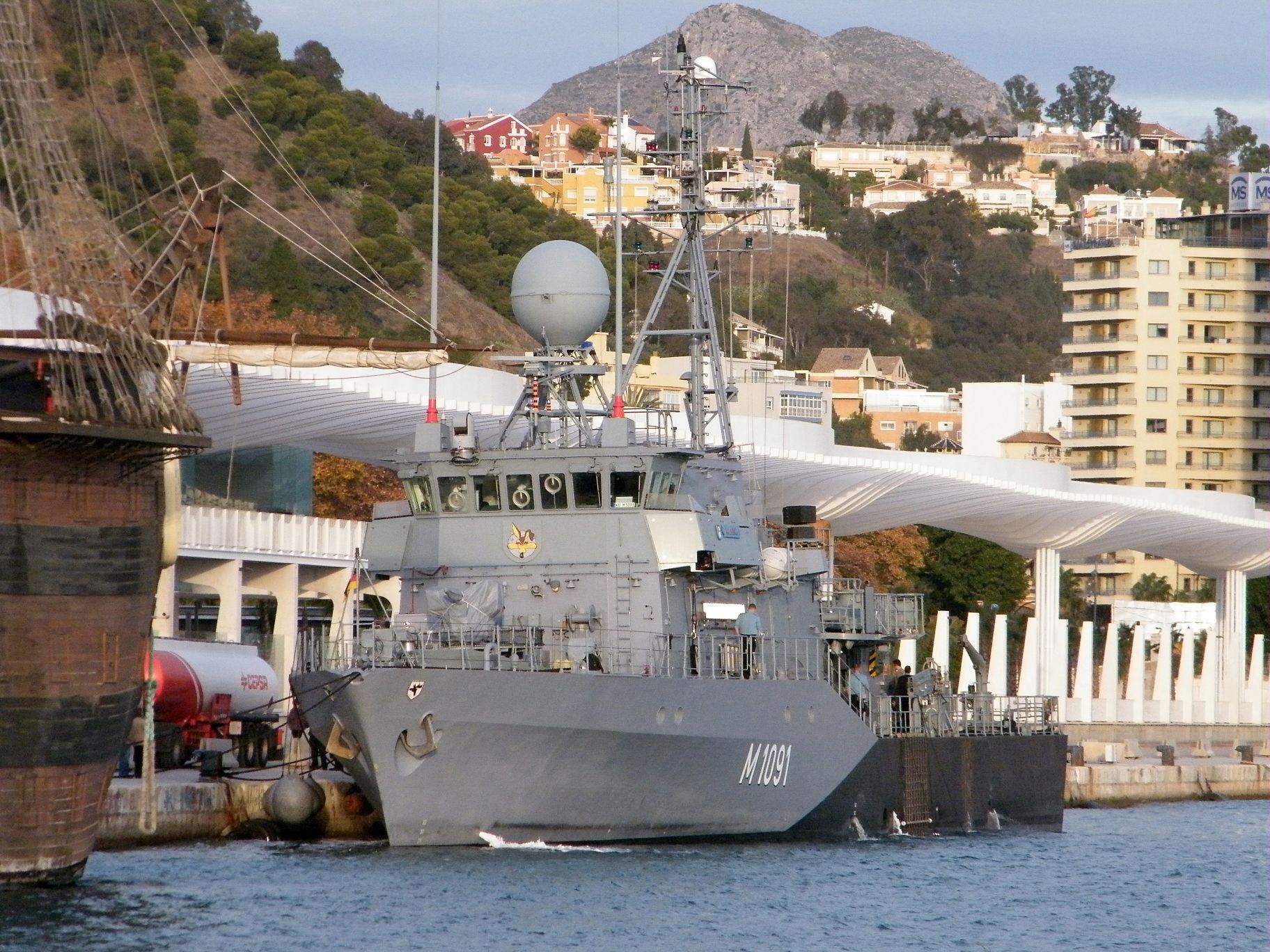

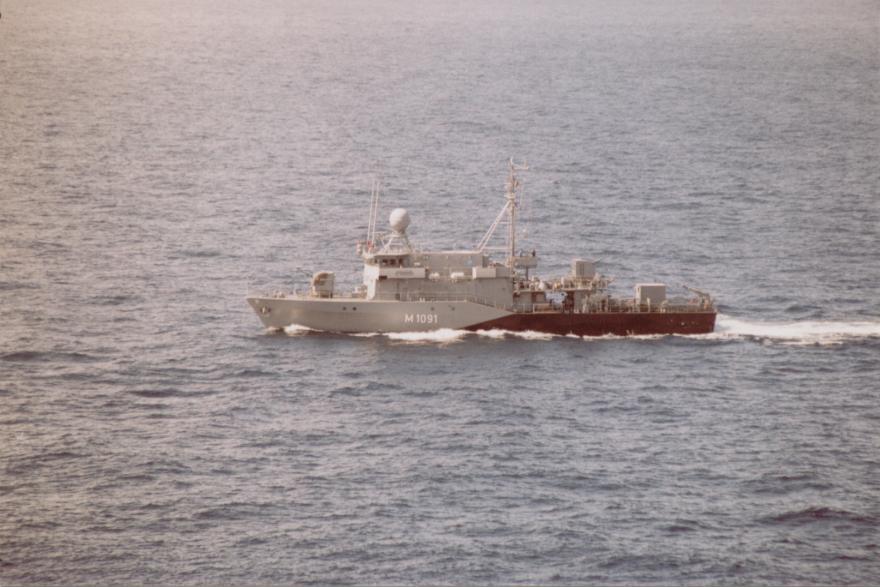

M-1091 Kulmbach

Country:  Germany

Class, [Type]: Type 333, [MHC].

Builder: Abeking & Rasmussen, Lemwerder, Germany.

Launch date: 15 June 1989.

Commission date: 24 April 1990.

Decommission date: 15 April 2011.

Displacement ( tons ): 620 full load.

Dimensions ( metres ): 54,4 x 9,2 x 2,5

Main machinery: 2 x MTU 16V 396 TB84-DB51L diesels ( 6.080 hp ).

Speed ( knots ): 18.

Complement: 37 ( 4 officers ).

Guns: 2 x Bofors 40mm/70.

Missiles:  SAM: 2 x quad launchers for STINGER missiles.

Mines: 60.

Radar: Fire Control: Signaal WM 20/2, I/J bands; Navigation: Raytheon SPS64, I band.

Sonar: Atlas Elektronik DSQS-11M, hull mounted.

Countermeasures: Decoys: 2 x Silver Dog chaff launchers; ESM: Thomson-CSF DR 2000, radar warning.

Callsign: DRFU ()

Homeport: Kiel.

Unit: 3rd Countermeasures Squadron.

Similar units:

 M1095 Überherrn
 M1096 Passau
 M1097 Laboe
 M1099 Herten
