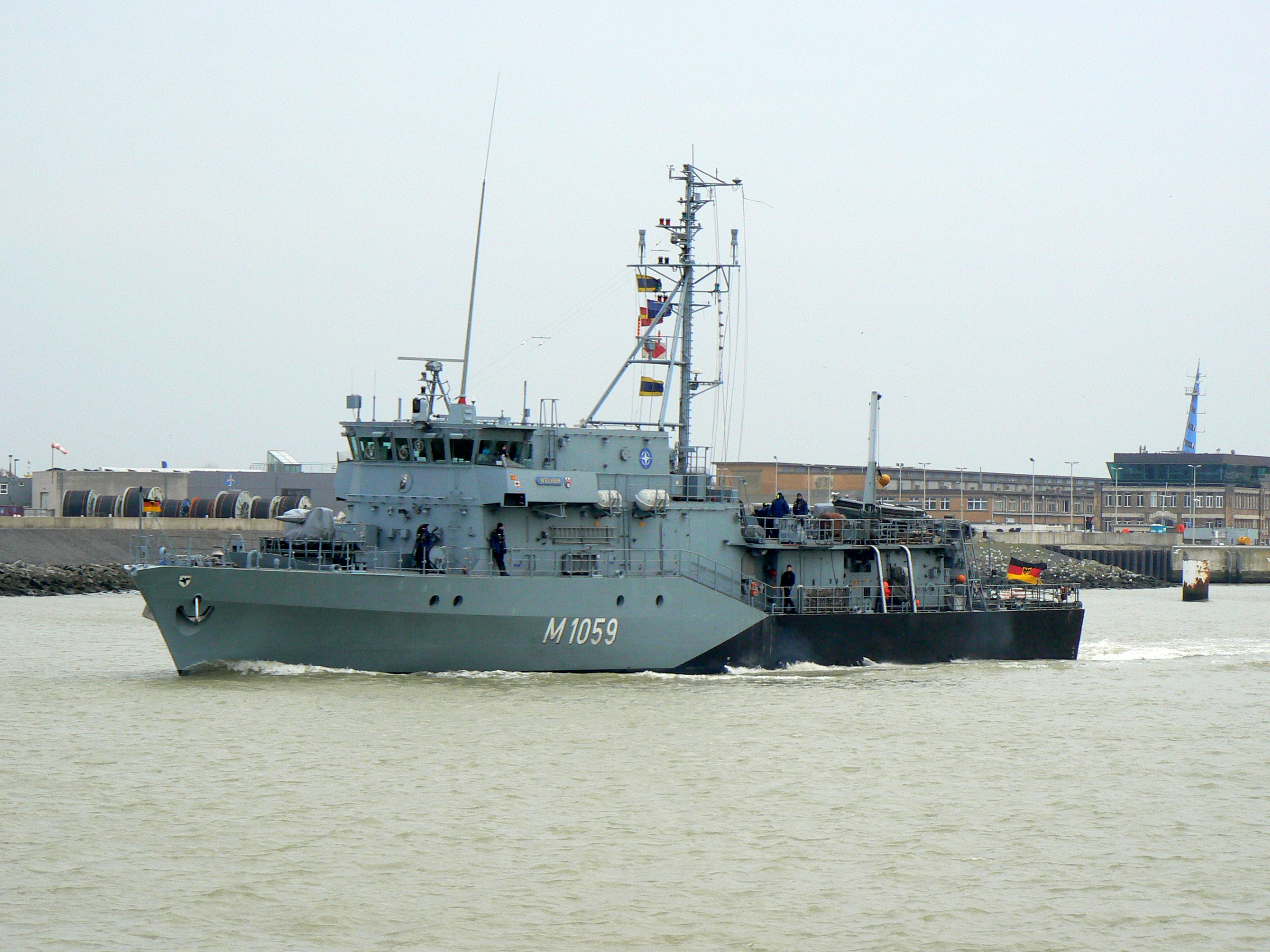

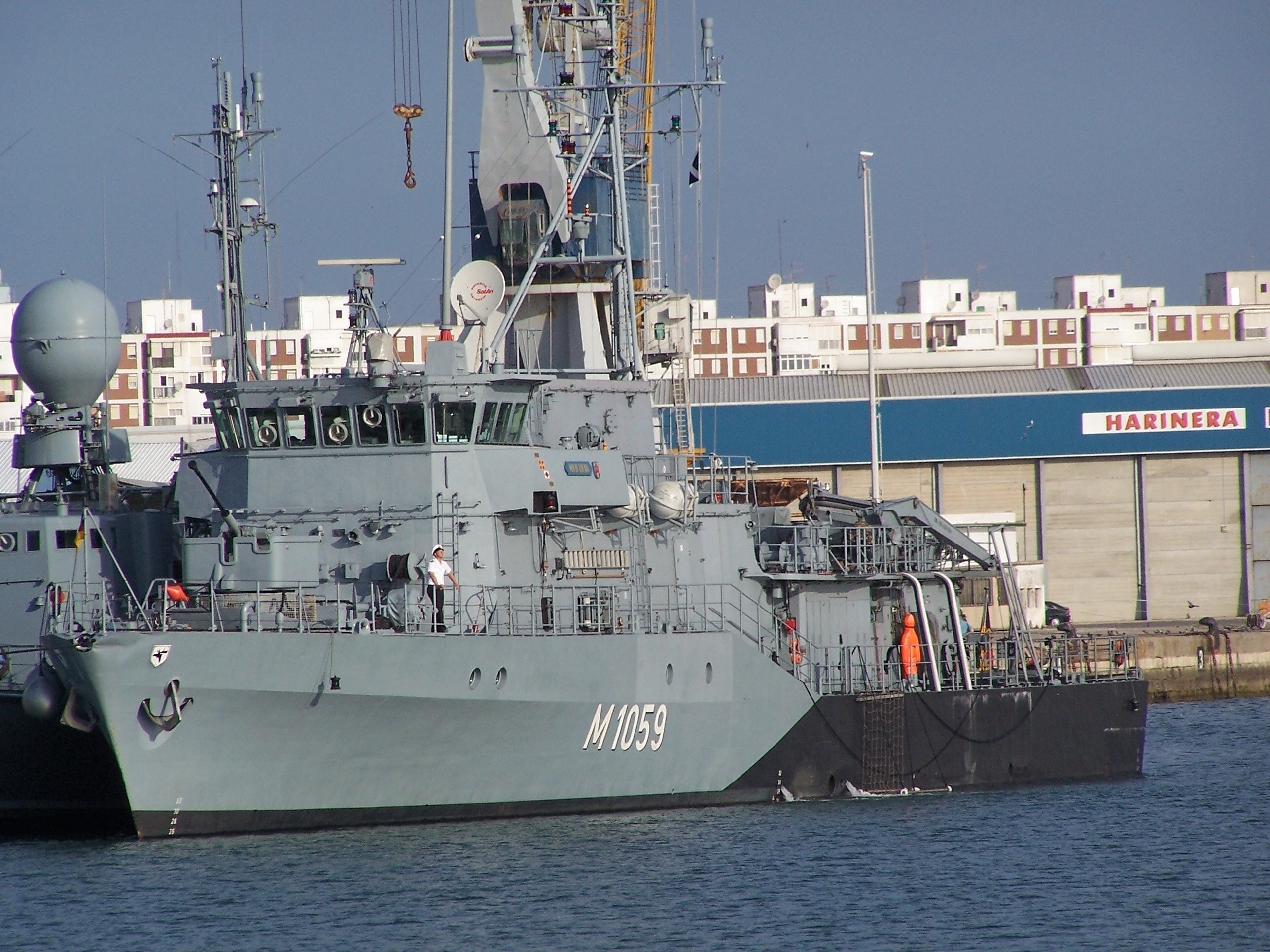

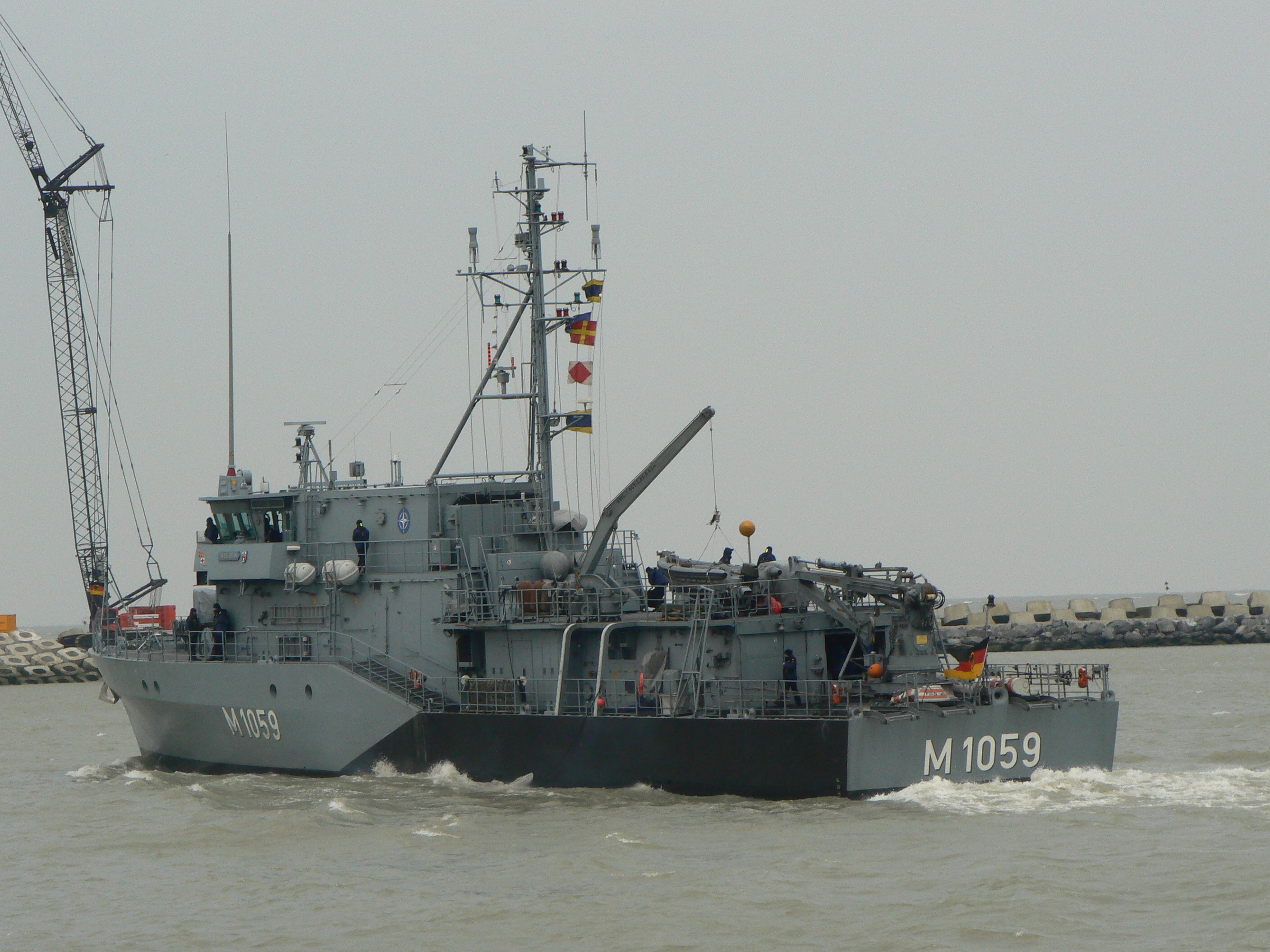

M-1059 Weilheim

M-1059 Weilheim

Country: Germany Germany

Class, [Type]: Type 332, [MHC].

Builder: Lürssen Werft, Vegesack, Germany.

Launch date: 26 February 1995.

Commission date: 03 December 1998.

Displacement ( tons ): 650 full load.

Dimensions ( metres ): 54,5 x 9,2 x 2,6

Main machinery: 2 x MTU 16V 396 TB84 diesels ( 5.550 hp ).

Speed ( knots ): 18.

Complement: 37 ( 5 officers ).

Guns: 1 x Bofors 40mm/70.

Missiles:  SAM: 2 x cuadruple launchers for STINGER missiles.

Radar: Navigation: 1 x Racal Decca 1226, I band.

Sonar: Atlas Elektronik DSQS-11M, hull mounted.

Countermeasures: Minehunting: 2 x Pinguin B3 ROV; Decoys: 2 x Barricade systems.

Callsign: DRFD (DeltaRomeoFoxtrotDelta)

Homeport: Kiel.

Unit: 3rd Countermeasures Squadron.

Similar units:

Germany M1058 Fulda
Germany M1060 Weiden
Germany M1061 Rottweil
Germany M1062 Sulzbach-Rosenberg
Germany M1063 Bad Bevensen
Germany M1064 Grömitz
Germany M1065 Dillingen
Germany M1067 Bad Rappenau
Germany M1068 Datteln
Germany M1069 Homburg
