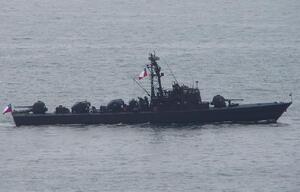

LM-34 Angamos

Country:  Chile

Class, [Type]: Sa’ar IV, [PTG].

Builder: Haifa, Israel.

Launch date: 19 February 1973.

Commission date: 29 July 1997.

Displacement ( tons ): 415, 450 full load.

Dimensions ( metres ): 58,1 x 7,6 x 2,4

Main machinery: 4 x MTU 16V538 TB82 diesels ( 14.000 hp ).

Speed ( knots ): 32.

Range ( miles ): 1.500 at 30 knots, 3.000 at 20 knots, 5.000 at 15 knots.

Complement: 52 ( 8 officers ).

Guns: 2 x 76mm/62 OTOBreda, 2 x 20mm/70 Oerlikon, 1 x 12,7mm M2.

Missiles:  SSM: 4 x Gabriel-II.

Radar: Search: 1 x Thales THD 1040 Neptune; Fire Control: 1 x Elta M-2221 (Orion RTN-10X).

Countermeasures: Decoys: 4 x ACDS decoy launchers; ECM/ESM: Elta MN-53 ( intercept ), Elta Rattler ( jammer ), Elta EA-2118 ( comms intercept ).

Comment: ex - Reshev ( Israel ).

Similar units:

 LM30 Casma
 LM31 Chipana
