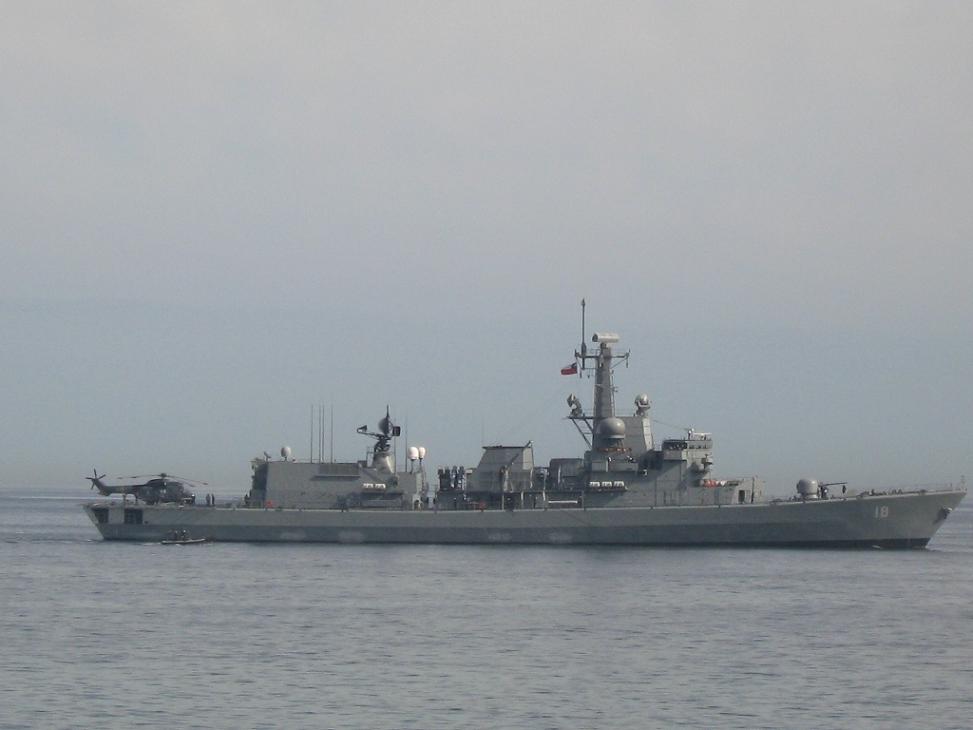

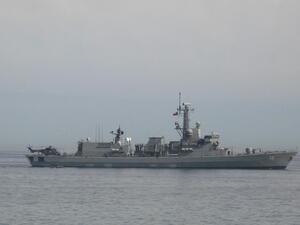

FF-18 Almirante Riveros

FF-18 Almirante Riveros

Country: Chile Chile

Class, [Type]: Karel Doorman, [FF].

Builder: Koninklijke Maatschappij De Shelde, Flushing, Netherlands.

Launch date: 09 December 1989.

Commission date: 18 April 2007.

Draw

Displacement ( tons ): 3.320 full load.

Dimensions ( metres ): 125,3 x 14,4 x 4,3

Main machinery: CODOG: 2 x RR Spey SM1C ( 33.800 hp ), 2 x Stork-Wärtsilä 12SW280 diesels ( 9.790 hp ).

Speed ( knots ): 30 ( Speys ), 21 diesels.

Range ( miles ): 5.000 at 18 knots.

Complement: 156 ( 16 officers ). Accomodation for 163.

Guns: 1 x OTO Melara Compact Mk100 76mm/62, 1 x Signaal SGE-30 Goalkeeper with GE 30mm, 2 x Oerlikon 20mm.

Missiles:  SSM: 8 x McDonnell Douglas Harpoon ( 2 quads ); SAM: 16 x Raytheon Sea Sparrow, from Mk48 Vertical Launchers.

Torpedoes: 4 x 324mm tubes Mk32 ( 2 twin ). Honeywell Mk46 Mod 5.

Radar: Air/Surface: Signaal SMART, 3D, F band; Signaal LW 08, D band; Navigation: Racal Decca 1226, I band; Fire control: 2 x Signaal STIR, I/J/K bands, 140km range.

Sonar: Signaal PHS36, hull mounted, active search and attack modes, medium frequency; Thomson Sintra Anaconda DSBV61, towed array, low frequency.

Countermeasures: Decoys: 2 x Loral Hycor SRBOC launchers, infrared flares and chaff; ESM/ECM: Argo APECS II ( includes AR 700 ESM ), intercept and jammers.

Helicopter: 1 x Super Puma AS-332 Cougar.

Comment: Ex - F830 Tjerk Hiddes (Netherlands).

Similar units:

Chile FF15 Almirante Blanco Encalada
Portugal F333 Bartolomeu Dias
Portugal F334 Francisco de Almeida
Netherlands F827 Karel Doorman
Netherlands F828 Van Speijk
Netherlands F829 Willem Van Der Zaan
Netherlands F831 Van Amstel
Netherlands F832 Abraham Van Der Hulst
Netherlands F833 Van Nes
Belgium F930 Leopold I
Belgium F931 Louise Marie
