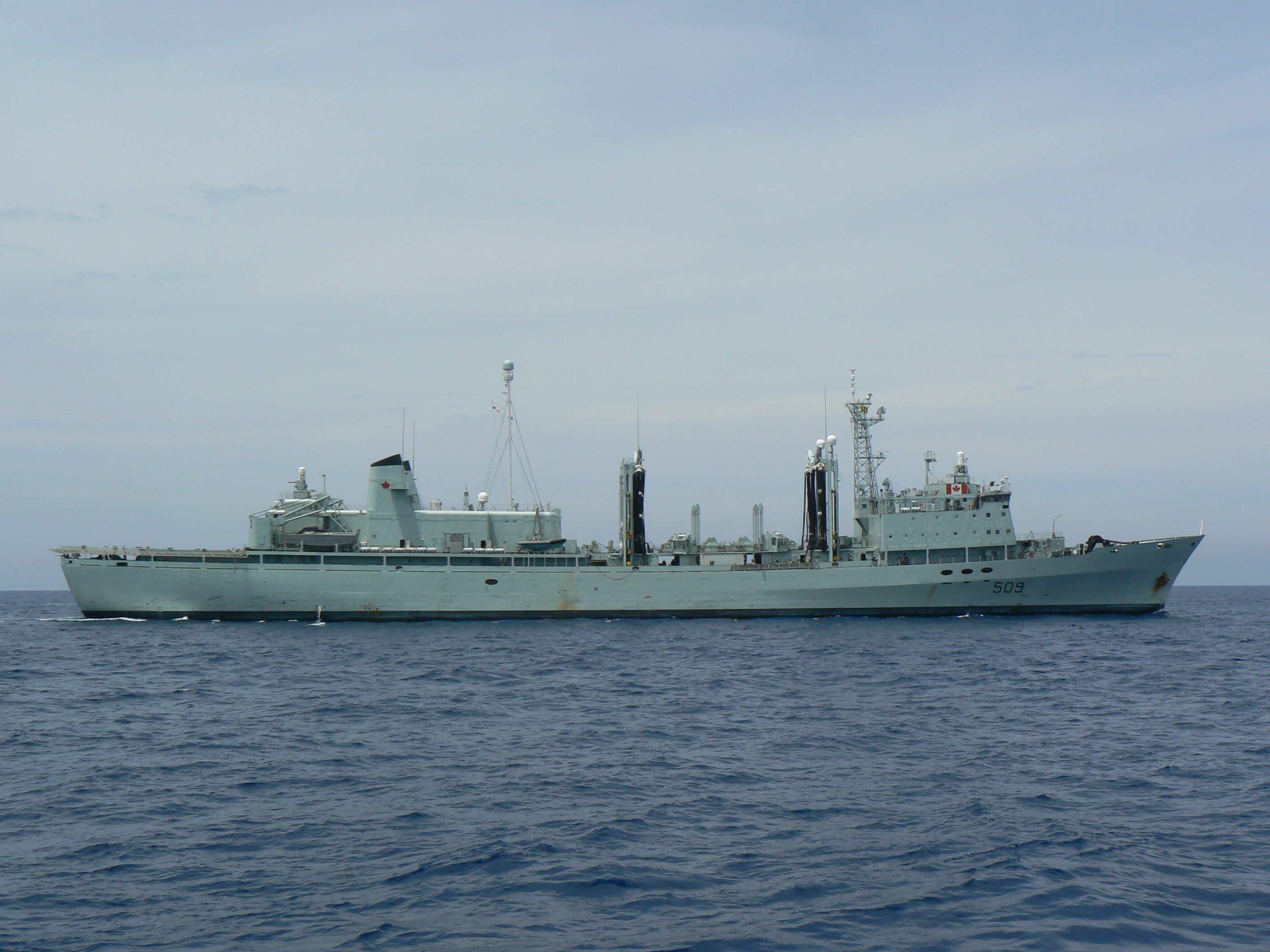

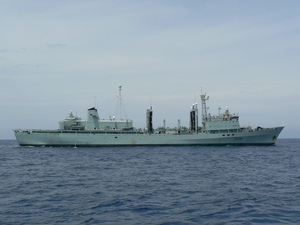

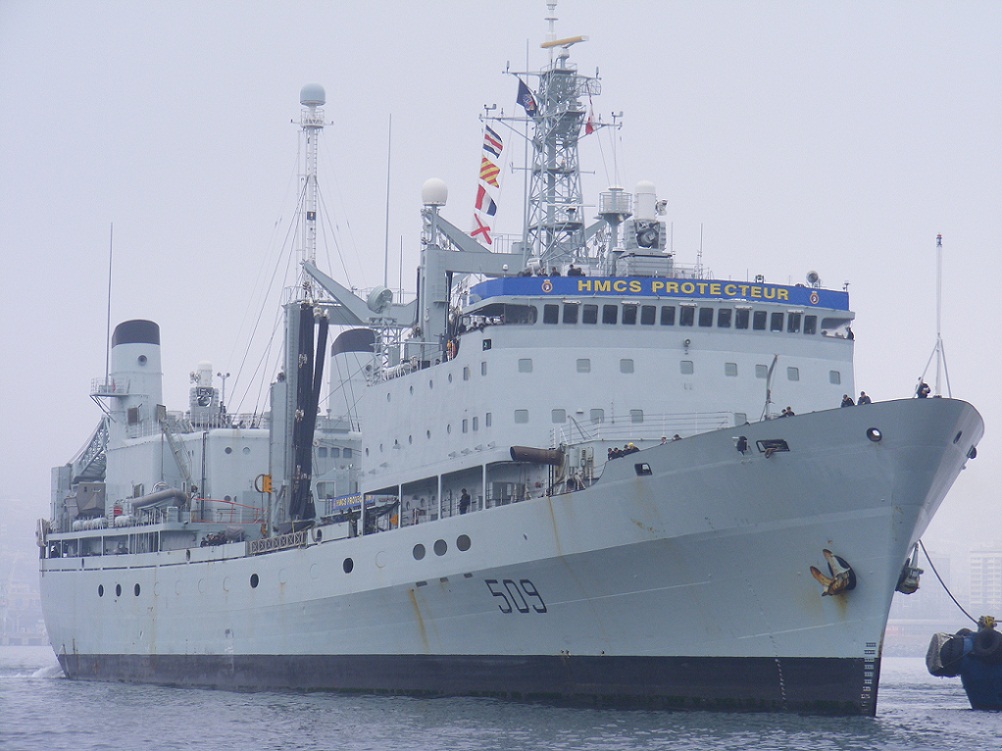

509 Protecteur

Country:  Canada

Class, [Type]: Protecteur, [AOR].

Builder: St. John SB & DD, St. John, Canada.

Launch date: 18 July 1968.

Commission date: 30 August 1969.

Decommission date: 14 May 2015.

Displacement ( tons ): 24.700 full load.

Dimensions ( metres ): 172 x 23,16 x 9,15

Main machinery: 1 x 21.000 hp.

Speed ( knots ): 21.

Range ( miles ): 4.100 at 20 knots, 7.500 at 11.5 knots.

Complement: 227 ( 15 officers ).

Guns: 2 x GE/GD Vulcan Phalanx Mk15 Mod. 0 Block I CIWS 20mm, 6 x 12,7mm.

Military lift: Cargo capacity: 13.250 tons total, with 12.000 tons distillate fuel, 600 tons diesel oil, 400 tons jet fuel, frozen and dry foods, spare parts, munitions.

Radar: Navigation: 1 x Decca TM 1629, 1 x Decca TM 969.

Countermeasures: Decoys: 2 x 6-round Plessey Shield; SLQ-25 Nixie towed torpedo decoy; EW: SLQ-504 (Racal Kestrel Type 242) intercept; Southwest SRD-502 (Telegon-4) HFD/F.

Helicopter: 3 x CH-124A Sea King.

Callsign: CYTV ()

Comment: Carries four LCVPs.

Homeport: Esquimalt.

Similar units:

 510 Preserver
